二维二硫化钨基乙二醇纳米流体:稳定性、热导率和流变特性

Two-Dimensional Tungsten Disulfide-Based Ethylene Glycol Nanofluids: Stability, Thermal Conductivity, and Rheological Properties.

作者信息

Shah Syed Nadeem Abbas, Shahabuddin Syed, Mohd Sabri Mohd Faizul, Mohd Salleh Mohd Faiz, Mohd Said Suhana, Khedher Khaled Mohamed, Sridewi Nanthini

机构信息

Department of Mechanical Engineering, Faculty of Engineering, University of Malaya, Kuala Lumpur 50603, Malaysia.

Department of Mechanical Engineering (Main Campus Lahore), University of Engineering and Technology, Lahore 54890, Pakistan.

出版信息

Nanomaterials (Basel). 2020 Jul 9;10(7):1340. doi: 10.3390/nano10071340.


DOI:10.3390/nano10071340
PMID:32659972
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC7408399/
Abstract

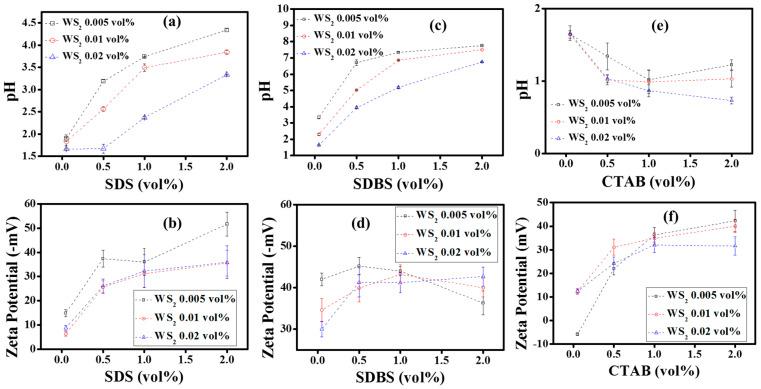

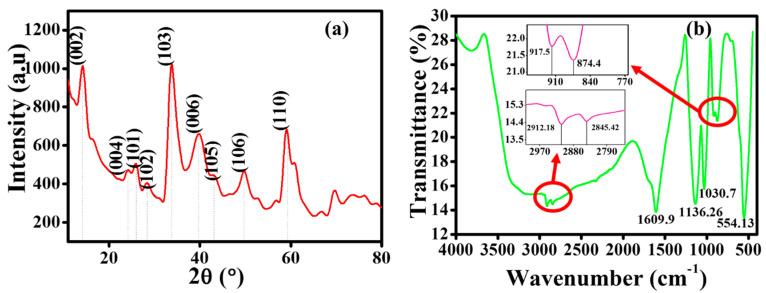

Developing stable nanofluids and improving their thermo-physical properties are highly important in heat transfer applications. In the present work, the stability, thermal conductivity, and rheological properties of tungsten disulphide (WS) nanoparticles (NPs) with ethylene glycol (EG) were profoundly examined using a particle size analyzer, zeta-sizer, thermal property analyzer, rheometer, and pH measuring system. WS NPs were characterized by various techniques, such as XRD (X-Ray Diffraction), FTIR (Fourier Transform Infrared Spectroscopy), FESEM (Field emission scanning electron microscopy), and high-resolution transmission electron microscopy (HRTEM). The nanofluids were obtained with the two-step method by employing three volume concentrations (0.005%, 0.01%, and 0.02%) of WS. The influence of different surfactants (Sodium dodecyl sulphate (SDS), Sodium dodecylbenzenesulfonate (SDBS), Cetyltrimethylammonium bromide (CTAB)) with various volume concentrations (0.05-2%) on the measured properties has also been evaluated. Pristine WS/EG nanofluids exhibit low zeta potential values, i.e., -7.9 mV, -9.3 mV, and -5 mV, corresponding to 0.005%, 0.01%, and 0.02% nanofluid, respectively. However, the zeta potential surpassed the threshold (±30 mV) and the maximum values reached of -52 mV, -45 mV, and 42 mV for SDS, SDBS, and CTAB-containing nanofluids. This showed the successful adsorption of surfactants onto WS, which was also observed through the increased agglomerate size of up to 1720 nm. Concurrently, particularly for 0.05% SDS with 0.005% WS, thermal conductivity was enhanced by up to 4.5%, with a corresponding decrease in viscosity of up to 10.5% in a temperature range of (25-70 °C), as compared to EG. Conversely, the viscoelastic analysis has indicated considerable yield stress due to the presence of surfactants, while the pristine nanofluids exhibited enhanced fluidity over the entire tested deformation range. The shear flow behavior showed a transition from a non-Newtonian to a Newtonian fluid at a low shear rate of 10 s. Besides this, the temperature sweep analysis has shown a viscosity reduction in a range of temperatures (25-70 °C), with an indication of a critical temperature limit. However, owing to an anomalous reduction in the dynamic viscosity of up to 10.5% and an enhancement in the thermal conductivity of up to 6.9%, WS/EG nanofluids could be considered as a potential candidate for heat transfer applications.

摘要

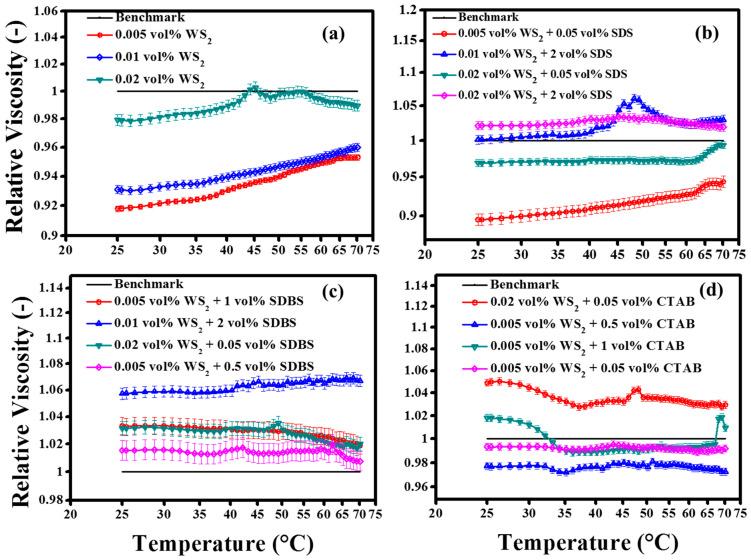

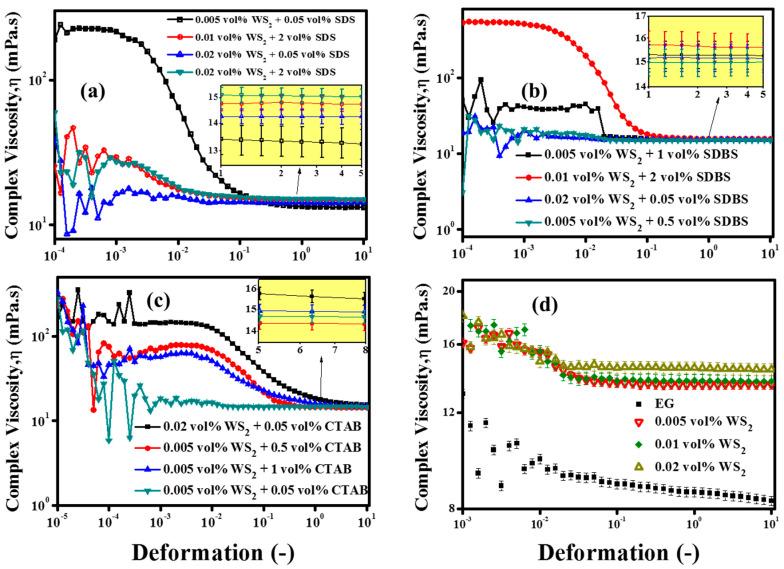

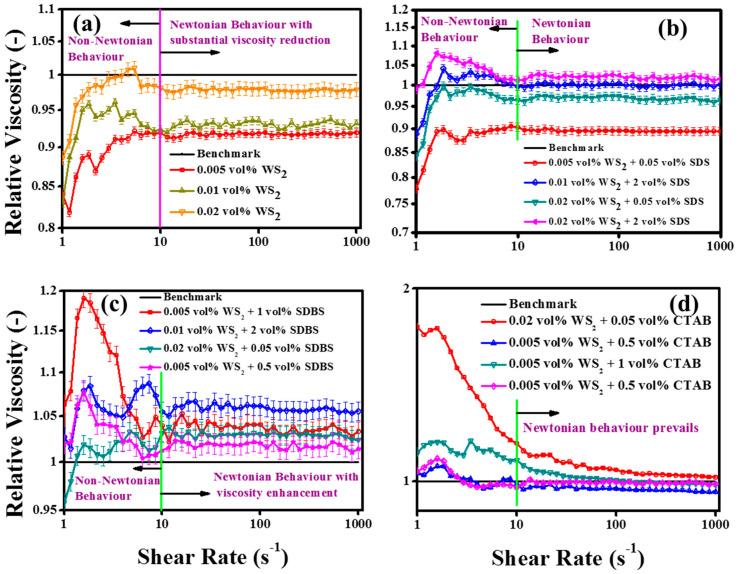

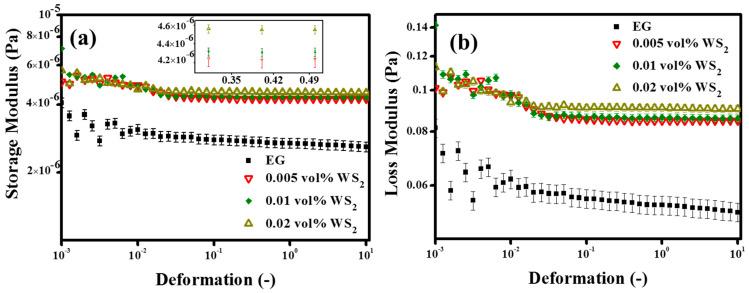

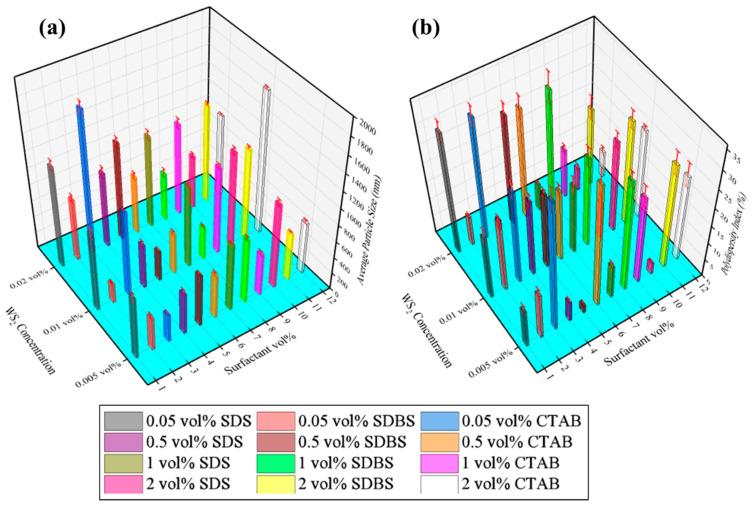

开发稳定的纳米流体并改善其热物理性质在传热应用中非常重要。在本工作中,使用粒度分析仪、zeta电位仪、热性能分析仪、流变仪和pH测量系统,对二硫化钨(WS)纳米颗粒(NPs)与乙二醇(EG)的稳定性、热导率和流变性质进行了深入研究。WS NPs通过多种技术进行表征,如XRD(X射线衍射)、FTIR(傅里叶变换红外光谱)、FESEM(场发射扫描电子显微镜)和高分辨率透射电子显微镜(HRTEM)。采用两步法,使用三种体积浓度(0.005%、0.01%和0.02%)的WS获得纳米流体。还评估了不同表面活性剂(十二烷基硫酸钠(SDS)、十二烷基苯磺酸钠(SDBS)、十六烷基三甲基溴化铵(CTAB))在不同体积浓度(0.05 - 2%)下对测量性质的影响。原始的WS/EG纳米流体表现出较低的zeta电位值,即分别对应0.005%、0.01%和0.02%纳米流体的 -7.9 mV、 -9.3 mV和 -5 mV。然而,对于含SDS、SDBS和CTAB的纳米流体,zeta电位超过阈值(±30 mV),最大值分别达到 -52 mV、 -45 mV和42 mV。这表明表面活性剂成功吸附到WS上,这也通过团聚体尺寸增大到1720 nm观察到。同时,特别是对于含0.05% SDS和0.005% WS的情况,与EG相比,在(25 - 70 °C)温度范围内,热导率提高了高达4.5%,粘度相应降低了高达10.5%。相反,粘弹性分析表明由于表面活性剂的存在存在相当大的屈服应力,而原始纳米流体在整个测试变形范围内表现出增强的流动性。剪切流动行为在低剪切速率10 s时显示从非牛顿流体转变为牛顿流体。除此之外,温度扫描分析表明在一系列温度(25 - 70 °C)下粘度降低,表明存在临界温度极限。然而,由于动态粘度异常降低高达10.5%且热导率提高高达6.9%,WS/EG纳米流体可被视为传热应用的潜在候选者。
