Applied Biotechnology and Genetic Engineering Lab, Department of Biological Sciences, International Islamic University, Islamabad, Pakistan.
Department of Botany, University of Poonch, Rawalakot (UPR), Rawalakot, Azad Jammu and Kashmir, Pakistan.
PLoS One. 2020 Dec 1;15(12):e0242829. doi: 10.1371/journal.pone.0242829. eCollection 2020.

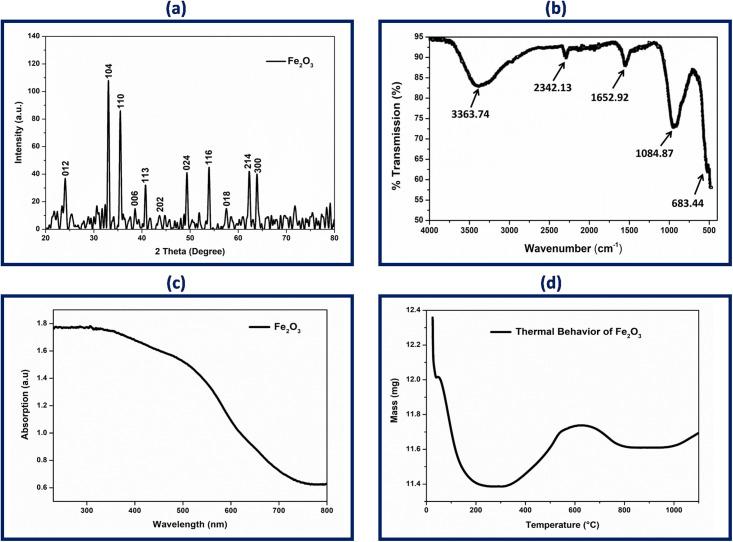

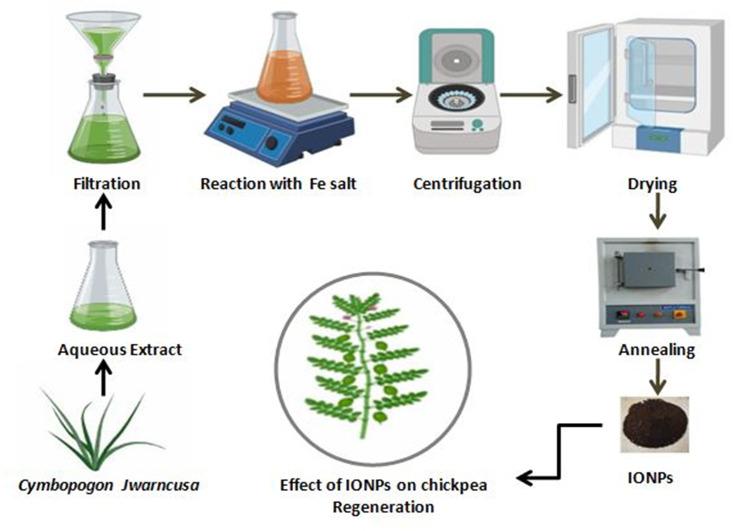

This study is the first report on the biosynthesized iron oxide nanoparticles (IONPs) which mediate in-vitro callus induction and shoot regeneration in economically important recalcitrant chickpea crop (Cicer arietinum L.). Here, we used leaf extract of Cymbopogon jwarancusa for the synthesis of IONPs in order to achieve a better biocompatibility. The bioactive compounds in C. jwarancusa leaf extract served as both reducing and capping agents in the fabrication process of IONPs. Field emission scanning electron microscopy (FE-SEM) revealed rods like surface morphology of IONPs with an average diameter of 50±0.2 nm. Energy-dispersive X-ray spectroscopy (EDS) depicted formation of pure IONPs with 69.84% Fe and 30.16% O2. X-ray diffractometry (XRD) and attenuated total reflectance-fourier transform infrared (ATR-FTIR) validate the crystalline structure, chemical analysis detect the presence of various biomolecular fingerprints in the as synthesized IONPs. UV-visible absorption spectroscopy depicts activity of IONPs under visible light. Thermo-gravimetric analysis (TGA) displayed thermal loss of organic capping around 500°C and confirmed their stabilization. The biosynthesized IONPs revealed promising results in callus induction, shoot regeneration and root induction of chickpea plants. Both chickpea varieties Punjab-Noor 09 and Bittle-98 explants, Embryo axes (EA) and Embryo axes plus adjacent part of cotyledon (EXC) demonstrated dose-dependent response. Among all explants, EXC of Punjab-Noor variety showed the highest callogenesis (96%) and shoot regeneration frequency (88%), while root induction frequency was also increased to 83%. Iron content was quantified in regenerated chickpea varieties through inductively coupled plasma-optical emission spectrometry. The quantity of iron is significantly increased in Punjab-Noor regenerated plants (4.88 mg/g) as compare to control treated plants (2.42 mg/g). We found that IONPs enhance chickpea growth pattern and keep regenerated plantlets infection free by providing an optimum environment for rapid growth and development. Thus, IONPs synthesized through green process can be utilized in tissue culture studies in other important recalcitrant legumes crops.

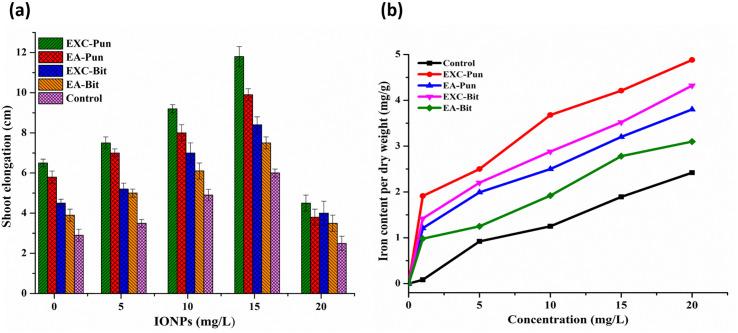

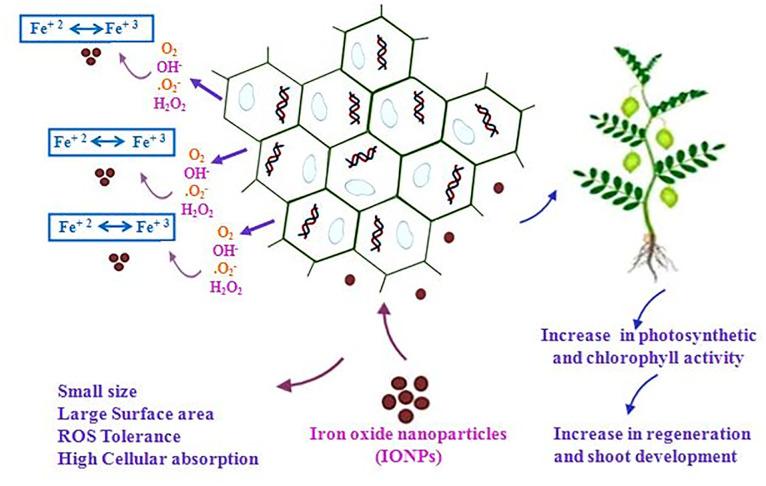

这项研究首次报道了生物合成的氧化铁纳米粒子(IONPs)可介导经济上重要的顽拗性鹰嘴豆作物(Cicer arietinum L.)的体外愈伤组织诱导和芽再生。在这里,我们使用香茅草(Cymbopogon jwarancusa)的叶提取物来合成 IONPs,以实现更好的生物相容性。香茅草叶提取物中的生物活性化合物在 IONPs 的制造过程中既起到了还原剂的作用,也起到了稳定剂的作用。场发射扫描电子显微镜(FE-SEM)显示 IONPs 具有棒状表面形态,平均直径为 50±0.2nm。能量色散 X 射线能谱(EDS)描绘了纯 IONPs 的形成,其中 Fe 占 69.84%,O2 占 30.16%。X 射线衍射(XRD)和衰减全反射-傅里叶变换红外(ATR-FTIR)验证了晶体结构,化学分析检测到合成的 IONPs 中存在各种生物分子指纹。紫外可见吸收光谱显示 IONPs 在可见光下的活性。热重分析(TGA)显示 500°C 左右有机稳定剂的热损失,证实了它们的稳定性。生物合成的 IONPs 对鹰嘴豆植物的愈伤组织诱导、芽再生和根诱导表现出了有希望的结果。Punjab-Noor 09 和 Bittle-98 两个鹰嘴豆品种的外植体,胚轴(EA)和胚轴加邻近子叶部分(EXC)都表现出了剂量依赖性的反应。在所有外植体中,Punjab-Noor 品种的 EXC 表现出最高的愈伤组织发生(96%)和芽再生频率(88%),同时根诱导频率也增加到 83%。通过电感耦合等离子体-光发射光谱法对再生鹰嘴豆品种进行了铁含量的定量分析。与对照处理的植物(2.42mg/g)相比,Punjab-Noor 再生植株中的铁含量显著增加(4.88mg/g)。我们发现,IONPs 通过为快速生长和发育提供最佳环境,增强了鹰嘴豆的生长模式,并使再生植物保持无感染状态。因此,通过绿色工艺合成的 IONPs 可用于其他重要顽拗性豆科作物的组织培养研究。
