使用电化学阻抗谱对 3D 和 2D/3D 混合钙钛矿太阳能电池的长期稳定性进行分析。

Long-Term Stability Analysis of 3D and 2D/3D Hybrid Perovskite Solar Cells Using Electrochemical Impedance Spectroscopy.

机构信息

Center for Advanced Materials (CAM), Qatar University, Doha 2713, Qatar.

Qatar University Young Scientists Center (YSC), Qatar University, Doha 2713, Qatar.

出版信息

Molecules. 2020 Dec 8;25(24):5794. doi: 10.3390/molecules25245794.

Abstract

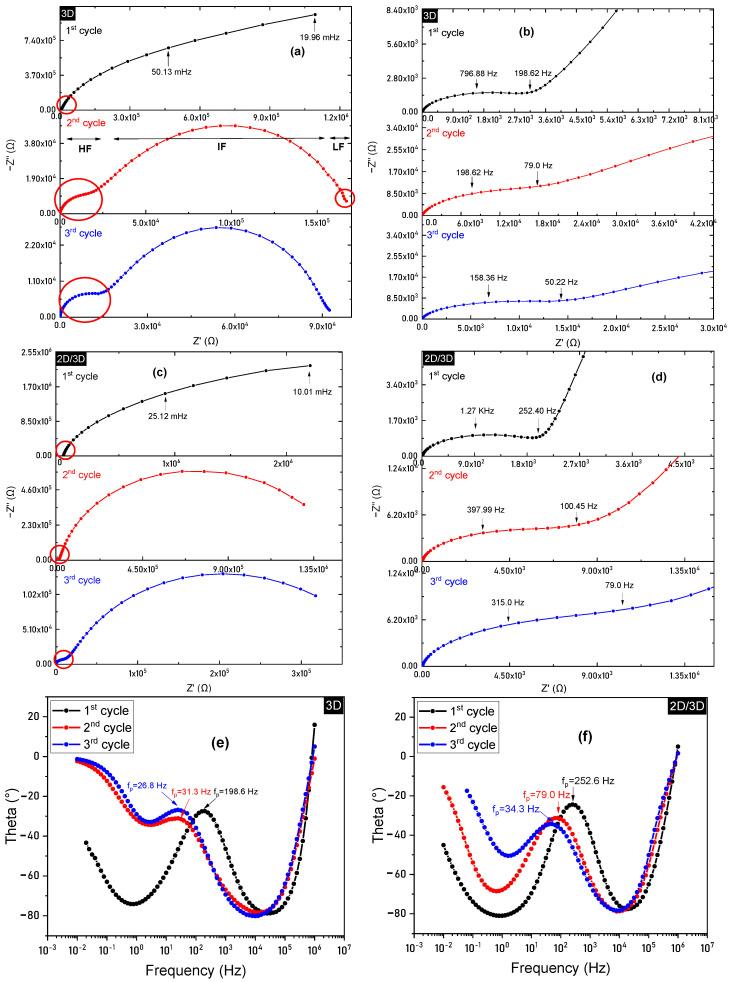

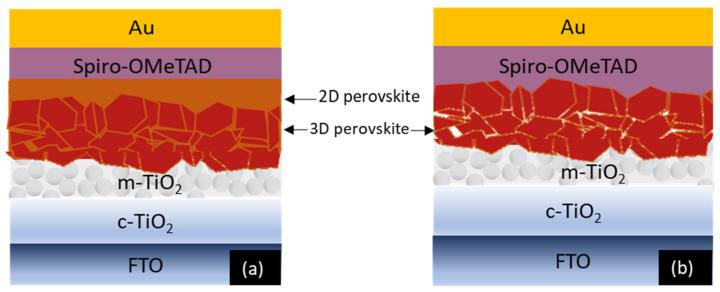

Despite the remarkable progress in perovskite solar cells (PSCs), their instability and rapid degradation over time still restrict their commercialization. A 2D capping layer has been proved to overcome the stability issues; however, an in-depth understanding of the complex degradation processes over a prolonged time at PSC interfaces is crucial for improving their stability. In the current work, we investigated the stability of a triple cation 3D ([(FAMA)Cs]Pb(IBr)) and 2D/3D PSC fabricated by a layer-by-layer deposition technique (PEAI-based 2D layer over triple cation 3D perovskite) using a state-of-art characterization technique: electrochemical impedance spectroscopy (EIS). A long-term stability test over 24 months was performed on the 3D and 2D/3D PSCs with an initial PCE of 18.87% and 20.21%, respectively, to suggest a more practical scenario. The current-voltage (J-V) and EIS results showed degradation in both the solar cell types; however, a slower degradation rate was observed in 2D/3D PSCs. Finally, the quantitative analysis of the key EIS parameters affected by the degradation in 3D and 2D/3D PSCs were discussed.

摘要

尽管钙钛矿太阳能电池 (PSCs) 取得了显著的进展,但它们的不稳定性和随时间快速降解仍然限制了它们的商业化。二维 (2D) 盖帽层已被证明可以克服稳定性问题;然而,深入了解长时间在 PSC 界面上的复杂降解过程对于提高其稳定性至关重要。在当前工作中,我们使用最先进的表征技术——电化学阻抗谱 (EIS),研究了通过层层沉积技术 (PEAI 二维层覆盖三阳离子 3D 钙钛矿) 制备的三重阳离子 3D([(FAMA)Cs]Pb(IBr))和 2D/3D PSC 的稳定性。对初始光电转换效率 (PCE) 分别为 18.87%和 20.21%的 3D 和 2D/3D PSC 进行了长达 24 个月的长期稳定性测试,以模拟更实际的情况。电流-电压 (J-V) 和 EIS 结果表明两种类型的太阳能电池都存在降解现象;然而,在 2D/3D PSC 中观察到降解速度较慢。最后,讨论了 3D 和 2D/3D PSC 降解对关键 EIS 参数的定量分析。
