Jakovac Marko, Klaser Teodoro, Radatović Borna, Skoko Željko, Pavić Luka, Žic Mark
Department of Prosthodontics, School of Dental Medicine, University Zagreb, 10000 Zagreb, Croatia.
Department of Physics, Faculty of Science, University of Zagreb, 10000 Zagreb, Croatia.
Materials (Basel). 2020 Dec 10;13(24):5632. doi: 10.3390/ma13245632.

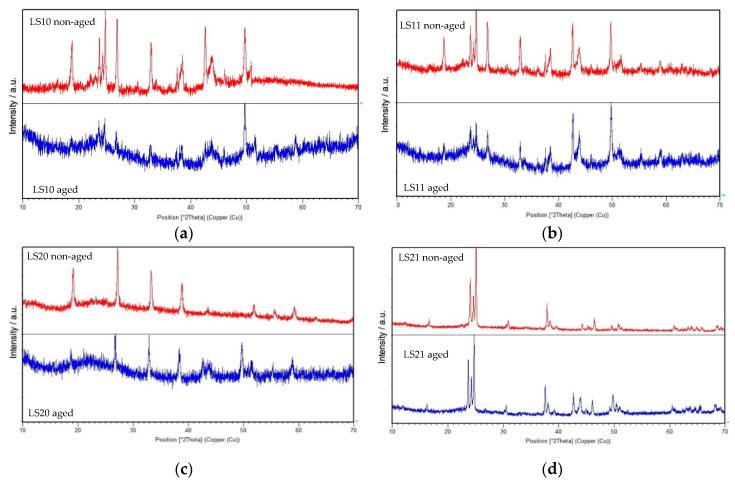

In this study, two different dental ceramics, based on zirconia-reinforced lithium-silicate (LS1) glass-ceramics (Celtra Duo, Dentsply Sirona, Bensheim, Germany) and lithium disilicate (LS2) ceramics (IPS e.max CAD, Ivoclar, Vivadent, Schaan, Liechtenstein) were examined. They were tested prior to and after the crystallization by sintering in the dental furnace. Additionally, the impact of ageing on ceramic degradability was investigated by immersing it in 4% acetic acid at 80 °C for 16 h. The degradability of the materials was monitored by Impedance Spectroscopy (IS), X-Ray Powder Diffraction (XRPD), and Field Emission Scanning Electron Microscope (FE-SEM) techniques. It was detected that LS2 (vs. LS1) samples had a lower conductivity, which can be explained by reduced portions of structural defects. XRPD analyses also showed that the ageing increased the portion of defects in ceramics, which facilitated the ion diffusion and degradation of samples. To summarize, this study suggests that the non-destructive IS technique can be employed to probe the ageing properties of the investigated LS1 and LS2 ceramics materials.
在本研究中,对两种不同的牙科陶瓷进行了检测,一种是基于氧化锆增强锂硅酸盐(LS1)的微晶玻璃(Celtra Duo,德国登士柏西诺德公司,本斯海姆),另一种是二硅酸锂(LS2)陶瓷(IPS e.max CAD,义获嘉伟瓦登特公司,列支敦士登公国沙恩)。在牙科熔炉中烧结结晶之前和之后对它们进行了测试。此外,通过将陶瓷浸泡在80℃的4%乙酸中16小时,研究了老化对陶瓷降解性的影响。通过阻抗谱(IS)、X射线粉末衍射(XRPD)和场发射扫描电子显微镜(FE-SEM)技术监测材料的降解性。检测发现,LS2(与LS1相比)样品具有较低的电导率,这可以通过结构缺陷部分的减少来解释。XRPD分析还表明,老化增加了陶瓷中的缺陷部分,这促进了样品的离子扩散和降解。总之,本研究表明,无损IS技术可用于探测所研究的LS1和LS2陶瓷材料的老化特性。
