Swept-Source-Based Chromatic Confocal Microscopy.

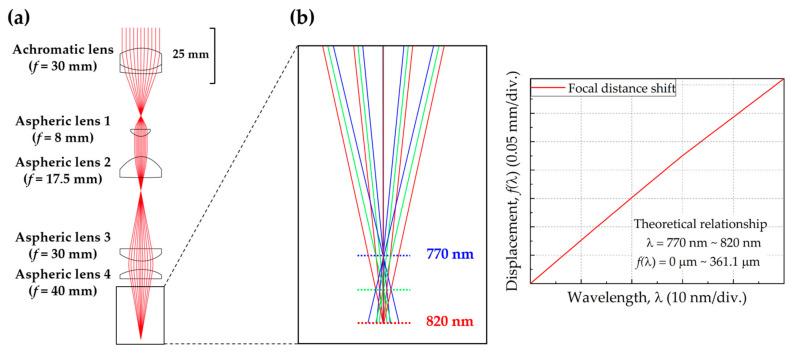

Chromatic confocal microscopy (CCM) has been intensively developed because it can exhibit effective focal position scanning based on the axial chromatic aberration of broadband light reflected from a target. To improve the imaging speed of three-dimensional (3D) surface profiling, we have proposed the novel concept of swept-source-based CCM (SS-CCM) and investigated the usefulness of the corresponding imaging system. Compared to conventional CCM based on a broadband light source and a spectrometer, a swept-source in the proposed SS-CCM generates light with a narrower linewidth for higher intensity, and a single photodetector employed in the system exhibits a fast and sensitive response by immediately obtaining spectrally encoded depth from a chromatic dispersive lens array. Results of the experiments conducted to test the proposed SS-CCM system indicate that the system exhibits an axial chromatic focal distance range of approximately 360 μm for the 770-820 nm swept wavelength range. Moreover, high-speed surface profiling images of a cover glass and coin were successfully obtained with a short measurement time of 5 ms at a single position.
