Wang Xiao, Rakstys Kasparas, Jack Kevin, Jin Hui, Lai Jonathan, Li Hui, Ranasinghe Chandana Sampath Kumara, Saghaei Jaber, Zhang Guanran, Burn Paul L, Gentle Ian R, Shaw Paul E
Centre for Organic Photonics & Electronics, The University of Queensland, Brisbane, QLD, 4072, Australia.
Centre for Microscopy and Microanalysis, The University of Queensland, Brisbane, QLD, 4072, Australia.
Nat Commun. 2021 Jan 4;12(1):52. doi: 10.1038/s41467-020-20272-3.

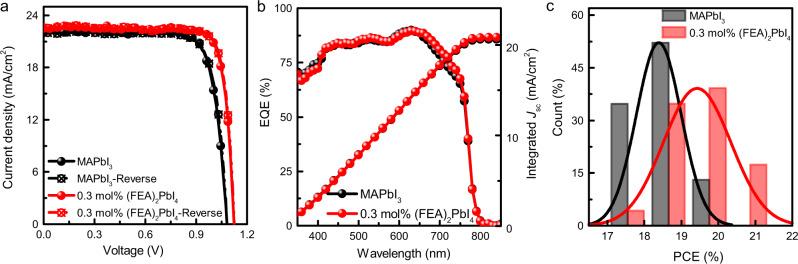

Efficient and stable perovskite solar cells with a simple active layer are desirable for manufacturing. Three-dimensional perovskite solar cells are most efficient but need to have improved environmental stability. Inclusion of larger ammonium salts has led to a trade-off between improved stability and efficiency, which is attributed to the perovskite films containing a two-dimensional component. Here, we show that addition of 0.3 mole percent of a fluorinated lead salt into the three-dimensional methylammonium lead iodide perovskite enables low temperature fabrication of simple inverted solar cells with a maximum power conversion efficiency of 21.1%. The perovskite layer has no detectable two-dimensional component at salt concentrations of up to 5 mole percent. The high concentration of fluorinated material found at the film-air interface provides greater hydrophobicity, increased size and orientation of the surface perovskite crystals, and unencapsulated devices with increased stability to high humidity.
高效且稳定的、具有简单活性层的钙钛矿太阳能电池对于制造来说是很理想的。三维钙钛矿太阳能电池效率最高,但需要提高环境稳定性。加入较大的铵盐导致在稳定性提高和效率之间进行权衡,这归因于含有二维成分的钙钛矿薄膜。在此,我们表明,向三维甲基碘化铅钙钛矿中添加0.3摩尔百分比的氟化铅盐能够在低温下制造简单的倒置太阳能电池,其最大功率转换效率为21.1%。在盐浓度高达5摩尔百分比时,钙钛矿层没有可检测到的二维成分。在薄膜-空气界面处发现的高浓度氟化材料提供了更大的疏水性、表面钙钛矿晶体尺寸和取向的增加,以及对高湿度具有更高稳定性的未封装器件。
