使用智能手机摄像头在报告者水凝胶涂层纸上进行定量酶检测。

Quantitative Enzyme Detection in Reporter Hydrogel-Coated Paper Using a Smartphone Camera.

机构信息

Physical Chemistry I & Research Center of Micro and Nanochemistry and Engineering (Cμ), Department of Chemistry and Biology, University of Siegen, Adolf-Reichwein-Straße 2, 57076 Siegen, Germany.

Mechatronics Engineering Department, Dedan Kimathi University of Technology, Nyeri-Mweiga Road, Nyeri 10143, Kenya.

出版信息

Biosensors (Basel). 2021 Jan 19;11(1):25. doi: 10.3390/bios11010025.


DOI:10.3390/bios11010025
PMID:33477907
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC7833396/
Abstract

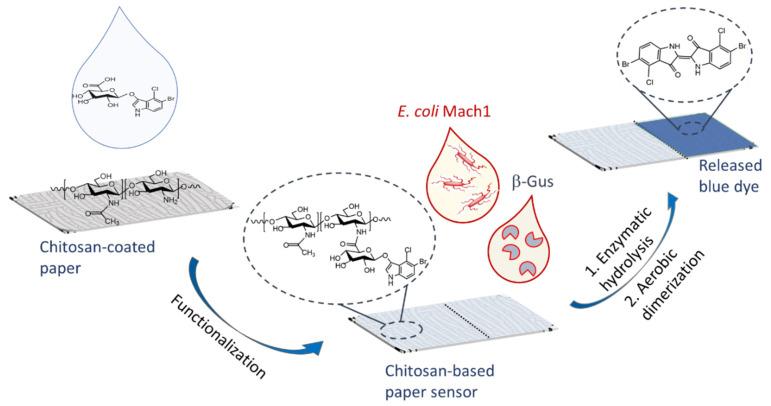

There is a growing demand for rapid and sensitive detection approaches for pathogenic bacteria that can be applied by non-specialists in non-laboratory field settings. Here, the detection of the typical enzyme β-glucuronidase using a chitosan-based sensing hydrogel-coated paper sensor and the detailed analysis of the reaction kinetics, as detected by a smartphone camera, is reported. The chromogenic reporter unit affords an intense blue color in a two-step reaction, which was analyzed using a modified Michaelis-Menten approach. This generalizable approach can be used to determine the limit of detection and comprises an invaluable tool to characterize the performance of lab-in-a-phone type approaches. For the particular system analyzed, the ratio of reaction rate and equilibrium constants of the enzyme-substrate complex are 0.3 and 0.9 pMh for β-glucuronidase in phosphate buffered saline and lysogeny broth, respectively. The minimal degree of substrate conversion for detection of the indigo pigment formed during the reaction is 0.15, while the minimal time required for detection in this particular system is ~2 h at an enzyme concentration of 100 nM. Therefore, this approach is applicable for quantitative lab-in-a-phone based point of care detection systems that are based on enzymatic substrate conversion via bacterial enzymes.

摘要

人们越来越需要快速、灵敏的方法来检测病原菌,而且这种方法应该适用于非实验室现场的非专业人员。在这里,我们报告了一种基于壳聚糖的传感水凝胶涂层纸传感器对典型酶β-葡糖苷酸酶的检测,以及通过智能手机摄像头对反应动力学的详细分析。显色报告单元在两步反应中呈现出强烈的蓝色,这可以通过改进的米氏方程分析来检测。这种可推广的方法可用于确定检测的下限,并构成了对手机内实验室型方法性能进行特征描述的宝贵工具。对于所分析的特定系统,β-葡糖苷酸酶在磷酸盐缓冲液和溶菌肉汤中的酶-底物复合物的反应速率和平衡常数的比值分别为 0.3 和 0.9 pMh。检测反应过程中形成的靛蓝颜料所需的最小底物转化率为 0.15,而在该特定系统中,在酶浓度为 100 nM 时,检测所需的最小时间约为 2 小时。因此,这种方法适用于基于酶促底物转化的基于手机的即时检测的定量实验室检测系统,这些系统基于细菌酶。
