Automatic Pharyngeal Phase Recognition in Untrimmed Videofluoroscopic Swallowing Study Using Transfer Learning with Deep Convolutional Neural Networks.

BACKGROUND

Video fluoroscopic swallowing study (VFSS) is considered as the gold standard diagnostic tool for evaluating dysphagia. However, it is time consuming and labor intensive for the clinician to manually search the recorded long video image frame by frame to identify the instantaneous swallowing abnormality in VFSS images. Therefore, this study aims to present a deep leaning-based approach using transfer learning with a convolutional neural network (CNN) that automatically annotates pharyngeal phase frames in untrimmed VFSS videos such that frames need not be searched manually.

METHODS

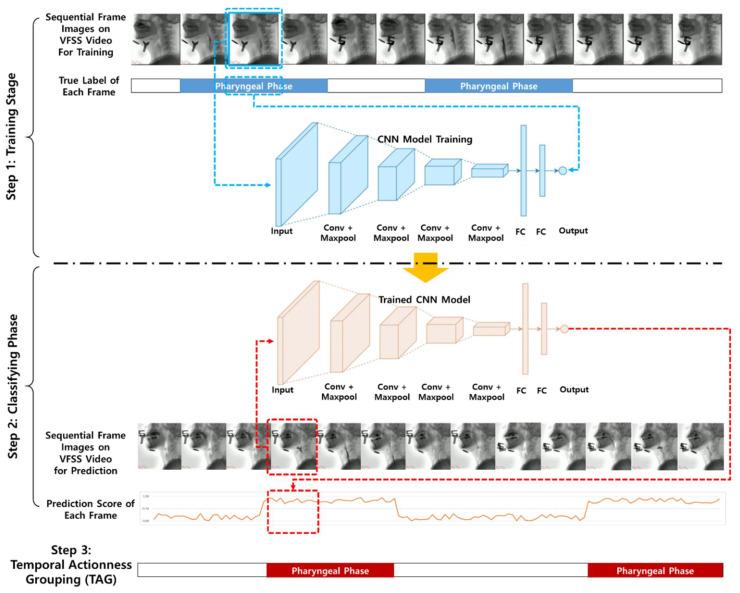

To determine whether the image frame in the VFSS video is in the pharyngeal phase, a single-frame baseline architecture based the deep CNN framework is used and a transfer learning technique with fine-tuning is applied.

RESULTS

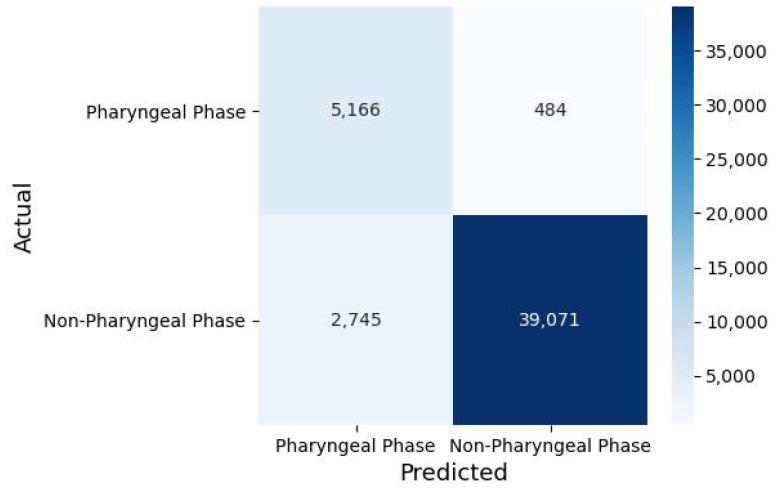

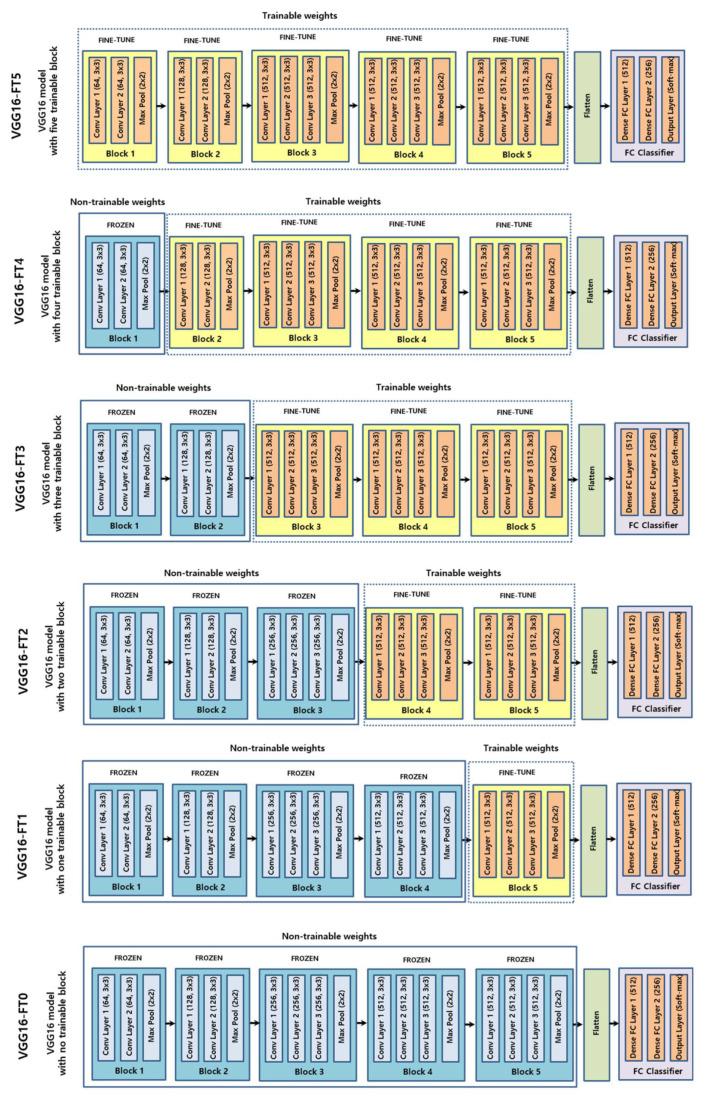

Compared with all experimental CNN models, that fine-tuned with two blocks of the VGG-16 (VGG16-FT5) model achieved the highest performance in terms of recognizing the frame of pharyngeal phase, that is, the accuracy of 93.20 (±1.25)%, sensitivity of 84.57 (±5.19)%, specificity of 94.36 (±1.21)%, AUC of 0.8947 (±0.0269) and Kappa of 0.7093 (±0.0488).

CONCLUSIONS

Using appropriate and fine-tuning techniques and explainable deep learning techniques such as grad CAM, this study shows that the proposed single-frame-baseline-architecture-based deep CNN framework can yield high performances in the full automation of VFSS video analysis.
