Fermi-Level Tuning of G-Doped Layers.

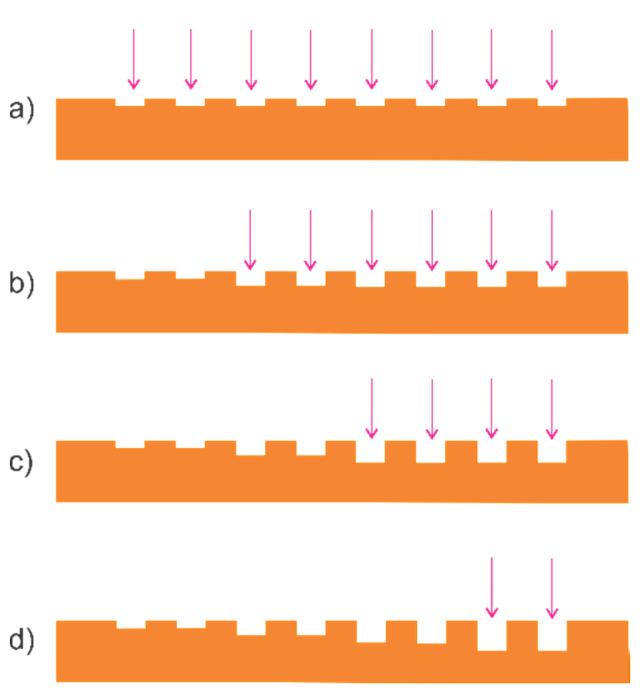

Recently, geometry-induced quantum effects were observed in periodic nanostructures. Nanograting (NG) geometry significantly affects the electronic, magnetic, and optical properties of semiconductor layers. Silicon NG layers exhibit geometry-induced doping. In this study, G-doped junctions were fabricated and characterized and the Fermi-level tuning of the G-doped layers by changing the NG depth was investigated. Samples with various indent depths were fabricated using laser interference lithography and a consecutive series of reactive ion etching. Four adjacent areas with NG depths of 10, 20, 30, and 40 nm were prepared on the same chip. A Kelvin probe was used to map the work function and determine the Fermi level of the samples. The G-doping-induced Fermi-level increase was recorded for eight sample sets cut separately from p-, n-, p-, and n-type silicon substrates. The maximum increase in the Fermi level was observed at a10 nm depth, and this decreased with increasing indent depth in the p- and n-type substrates. Particularly, this reduction was more pronounced in the p-type substrates. However, the Fermi-level increase in the n- and p-type substrates was negligible. The obtained results are explained using the G-doping theory and G-doped layer formation mechanism introduced in previous works.
