Di Bella Caterina, Pennasilico Luca, Staffieri Francesco, Serino Federica, Palumbo Piccionello Angela
School of Bioscience and Veterinary Medicine, University of Camerino, 62024 Matelica, Italy.
Department of Emergency and Organ Transplantation, Section of Veterinary Clinics and Animal Production, "Aldo Moro" University of Bari, 70010 Bari, Italy.
Animals (Basel). 2021 Jun 30;11(7):1953. doi: 10.3390/ani11071953.

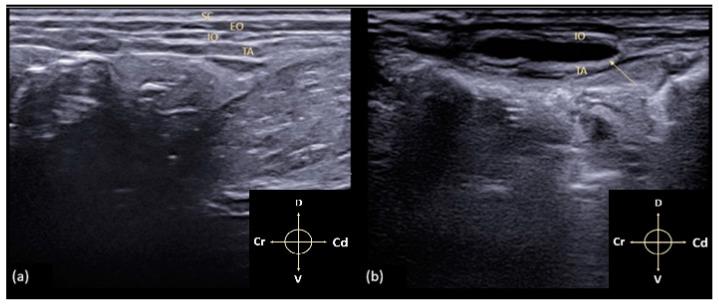

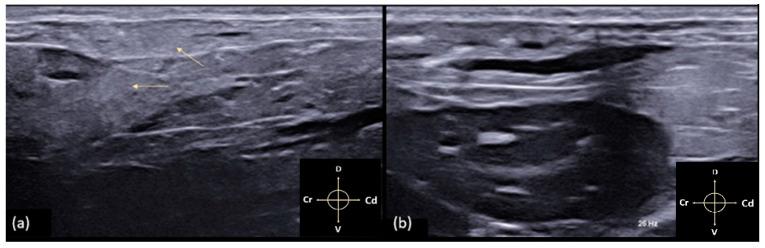

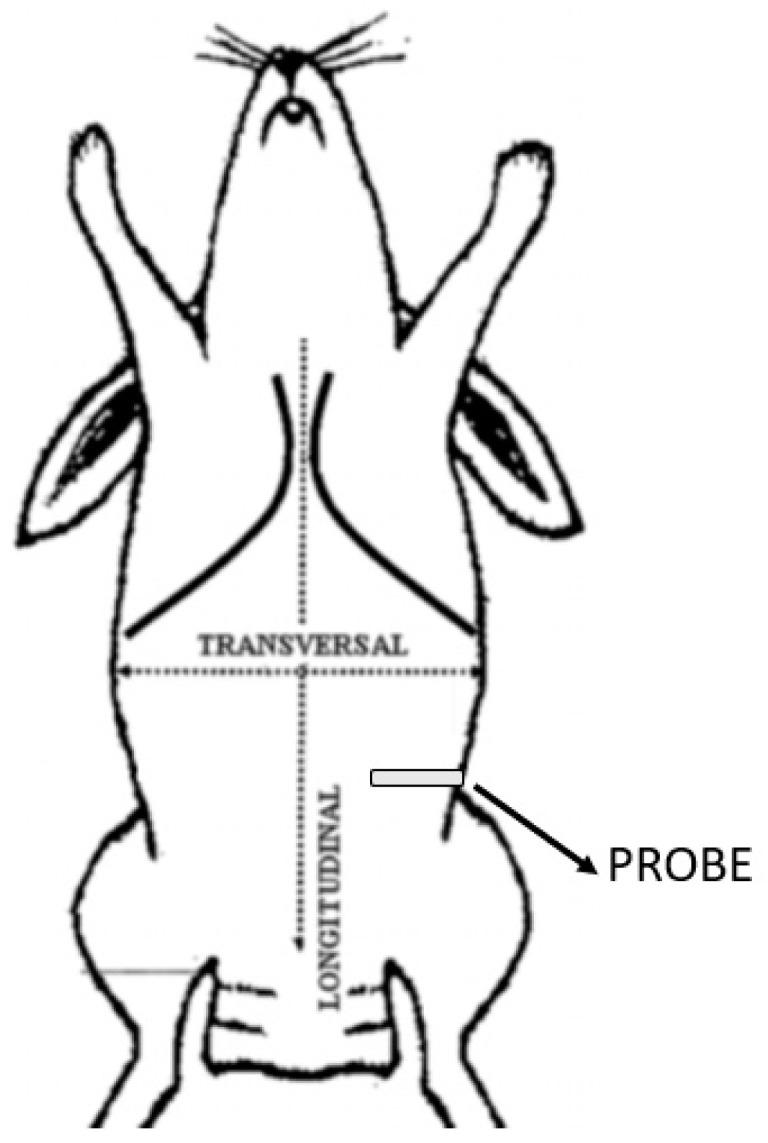

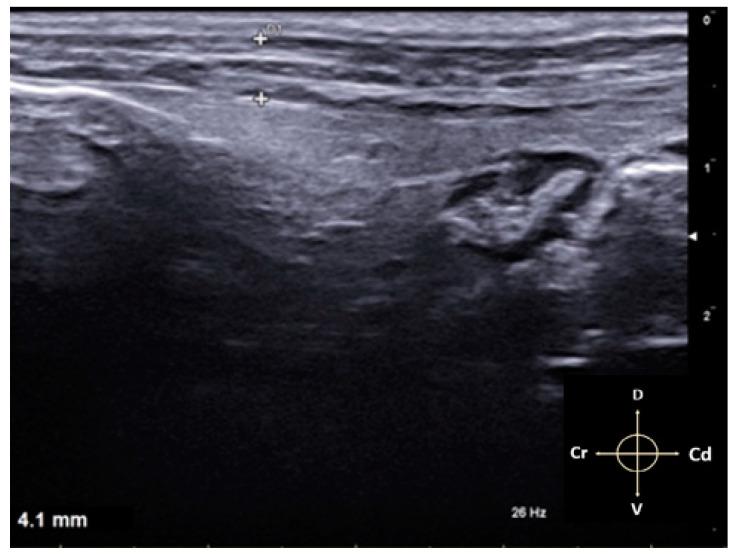

The aims of the study were to describe the ultrasonographic-guided lateral TAP block in rabbit cadavers and evaluate the spread of a lidocaine/methylene blue solution through a single fascial infiltration. The US-guided block and anatomical dissections were performed in 17 New Zealand rabbit cadavers. The probe was placed perpendicular to the column, one centimetre ventrally to the transverse processes, halfway between the iliac crest and the costal margin. External oblique (EO), internal oblique (IO), and transversus abdominis (TA) muscles were visualised, and 1 mL/kg of lidocaine 2% plus methylene blue 1% was injected. After dissection, the branches of spinal nerves stained were measured. Moreover, the percentage of length and height of the area marked were calculated. A good visualisation of the TAP was obtained in all 34 hemiabdomens. T11 nerve eminence was successfully stained in 52% of cases. T12, L1, and L2 were stained in 75%, 95%, and 100% of cases, respectively. L3 and L4 were stained in 60% and 40% of cases, respectively. The lateral TAP block with a single point of injection can be easily performed in rabbits, but it is not sufficient to cover the nerve eminences of the cranial abdomen. The two-point TAP block (lateral and subcostal) could represent a better option, particularly when large surgical incisions are required.
本研究的目的是描述兔尸体超声引导下的外侧腹横肌平面(TAP)阻滞,并通过单次筋膜浸润评估利多卡因/亚甲蓝溶液的扩散情况。对17只新西兰兔尸体进行了超声引导下的阻滞和解剖。将探头垂直于脊柱放置,在横突前方1厘米处,髂嵴和肋缘之间的中点。观察腹外斜肌(EO)、腹内斜肌(IO)和腹横肌(TA),并注射1 mL/kg的2%利多卡因加1%亚甲蓝。解剖后,测量染色的脊神经分支。此外,计算标记区域的长度和高度百分比。在所有34个半腹部均获得了良好的TAP可视化。52%的病例成功染色T11神经隆起。T12、L1和L2分别在75%、95%和100%的病例中染色。L3和L4分别在60%和40%的病例中染色。兔可轻松进行单点注射的外侧TAP阻滞,但不足以覆盖上腹部的神经隆起。两点TAP阻滞(外侧和肋下)可能是更好的选择,特别是在需要大手术切口时。
