School of Pharmaceutical Sciences, Shandong University, Jinan 250101, PR China.
Institute of Materia Medica, Shandong First Medical University & Shandong Academy of Medical Sciences, Jinan 250062, PR China.
Theranostics. 2021 Jun 22;11(16):7767-7778. doi: 10.7150/thno.59848. eCollection 2021.

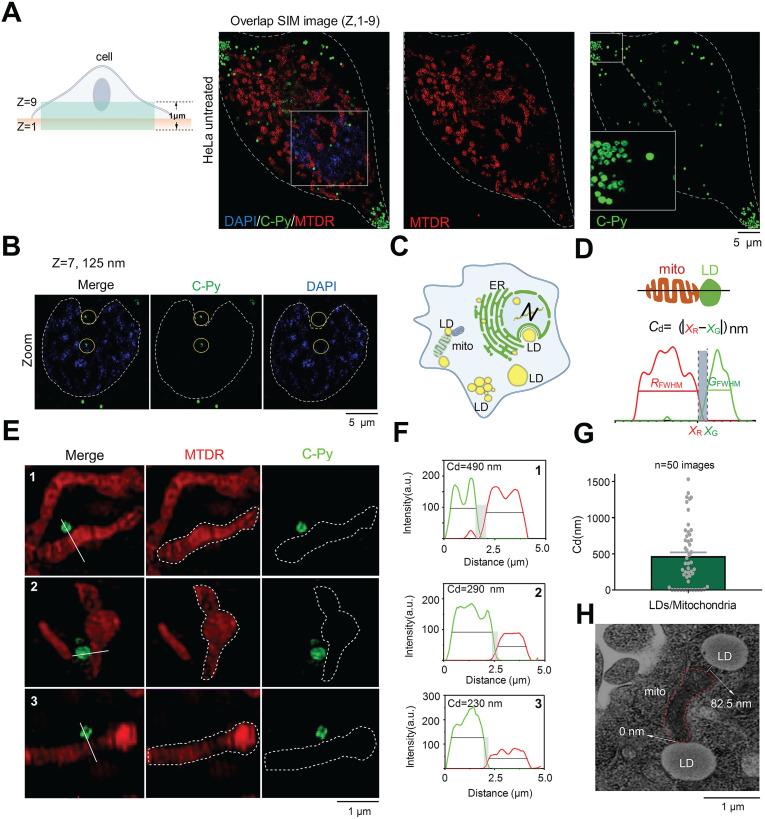

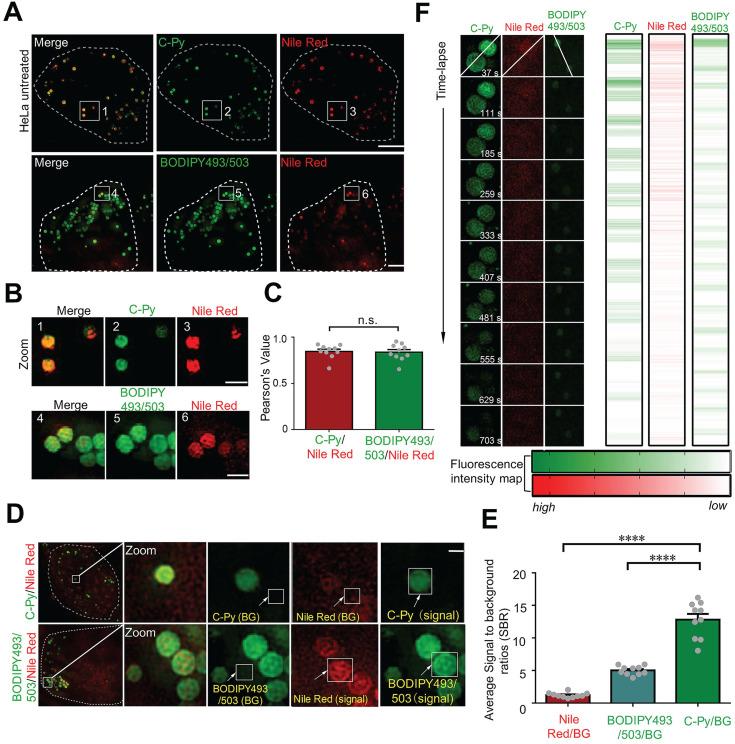

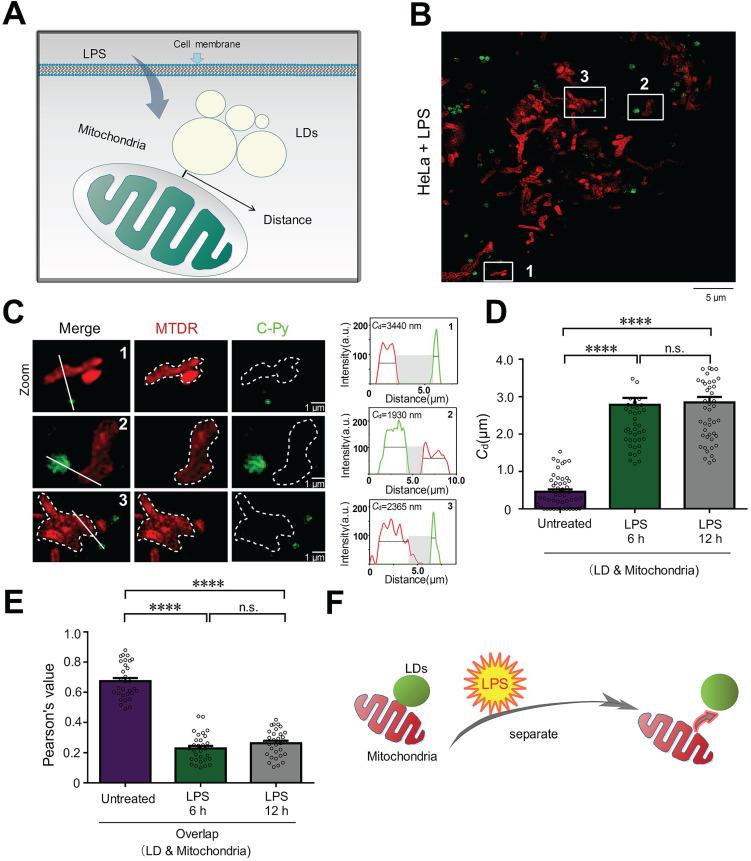

Lipid droplets (LDs) establish a considerable number of contact sites with mitochondria to enable energy transfer and communication. In this study, we developed a fluorescent biosensor to image LD-mitochondria interactions at the nanoscale and further explored the function of LD-mediated matrix transmission in processes involving multi-organelle interactions. A fluorescent probe called (CHNO, 7-(diethylamino) coumarin-3-vinyl-4-pyridine acetonitrile) was designed and synthesized. Colocalization of and the commercial LD stain Nile Red was analyzed in HeLa cells. The fluorescence stability and signal to background ratio of under structured illumination microscopy (SIM) were compared to those of the commercial probe BODIPY493/503. The cytotoxicity of was assessed using CCK-8 assays. The uptake pattern of in HeLa cells was then observed under various temperatures, metabolic levels, and endocytosis levels. Contact sites between LDs and various organelles, such as mitochondria, nuclei, and cell membrane, were imaged and quantitated using SIM. Physical changes to the contact sites between LDs and mitochondria were monitored after lipopolysaccharide induction. A LD-targeted fluorescent biosensor, , with good specificity, low background signal, excellent photostability, low cytotoxicity, and high cellular permeability was developed for tracking LD contact sites with multiple organelles using SIM. Using , the subcellular distribution and dynamic processes of LDs in living cells were observed under SIM. The formation of contact sites between LDs and multiple organelles was visualized at a resolution below ~200 nm. The number of LD-mitochondria contact sites formed was decreased by lipopolysaccharide treatment inducing an inflammatory environment. provides strategies for the design of ultra-highly selective biosensors and a new tool for investigating the role and regulation of LDs in living cells at the nanoscale.
脂滴 (LDs) 与线粒体建立了相当数量的接触位点,以实现能量转移和通讯。在这项研究中,我们开发了一种荧光生物传感器来在纳米尺度上成像 LD-线粒体相互作用,并进一步探索了 LD 介导的基质传递在涉及多细胞器相互作用的过程中的功能。设计并合成了一种名为 (CHNO,7-(二乙氨基)香豆素-3-乙烯基-4-吡啶乙腈) 的荧光探针。在 HeLa 细胞中分析了 和商业 LD 染色尼罗红的共定位。比较了结构光照明显微镜 (SIM) 下 的荧光稳定性和信号与背景比与商业探针 BODIPY493/503 的荧光稳定性和信号与背景比。使用 CCK-8 测定法评估了 的细胞毒性。然后观察了 在不同温度、代谢水平和内吞水平下在 HeLa 细胞中的摄取模式。使用 SIM 对 LD 与各种细胞器(如线粒体、核和细胞膜)之间的接触位点进行成像和定量。监测脂多糖诱导后 LD 与线粒体之间接触位点的物理变化。开发了一种具有良好特异性、低背景信号、优异的光稳定性、低细胞毒性和高细胞通透性的 LD 靶向荧光生物传感器,用于使用 SIM 跟踪 LD 与多个细胞器的接触位点。使用 ,在 SIM 下观察了活细胞中 LD 的亚细胞分布和动态过程。在分辨率低于 ~200nm 下可视化了 LD 与多个细胞器之间接触位点的形成。脂多糖处理诱导炎症环境后,形成的 LD-线粒体接触位点数量减少。 为设计超高选择性生物传感器提供了策略,为在纳米尺度上研究活细胞中 LD 的作用和调节提供了新工具。
