Wang Fangfang, Chang Qing, Yun Yikai, Liu Sizhou, Liu You, Wang Jungan, Fang Yinyu, Cheng Zhengchun, Feng Shanglei, Yang Lifeng, Yang Yingguo, Huang Wei, Qin Tianshi
Key Laboratory of Flexible Electronics (KLOFE) & Institute of Advanced Materials (IAM), Nanjing Tech University (NanjingTech), 30 South Puzhu Road, Nanjing 211816, China.
Shanghai Synchrotron Radiation Facility (SSRF), Shanghai Advanced Research Institute, Shanghai Institute of Applied Physics, Chinese Academy of Sciences, 239 Zhangheng Road, Shanghai 201204, China.
Research (Wash D C). 2021 May 28;2021:9797053. doi: 10.34133/2021/9797053. eCollection 2021.

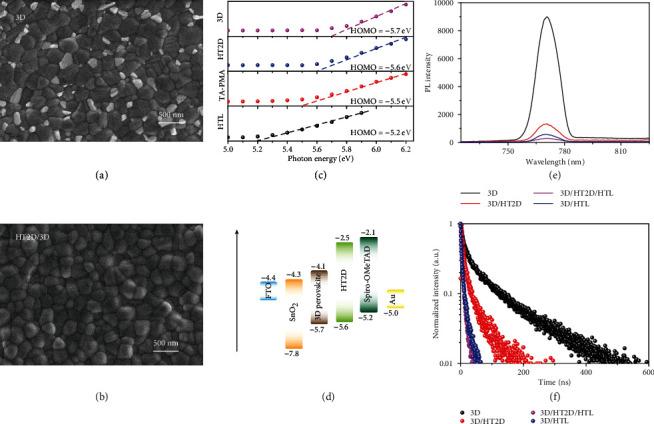

Halide perovskites with low-dimensionalities (2D or quasi-2D) have demonstrated outstanding stabilities compared to their 3D counterparts. Nevertheless, poor charge-transporting abilities of organic components in 2D perovskites lead to relatively low power conversion efficiency (PCE) and thus limit their applications in photovoltaics. Here, we report a novel hole-transporting low-dimensional (HT2D) perovskite, which can form a hole-transporting channel on the top surface of 3D perovskite due to self-assembly effects of metal halide frameworks. This HT2D perovskite can significantly reduce interface trap densities and enhance hole-extracting abilities of a heterojunction region between the 3D perovskite and hole-transporting layer. Furthermore, the posttreatment by HT2D can also reduce the crystal defects of perovskite and improve film morphology. As a result, perovskite solar cells (PSCs) can effectively suppress nonradiative recombination, leading to an increasement on photovoltage to >1.20 V and thus achieving >20% power conversion efficiency and >500 h continuous illumination stability. This work provides a pathway to overcome charge-transporting limitations in low-dimensional perovskites and delivers significant enhancements on performance of PSCs.
与三维卤化物钙钛矿相比,低维(二维或准二维)卤化物钙钛矿表现出卓越的稳定性。然而,二维钙钛矿中有机成分较差的电荷传输能力导致其功率转换效率(PCE)相对较低,从而限制了它们在光伏领域的应用。在此,我们报道了一种新型的空穴传输低维(HT2D)钙钛矿,由于金属卤化物框架的自组装效应,它可以在三维钙钛矿的顶表面形成空穴传输通道。这种HT2D钙钛矿可以显著降低界面陷阱密度,并增强三维钙钛矿与空穴传输层之间异质结区域的空穴提取能力。此外,HT2D的后处理还可以减少钙钛矿的晶体缺陷并改善薄膜形态。结果,钙钛矿太阳能电池(PSC)可以有效抑制非辐射复合,使光电压增加至>1.20 V,从而实现>20%的功率转换效率和>500小时的连续光照稳定性。这项工作提供了一条克服低维钙钛矿中电荷传输限制的途径,并显著提高了PSC的性能。
