Cheng Lu, Yi Chang, Tong Yunfang, Zhu Lin, Kusch Gunnar, Wang Xiaoyu, Wang Xinjiang, Jiang Tao, Zhang Hao, Zhang Ju, Xue Chen, Chen Hong, Xu Wenjie, Liu Dawei, Oliver Rachel A, Friend Richard H, Zhang Lijun, Wang Nana, Huang Wei, Wang Jianpu
Key Laboratory of Flexible Electronics (KLOFE) & Institute of Advanced Materials (IAM), Nanjing Tech University (NanjingTech), 30 South Puzhu Road, Nanjing 211816, China.
Department of Materials Science and Metallurgy, University of Cambridge, 27 Charles Babbage Road, Cambridge CB3 0FS, UK.
Research (Wash D C). 2020 Dec 24;2020:9017871. doi: 10.34133/2020/9017871. eCollection 2020.

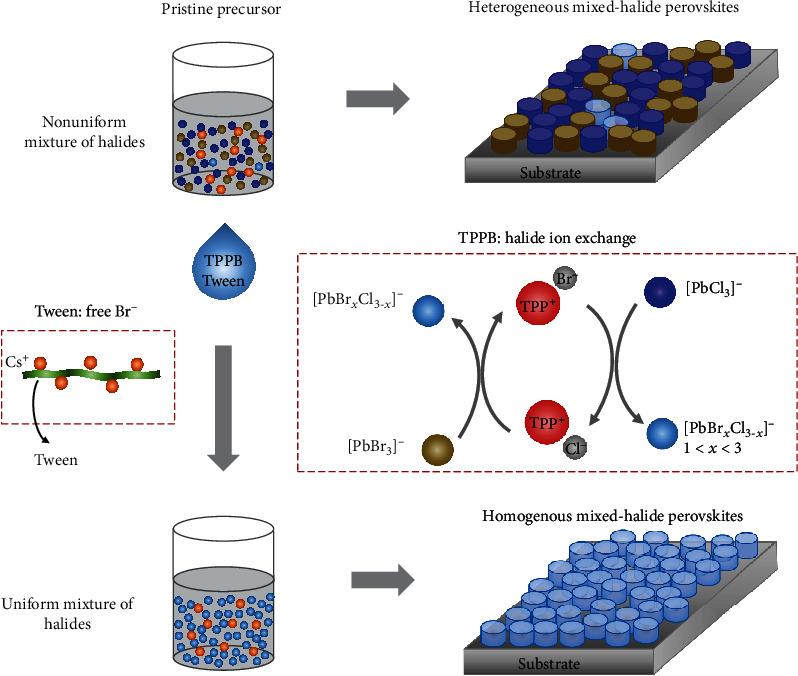

Metal halide perovskite light-emitting diodes (LEDs) have achieved great progress in recent years. However, bright and spectrally stable blue perovskite LED remains a significant challenge. Three-dimensional mixed-halide perovskites have potential to achieve high brightness electroluminescence, but their emission spectra are unstable as a result of halide phase separation. Here, we reveal that there is already heterogeneous distribution of halides in the as-deposited perovskite films, which can trace back to the nonuniform mixture of halides in the precursors. By simply introducing cationic surfactants to improve the homogeneity of the halides in the precursor solution, we can overcome the phase segregation issue and obtain spectrally stable single-phase blue-emitting perovskites. We demonstrate efficient blue perovskite LEDs with high brightness, e.g., luminous efficacy of 4.7, 2.9, and 0.4 lm W and luminance of over 37,000, 9,300, and 1,300 cd m for sky blue, blue, and deep blue with Commission Internationale de l'Eclairage (CIE) coordinates of (0.068, 0.268), (0.091, 0.165), and (0.129, 0.061), respectively, suggesting real promise of perovskites for LED applications.
近年来,金属卤化物钙钛矿发光二极管(LED)取得了巨大进展。然而,实现明亮且光谱稳定的蓝色钙钛矿LED仍然是一项重大挑战。三维混合卤化物钙钛矿有潜力实现高亮度电致发光,但由于卤化物相分离,其发射光谱不稳定。在此,我们揭示在沉积后的钙钛矿薄膜中已经存在卤化物的不均匀分布,这可以追溯到前驱体中卤化物的不均匀混合。通过简单地引入阳离子表面活性剂来改善前驱体溶液中卤化物的均匀性,我们能够克服相分离问题并获得光谱稳定的单相蓝色发光钙钛矿。我们展示了具有高亮度的高效蓝色钙钛矿LED,例如,对于天空蓝、蓝色和深蓝色,其发光效率分别为4.7、2.9和0.4 lm W,亮度分别超过37000、9300和1300 cd m²,国际照明委员会(CIE)坐标分别为(0.068, 0.268)、(0.091, 0.165)和(0.129, 0.061),这表明钙钛矿在LED应用中具有真正的前景。
