Thyroid ultrasound image classification using a convolutional neural network.

BACKGROUND

Ultrasound (US) is widely used in the clinical diagnosis of thyroid nodules. Artificial intelligence-powered US is becoming an important issue in the research community. This study aimed to develop an improved deep learning model-based algorithm to classify benign and malignant thyroid nodules (TNs) using thyroid US images.

METHODS

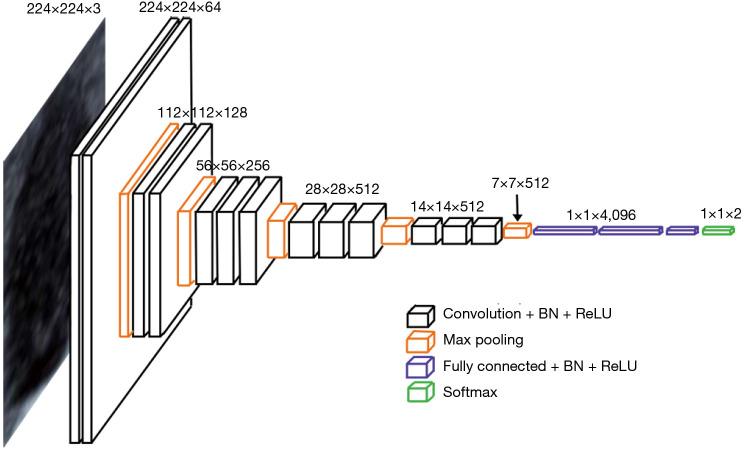

In total, 592 patients with 600 TNs were included in the internal training, validation, and testing data set; 187 patients with 200 TNs were recruited for the external test data set. We developed a Visual Geometry Group (VGG)-16T model, based on the VGG-16 architecture, but with additional batch normalization (BN) and dropout layers in addition to the fully connected layers. We conducted a 10-fold cross-validation to analyze the performance of the VGG-16T model using a data set of gray-scale US images from 5 different brands of US machines.

RESULTS

For the internal data set, the VGG-16T model had 87.43% sensitivity, 85.43% specificity, and 86.43% accuracy. For the external data set, the VGG-16T model achieved an area under the curve (AUC) of 0.829 [95% confidence interval (CI): 0.770-0.879], a radiologist with 15 years' working experience achieved an AUC of 0.705 (95% CI: 0.659-0.801), a radiologist with 10 years' experience achieved an AUC of 0.725 (95% CI: 0.653-0.797), and a radiologist with 5 years' experience achieved an AUC of 0.660 (95% CI: 0.584-0.736).

CONCLUSIONS

The VGG-16T model had high specificity, sensitivity, and accuracy in differentiating between malignant and benign TNs. Its diagnostic performance was superior to that of experienced radiologists. Thus, the proposed improved deep-learning model can assist radiologists to diagnose thyroid cancer.
