INTRODUCTION

Total kidney volume (TKV) is a qualified biomarker for disease progression in autosomal dominant polycystic kidney disease (ADPKD). Recent studies suggest that TKV estimated using ellipsoid formula correlates well with TKV measured by manual planimetry (gold standard). We investigated whether the ellipsoid formula could replace manual planimetry for follow-up of ADPKD patients.

METHODS

Abdominal magnetic resonance images of patients with ADPKD performed between January 1, 2013, and June 31, 2019, in Saint-Luc Hospital, Brussels, were used. Two radiologists independently performed manual TKV (mTKV) measures and kidney axial measures necessary for estimating TKV (eTKV) using ellipsoid equation. Repeatability and reproducibility of axial measures, mTKV and eTKV, and agreement between mTKV and eTKV were assessed (Bland-Altman). Intraclass correlation coefficient (ICC) was used to assess agreement on Mayo Clinic Imaging Classification (MCIC) scores.

RESULTS

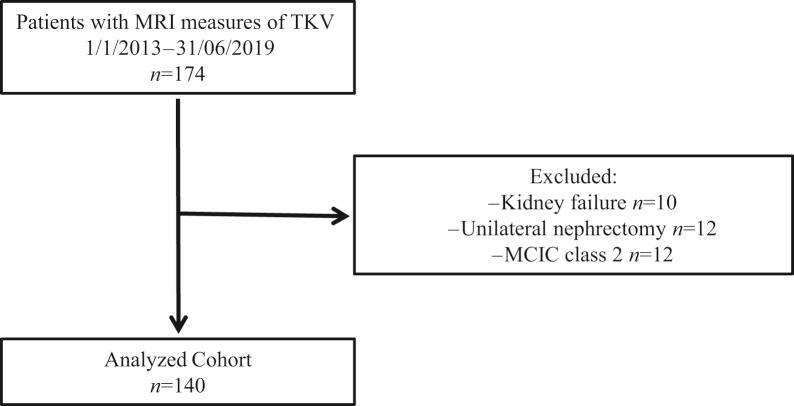

140 patients were included with mean age 45±13 years, estimated glomerular filtration rate (eGFR) 71±31 ml/min per 1.73 m, and mTKV 1697±1538 ml. Repeatability and reproducibility were superior for mTKV versus eTKV (repeatability coefficient 2.4% vs. 14% in senior reader, and reproducibility coefficient 6.7% vs. 15%). Intertechnique reproducibility coefficient (95% confidence interval [CI]) was 19% (17%, 21%) in senior reader. Intertechnique agreement on derived MCIC scores was very good (ICC = 0.924 [0.884, 0.949]).

CONCLUSION

TKV estimated using ellipsoid equation demonstrates poor repeatability and reproducibility compared with that of mTKV. Intertechnique agreement is also limited, even when measurements are performed by an experienced radiologist. Estimated TKV, however, accurately determines MCIC score.
