授权交通控制器手势识别用于情境感知自动驾驶。

Authorized Traffic Controller Hand Gesture Recognition for Situation-Aware Autonomous Driving.

机构信息

Yonsei Institute of Convergence Technology, Yonsei University, Incheon 21983, Korea.

出版信息

Sensors (Basel). 2021 Nov 27;21(23):7914. doi: 10.3390/s21237914.


DOI:10.3390/s21237914
PMID:34883917
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8659850/
Abstract

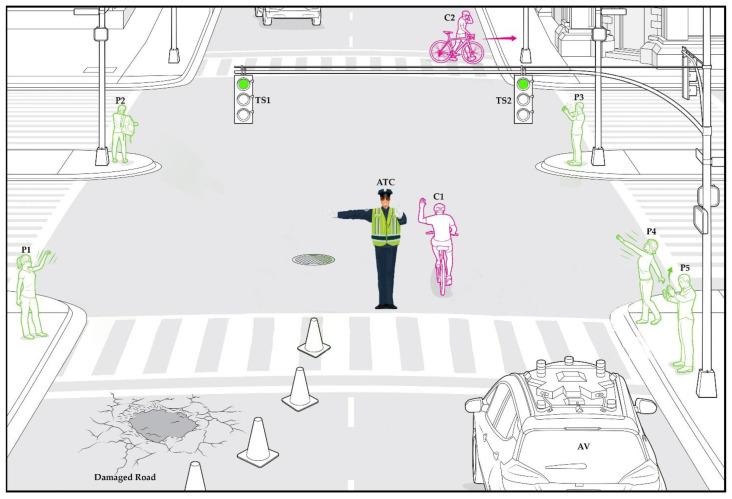

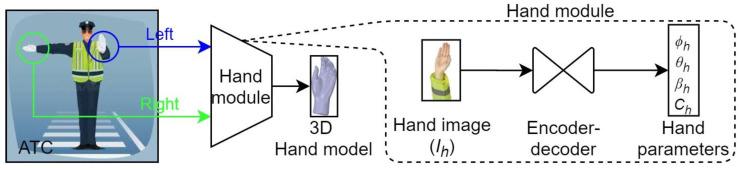

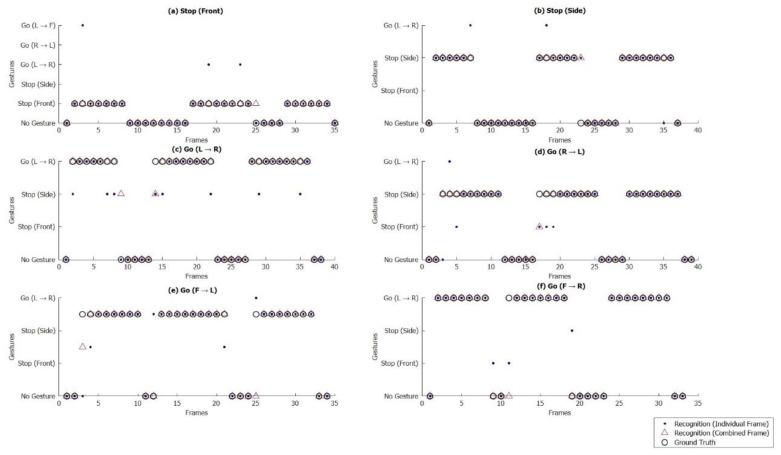

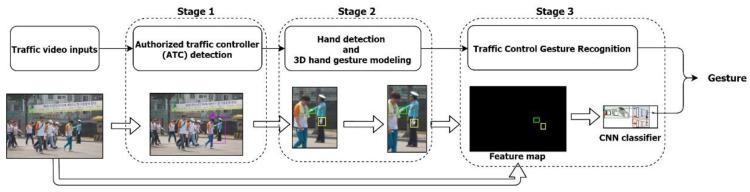

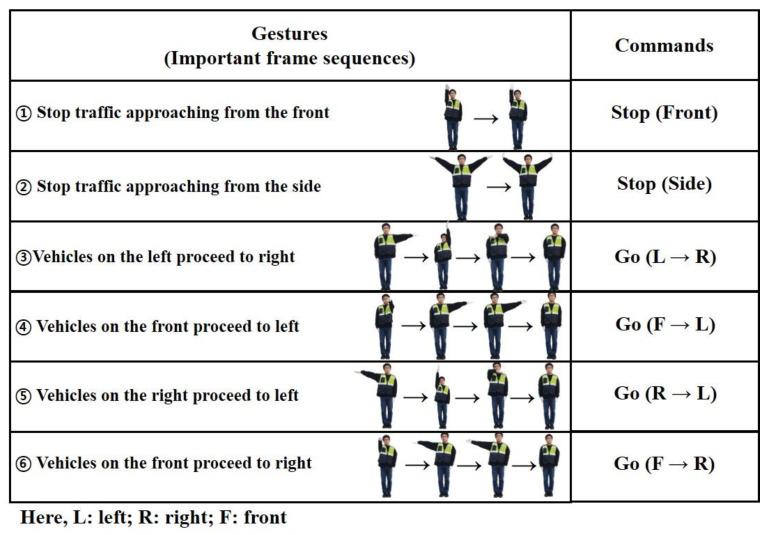

An authorized traffic controller (ATC) has the highest priority for direct road traffic. In some irregular situations, the ATC supersedes other traffic control. Human drivers indigenously understand such situations and tend to follow the ATC; however, an autonomous vehicle (AV) can become confused in such circumstances. Therefore, autonomous driving (AD) crucially requires a human-level understanding of situation-aware traffic gesture recognition. In AVs, vision-based recognition is particularly desirable because of its suitability; however, such recognition systems have various bottlenecks, such as failing to recognize other humans on the road, identifying a variety of ATCs, and gloves in the hands of ATCs. We propose a situation-aware traffic control hand-gesture recognition system, which includes ATC detection and gesture recognition. Three-dimensional (3D) hand model-based gesture recognition is used to mitigate the problem associated with gloves. Our database contains separate training and test videos of approximately 60 min length, captured at a frame rate of 24 frames per second. It has 35,291 different frames that belong to traffic control hand gestures. Our approach correctly recognized traffic control hand gestures; therefore, the proposed system can be considered as an extension of the operational domain of the AV.

摘要

授权的交通控制器(ATC)具有直接道路交通的最高优先级。在某些不规则情况下,ATC 会取代其他交通管制。人类驾驶员天生就理解这种情况,并倾向于跟随 ATC;然而,自动驾驶车辆(AV)在这种情况下可能会感到困惑。因此,自主驾驶(AD)迫切需要对情境感知的交通手势识别具有人类水平的理解。在自动驾驶汽车中,基于视觉的识别由于其适用性而特别可取;然而,这种识别系统存在各种瓶颈,例如无法识别道路上的其他行人、识别各种 ATC 以及 ATC 手中的手套。我们提出了一种情境感知的交通管制手势识别系统,包括 ATC 检测和手势识别。基于三维(3D)手模型的手势识别用于缓解与手套相关的问题。我们的数据库包含大约 60 分钟长的单独训练和测试视频,帧率为每秒 24 帧。它有 35291 个不同的属于交通管制手势的帧。我们的方法正确识别了交通管制手势;因此,所提出的系统可以被视为自动驾驶车辆的操作范围的扩展。
