颈椎旋转手法对颈脊髓影响的有限元研究。

Effects of cervical rotatory manipulation on the cervical spinal cord: a finite element study.

机构信息

School of Traditional Chinese Medicine, Southern Medical University, Baiyun District, Guangzhou, Guangdong Province, China.

Zunyi Medical and Pharmaceutical College, Pingan District, Zunyi, Guizhou Province, China.

出版信息

J Orthop Surg Res. 2021 Dec 24;16(1):737. doi: 10.1186/s13018-021-02885-6.


DOI:10.1186/s13018-021-02885-6
PMID:34952620
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8710013/
Abstract

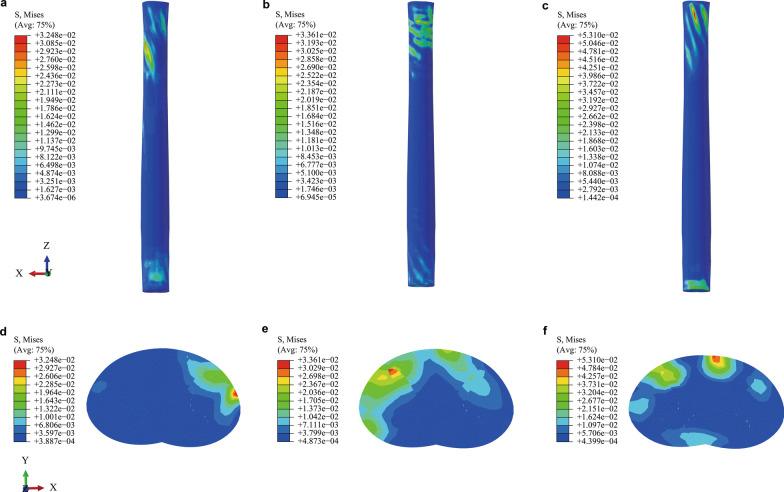

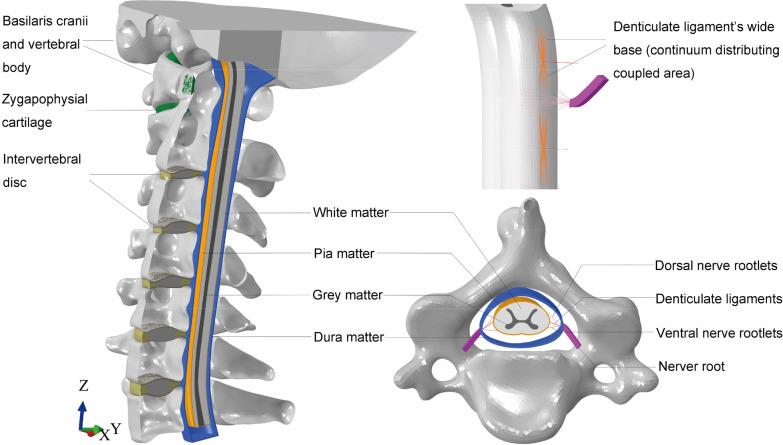

BACKGROUND: Little information is available concerning the biomechanism involved in the spinal cord injury after cervical rotatory manipulation (CRM). The primary purpose of this study was to explore the biomechanical and kinematic effects of CRM on a healthy spinal cord. METHODS: A finite element (FE) model of the basilaris cranii, C1-C7 vertebral bodies, nerve root complex and vertebral canal contents was constructed and validated against in vivo and in vitro published data. The FE model simulated CRM in the flexion, extension and neutral positions. The stress distribution, forma and relative position of the spinal cord were observed. RESULTS: Lower von Mises stress was observed on the spinal cord after CRM in the flexion position. The spinal cord in CRM in the flexion and neutral positions had a lower sagittal diameter and cross-sectional area. In addition, the spinal cord was anteriorly positioned after CRM in the flexion position, while the spinal cord was posteriorly positioned after CRM in the extension and neutral positions. CONCLUSION: CRM in the flexion position is less likely to injure the spinal cord, but caution is warranted when posterior vertebral osteophytes or disc herniations exist.

摘要

背景:颈椎旋转手法(CRM)后脊髓损伤的生物力学机制知之甚少。本研究的主要目的是探讨 CRM 对健康脊髓的生物力学和运动学影响。

方法:构建了颅底、C1-C7 椎体、神经根复合体和椎管内容物的有限元(FE)模型,并与体内和体外发表的数据进行了验证。FE 模型模拟了屈曲、伸展和中立位的 CRM。观察了脊髓的应力分布、形态和相对位置。

结果:CRM 后,在屈曲位时脊髓的 von Mises 应力较低。在屈曲和中立位进行 CRM 后,脊髓的矢状径和横截面积较小。此外,在屈曲位进行 CRM 后,脊髓向前移位,而在伸展和中立位进行 CRM 后,脊髓向后移位。

结论:屈曲位的 CRM 不太可能损伤脊髓,但当存在后椎体骨赘或椎间盘突出时应谨慎。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/c60b4228fcf4/13018_2021_2885_Fig6_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/80fb0037a530/13018_2021_2885_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/479f412a0b75/13018_2021_2885_Fig2_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/b50b96747b7d/13018_2021_2885_Fig3_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/08f5a1807ae1/13018_2021_2885_Fig4_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/ad41480b0ed4/13018_2021_2885_Fig5_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/c60b4228fcf4/13018_2021_2885_Fig6_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/80fb0037a530/13018_2021_2885_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/479f412a0b75/13018_2021_2885_Fig2_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/b50b96747b7d/13018_2021_2885_Fig3_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/08f5a1807ae1/13018_2021_2885_Fig4_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/ad41480b0ed4/13018_2021_2885_Fig5_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2a95/8710013/c60b4228fcf4/13018_2021_2885_Fig6_HTML.jpg
