Effects of C-Factor on Bond Strength of Universal Adhesives to Floor and Wall Dentin in Class-I Composite Restorations.

PURPOSE

To evaluate the effects of C-factor on the bond strength of universal adhesives to floor and wall dentin in class-I composite restorations using a bulk-fill composite.

MATERIALS AND METHODS

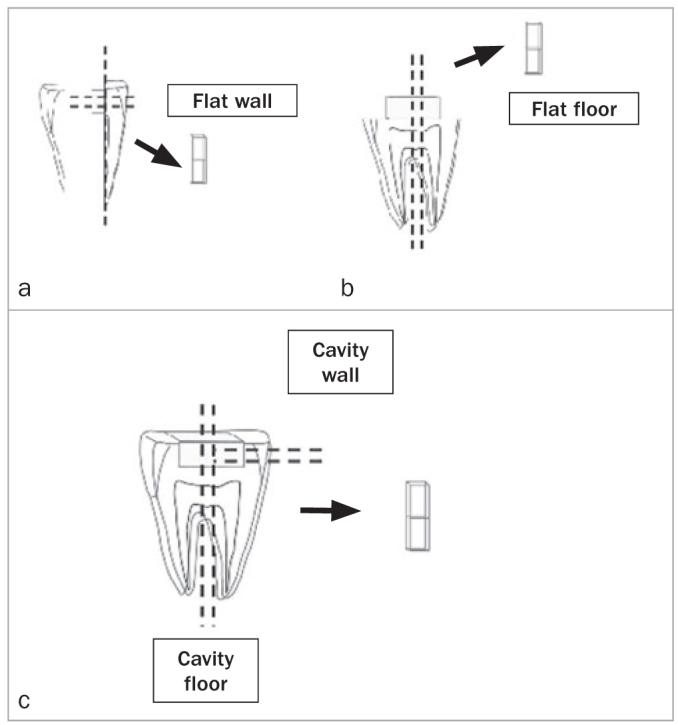

108 non-carious humans third molars were randomly divided into four groups as follows: flat wall, flat floor, cavity wall, and cavity floor (n = 36). Then, each group was subdivided into three subgroups according to the type of adhesive used: Single Bond Universal, G-premio Bond (both universal adhesives), or Adper Single Bond 2 (an etch-and-rinse adhesive). After the bonding procedure, X-tra fill resin composite was applied in bulk to build up the flat surfaces or fill the cavities.Then the teeth were sectioned into 1-mm2 sticks and microtensile bond strength (µTBS) was measured using a universal testing machine. µTBS (MPa) was analyzed by one-way, two-way, and three-way ANOVA using SPSS Version 23 (a = 0.05).

RESULTS

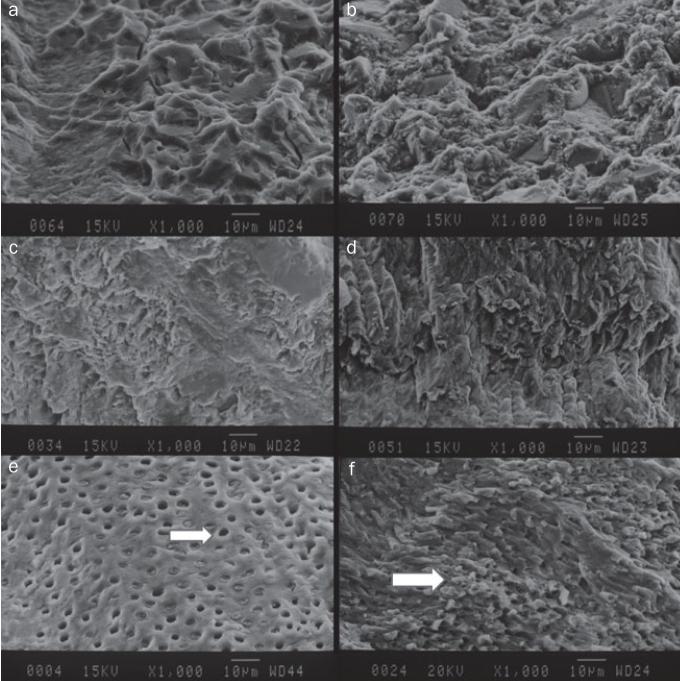

Interactions between adhesives and bonding surfaces, as well as C-factor and bonding surfaces showed statistically significant differences, but the interaction between the C-factor and type of adhesive was not statistically significant. The comparison of bonded surfaces including the flat wall and the flat floor in Adper Single Bond 2 was statistically significant (p < 0.05), except for the cavity wall and cavity floor.

CONCLUSION

Regardless of the type of adhesives, the C-factor reduced the µTBS of the composite resin to dentin. Adper Single Bond 2 mediated higher µTBS than did the universal adhesives G-premio Bond and Single Bond Universal.
