Exploiting Plasmonic Phenomena in Polymer Optical Fibers to Realize a Force Sensor.

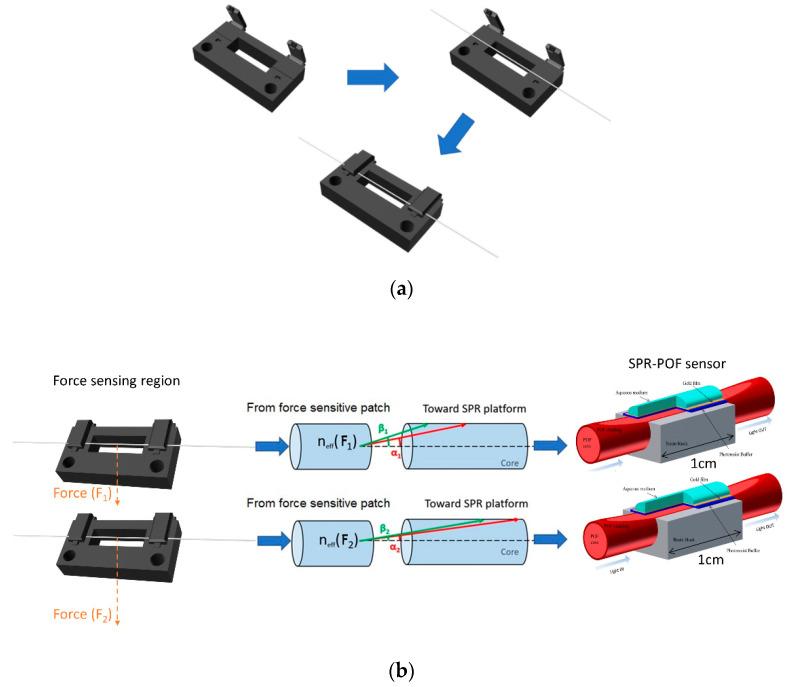

In this work, a novel sensing approach to realize a force optical fiber sensor is designed, developed, and experimentally tested. The proposed sensing methodology exploits the effects of deformation due to an applied force on a patch of plastic optical fiber (POF) connected at the input of a surface plasmon resonance (SPR) sensor realized in a D-shaped POF. Therefore, the proposed force sensor system consists of an SPR D-shaped POF sensor, connected to a spectrometer, within input of a POF patch, connected to a light source used for interacting with the applied force. When the applied force on the patch changes, the mode profile of the light in the multimode POF patch and the SPR-POF sensor change too, so the SPR spectra shift. The obtained experimental results demonstrate that the proposed sensor has a resolution of the force sensor equal to about 22 mN and an excellent linear response in the range from 0 N to 0.5 N.
