Chico Belén, Pérez-Maceda Blanca Teresa, San-José Sara, Escudero María Lorenza, García-Alonso María Cristina, Lozano Rosa María
Department of Surface Engineering, Corrosion and Durability, Centro Nacional de Investigaciones Metalúrgicas (CENIM, CSIC), Avda. Gregorio del Amo 8, 28040 Madrid, Spain.
Cell-Biomaterial Recognition Lab, Department of Cell and Molecular Biology, Centro de Investigaciones Biológicas Margarita Salas (CIB-MS, CSIC), Ramiro de Maeztu 9, 28040 Madrid, Spain.
Materials (Basel). 2022 Apr 6;15(7):2693. doi: 10.3390/ma15072693.

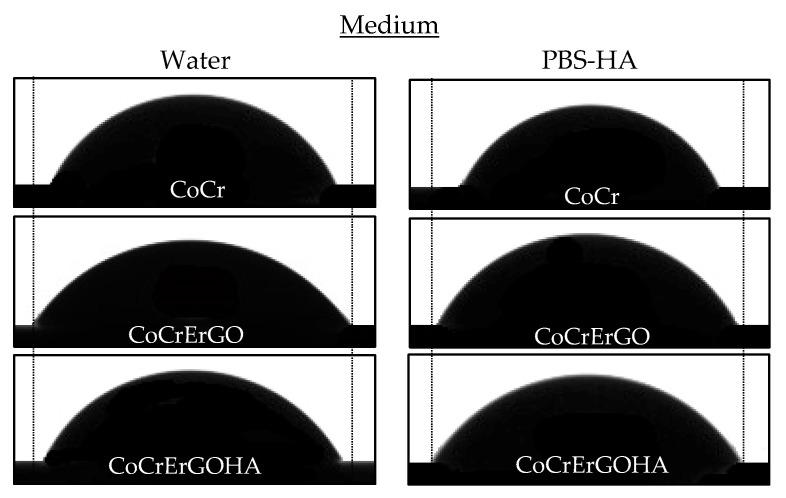

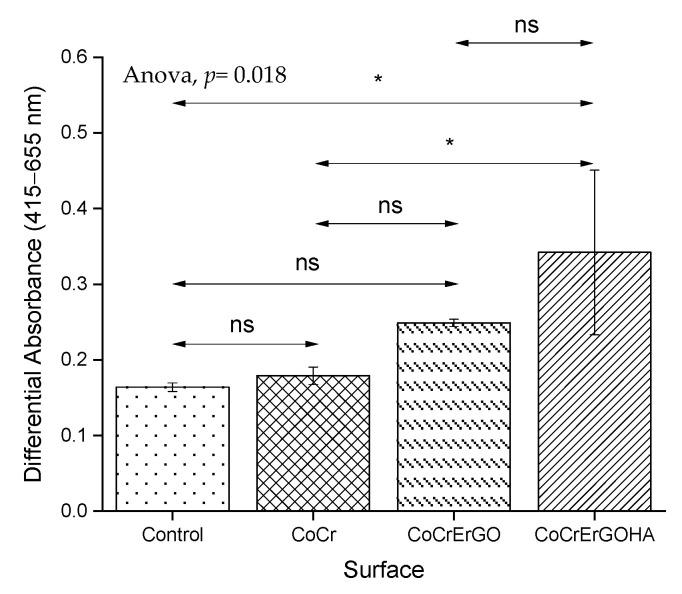

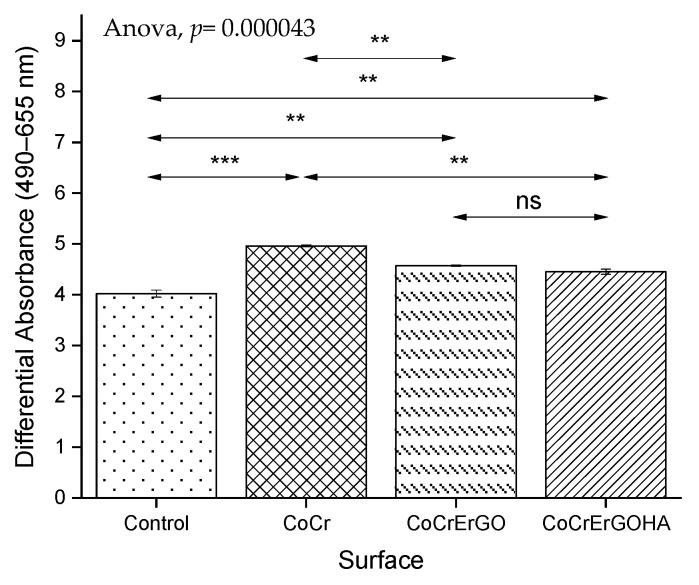

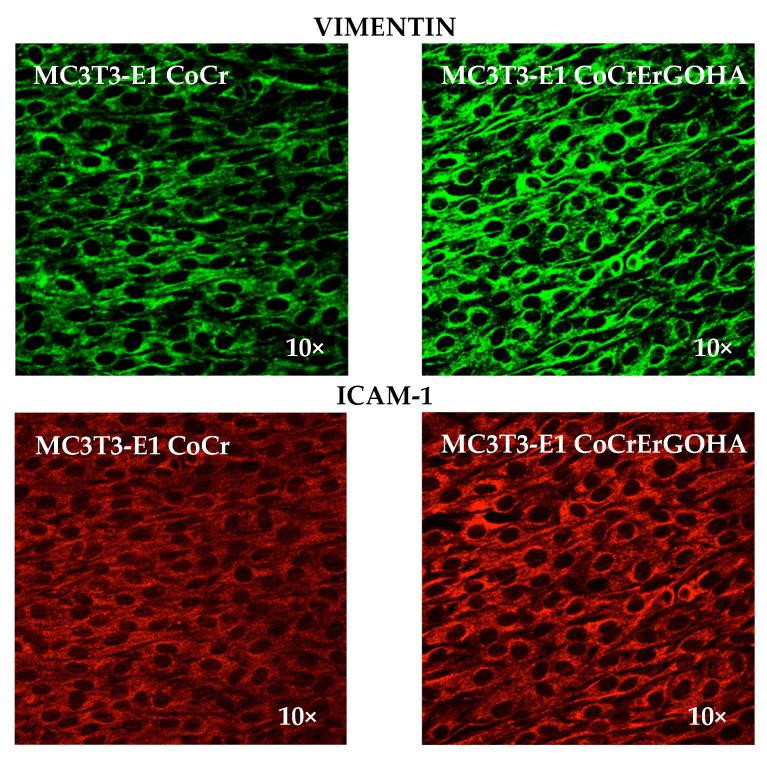

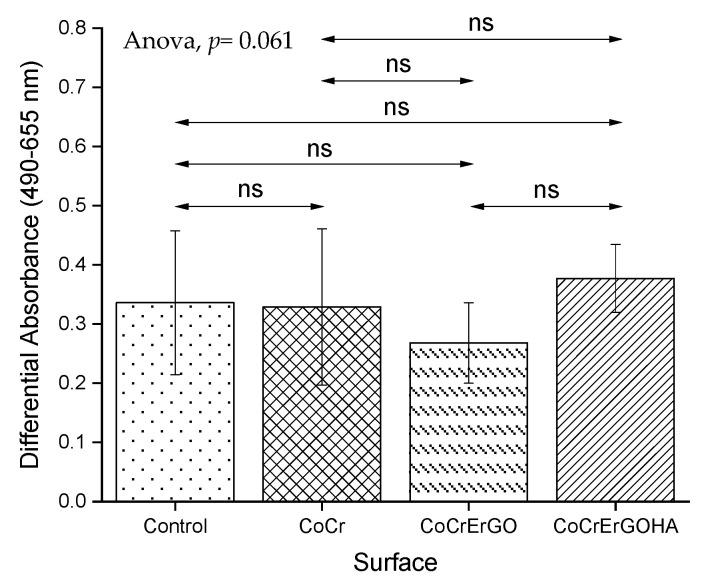

The durability of metal-metal prostheses depends on achieving a higher degree of lubrication. The beneficial effect of hyaluronic acid (HA) on the friction and wear of both natural and artificial joints has been reported. For this purpose, graphene oxide layers have been electrochemically reduced on CoCr surfaces (CoCrErGO) and subsequently functionalized with HA (CoCrErGOHA). These layers have been evaluated from the point of view of wettability and corrosion resistance in a physiological medium containing HA. The wettability was analyzed by contact angle measurements in phosphate buffer saline-hyaluronic acid (PBS-HA) solution. The corrosion behavior of functionalized CoCr surfaces was studied with electrochemical measurements. Biocompatibility, cytotoxicity, and expression of proteins related to wound healing and repair were studied in osteoblast-like MC3T3-E1 cell cultures. All of the reported results suggest that HA-functionalized CoCr surfaces, through ErGO layers in HA-containing media, exhibit higher hydrophilicity and better corrosion resistance. Related to this increase in wettability was the increase in the expressions of vimentin and ICAM-1, which favored the growth and adhesion of osteoblasts. Therefore, it is a promising material for consideration in trauma applications, with improved properties in terms of wettability for promoting the adhesion and growth of osteoblasts, which is desirable in implanted materials used for bone repair.
金属对金属假体的耐用性取决于实现更高程度的润滑。已有报道称透明质酸(HA)对天然关节和人工关节的摩擦与磨损具有有益作用。为此,氧化石墨烯层已在钴铬(CoCr)表面进行了电化学还原(CoCrErGO),随后用HA进行了功能化处理(CoCrErGOHA)。已从含HA的生理介质中的润湿性和耐腐蚀性角度对这些涂层进行了评估。通过在磷酸盐缓冲盐水 - 透明质酸(PBS - HA)溶液中测量接触角来分析润湿性。用电化学测量方法研究了功能化CoCr表面的腐蚀行为。在成骨样MC3T3 - E1细胞培养物中研究了生物相容性、细胞毒性以及与伤口愈合和修复相关的蛋白质表达。所有报道结果表明,在含HA的介质中,通过ErGO层功能化的CoCr表面表现出更高的亲水性和更好的耐腐蚀性。与这种润湿性增加相关的是波形蛋白和细胞间黏附分子 - 1(ICAM - 1)表达的增加,这有利于成骨细胞的生长和黏附。因此,它是创伤应用中一种有前景的材料,在促进成骨细胞黏附和生长的润湿性方面具有改善的性能,这在用于骨修复的植入材料中是理想的。
