用于胃肠道微生物群非侵入性采样和研究的智能胶囊。

Smart capsule for non-invasive sampling and studying of the gastrointestinal microbiome.

作者信息

Waimin Jose Fernando, Nejati Sina, Jiang Hongjie, Qiu Jake, Wang Jianghsan, Verma Mohit S, Rahimi Rahim

机构信息

School of Materials Engineering, Purdue University West Lafayette Indiana 47907 USA

Birck Nanotechnology Center, Purdue University West Lafayette IN 47907 USA.

出版信息

RSC Adv. 2020 Apr 24;10(28):16313-16322. doi: 10.1039/c9ra10986b. eCollection 2020 Apr 23.

Abstract

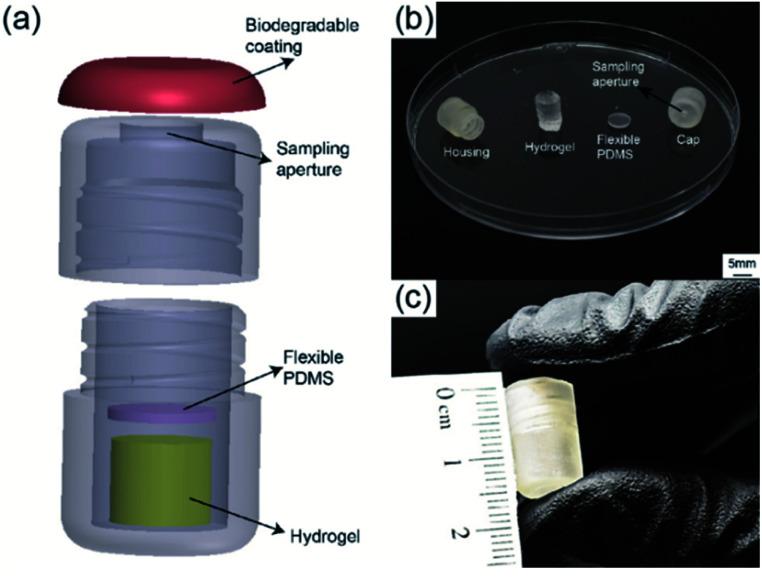

Gut microbiota plays an important role in host physiology such as obesity, diabetes, and various neurological diseases. Thus, microbiome sampling is a fundamental approach towards better understanding of possible diseases. However, conventional sampling methods, such as endoscopies or colonoscopies, are invasive and cannot reach the entire small intestine. To address this need, a battery-less 3D-printed sampling capsule, which can collect microbiome samples throughout the entirety of the GI tract was designed. The capsule (9 mm × 15 mm) consists of a 3D printed acrylic housing, a fast-absorbing hydrogel, and a flexible PDMS membrane. Fluids containing samples of the microbial flora within the GI tract enter the device through a sampling aperture on the cap of the device. Once the microbiome enters the housing, the hydrogel absorbs the fluid and swells, effectively protecting the samples within its polymeric matrix, while also pushing on the flexible PDMS membrane to block the sampling aperture from further fluid exchange. The retrieved capsule can be readily disassembled due to the screw-cap design of the capsule and the hydrogel can be removed for further bacterial culture and analysis. As a proof of concept, the capsule's bacterial sampling efficiency and the ability to host microbial samples within the hydrogel in a sealed capsule were validated using a liquid culture containing . The demonstrated technology provides a promising inexpensive tool for direct sampling and assessment of microbes throughout the GI tract and can enable new insights into the role of diet in mediating host-microbe interactions and metabolism.

摘要

肠道微生物群在宿主生理过程中发挥着重要作用,如肥胖、糖尿病和各种神经系统疾病。因此,微生物组采样是更好地了解可能疾病的基本方法。然而,传统的采样方法,如内窥镜检查或结肠镜检查,具有侵入性,且无法到达整个小肠。为满足这一需求,设计了一种无需电池的3D打印采样胶囊,它可以收集整个胃肠道的微生物组样本。该胶囊(9毫米×15毫米)由3D打印的丙烯酸外壳、快速吸收的水凝胶和柔性聚二甲基硅氧烷(PDMS)膜组成。含有胃肠道内微生物菌群样本的液体通过设备帽上的采样孔进入设备。一旦微生物组进入外壳,水凝胶会吸收液体并膨胀,有效地将样本保护在其聚合物基质中,同时还会推动柔性PDMS膜以阻止采样孔进行进一步的液体交换。由于胶囊的螺帽设计,回收的胶囊可以很容易地拆卸,水凝胶可以取出用于进一步的细菌培养和分析。作为概念验证,使用含有……的液体培养物验证了胶囊的细菌采样效率以及在密封胶囊中在水凝胶内保存微生物样本的能力。所展示的技术为直接采样和评估整个胃肠道中的微生物提供了一种有前景的廉价工具,并能够对饮食在介导宿主-微生物相互作用和代谢中的作用有新的见解。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/abe7/9052936/7130a28b28af/c9ra10986b-f1.jpg
