Huang Xiaodong, Liu Yanan, Liu Guangyang, Li Lingyun, Xu Xiaomin, Zheng Shuning, Xu Donghui, Gao Haixiang
Department of Applied Chemistry, China Agricultural University Beijing 100193 P. R. China
Institute of Vegetables and Flowers, Chinese Academy of Agricultural Sciences, Key Laboratory of Vegetables Quality and Safety Control, Ministry of Agriculture and Rural Affairs of China Beijing 100081 P. R. China.
RSC Adv. 2018 Jul 16;8(45):25351-25360. doi: 10.1039/c8ra05064c.

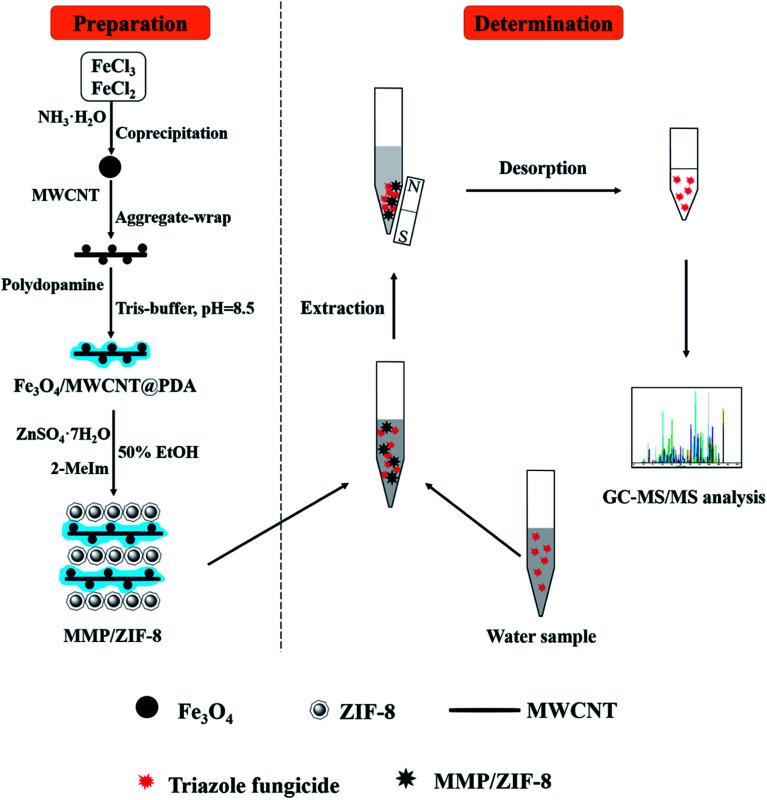

A novel magnetic zinc-based zeolitic imidazolate framework (MMP/ZIF-8) has been prepared using a magnetic multiwalled carbon nanotube@polydopamine nanocomposite as the magnetic core and support. It was then used as an adsorbent for magnetic solid-phase extraction of triazole fungicides from environmental water samples. Successful synthesis of MMP/ZIF-8 was confirmed by material characterization, and the results showed that the synthetic composite has a high Brunauer-Emmett-Teller surface area (141.56 m g), large total pore volume (0.636 mL g), and high superparamagnetism with a saturation magnetization of 44.1 emu g. To evaluate the extraction performance of MMP/ZIF-8, the main parameters that affect the extraction efficiency were optimized. Under the optimal conditions, the developed method shows good linearity ( ≥ 0.9915) in the concentration range 1-400 μg L. Low limits of detection (0.08-0.27 μg L, signal/noise = 3 : 1) and good precision (intraday relative standard deviation ≤ 7.73%, interday relative standard deviation ≤ 9.65%) are also achieved. The developed method was applied for analysis of triazole fungicides in environmental water samples.
一种新型磁性锌基沸石咪唑酯骨架材料(MMP/ZIF-8)已通过使用磁性多壁碳纳米管@聚多巴胺纳米复合材料作为磁芯和载体而制备出来。然后将其用作吸附剂,用于从环境水样中磁性固相萃取三唑类杀菌剂。通过材料表征证实了MMP/ZIF-8的成功合成,结果表明合成的复合材料具有较高的布鲁诺尔-埃米特-泰勒比表面积(141.56 m²/g)、较大的总孔体积(0.636 mL/g)以及高达44.1 emu/g的饱和磁化强度的高超顺磁性。为了评估MMP/ZIF-8的萃取性能,对影响萃取效率的主要参数进行了优化。在最佳条件下,所建立的方法在1-400 μg/L的浓度范围内具有良好的线性(r≥0.9915)。还实现了低检测限(0.08-0.27 μg/L,信噪比=3:1)和良好的精密度(日内相对标准偏差≤7.73%,日间相对标准偏差≤9.65%)。所建立的方法应用于环境水样中三唑类杀菌剂的分析。
