Ortelli Simona, Costa Anna L, Matteucci Pietro, Miller Mark R, Blosi Magda, Gardini Davide, Tofail Syed A M, Tran Lang, Tonelli Domenica, Poland Craig A
CNR-ISTEC, Institute of Science and Technology for Ceramics - National Research Council of Italy Via Granarolo 64 I-48018 Faenza RA Italy
Department of Industrial Chemistry, University of Bologna Viale del Risorgimento 4 40136 Bologna Italy.
RSC Adv. 2018 Dec 4;8(70):40369-40377. doi: 10.1039/c8ra07374k. eCollection 2018 Nov 28.

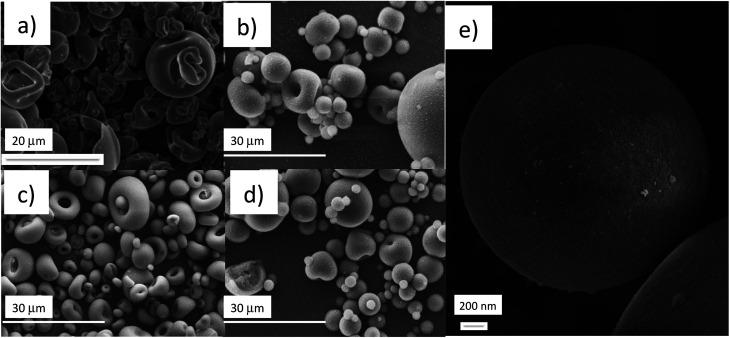

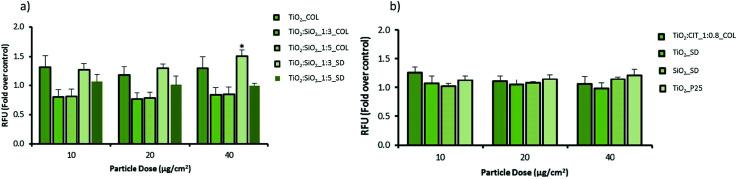

Titania (TiO) nanoparticles were surface modified using silica and citrate to implement a 'safe-by-design' approach for managing potential toxicity of titania nanoparticles by controlling surface redox reactivity. DLS and zeta-potential analyses confirmed the surface modification, and electron microscopy and surface area measurements demonstrated nanoscale dimensions of the particles. Electron paramagnetic resonance (EPR) was used to determine the exogenous generation of reactive oxygen species (ROS). All the produced spray dried nanotitania lowered levels of ROS when compared to the corresponding dispersed nanotitania, suggesting that the spray drying process is an appropriate design strategy for the control of nano TiO ROS reactivity. The modification of nanotitania with silica and with citrate resulted in increased levels of ROS generation in exogenous measurements, including photoexcitation for 60 minutes. The dichlorodihydrofluorescein (DCFH) assay of dose-dependent production of oxidative stress, generated by pristine and modified nanotitania in macrophages and alveolar epithelial cells, found no significant change in toxicity originating from the generation of reactive oxygen species. Our findings show that there is no direct correlation between the photocatalytic activity of nanotitania and its oxidative stress-mediated potential toxicity, and it is possible to improve the former, for example adding silica as a modifying agent, without altering the cell redox equilibrium.
使用二氧化硅和柠檬酸盐对二氧化钛(TiO)纳米颗粒进行表面改性,以通过控制表面氧化还原反应性来实施“设计安全”方法,从而管理二氧化钛纳米颗粒的潜在毒性。动态光散射(DLS)和zeta电位分析证实了表面改性,电子显微镜和表面积测量表明了颗粒的纳米级尺寸。电子顺磁共振(EPR)用于确定活性氧(ROS)的外源性产生。与相应的分散纳米二氧化钛相比,所有制备的喷雾干燥纳米二氧化钛均降低了ROS水平,这表明喷雾干燥过程是控制纳米TiO ROS反应性的合适设计策略。用二氧化硅和柠檬酸盐对纳米二氧化钛进行改性,在外源性测量中,包括60分钟的光激发,导致ROS生成水平增加。对原始和改性纳米二氧化钛在巨噬细胞和肺泡上皮细胞中产生的氧化应激的剂量依赖性产生进行的二氯二氢荧光素(DCFH)测定发现,由活性氧生成引起的毒性没有显著变化。我们的研究结果表明,纳米二氧化钛的光催化活性与其氧化应激介导的潜在毒性之间没有直接相关性,并且可以在不改变细胞氧化还原平衡的情况下改善前者,例如添加二氧化硅作为改性剂。
