超声辅助注射型聚合物壳层相变纳米液滴的碳离子剂量学和射程测量:体外研究。
Ultrasound-assisted carbon ion dosimetry and range measurement using injectable polymer-shelled phase-change nanodroplets: in vitro study.
机构信息
Department of Chemical Science and Technologies, University of Rome Tor Vergata, 00133, Rome, Italy.
National Institute for Nuclear Physics, INFN Sez. Roma Tor Vergata, 00133, Rome, Italy.
出版信息
Sci Rep. 2022 May 14;12(1):8012. doi: 10.1038/s41598-022-11524-x.

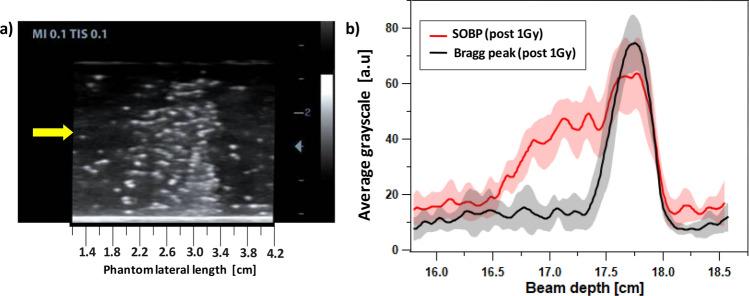

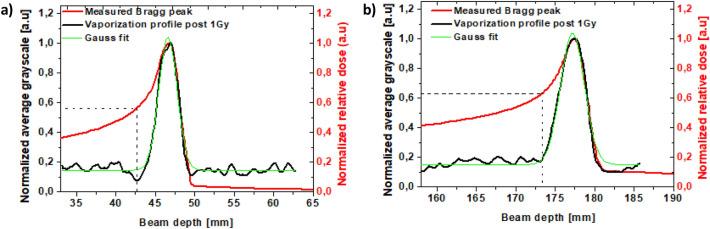

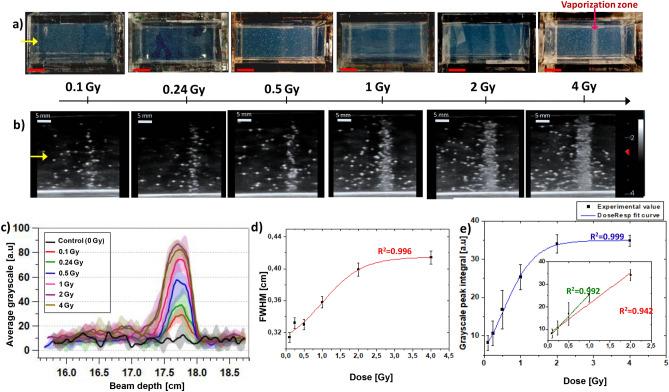

Methods allowing for in situ dosimetry and range verification are essential in radiotherapy to reduce the safety margins required to account for uncertainties introduced in the entire treatment workflow. This study suggests a non-invasive dosimetry concept for carbon ion radiotherapy based on phase-change ultrasound contrast agents. Injectable nanodroplets made of a metastable perfluorobutane (PFB) liquid core, stabilized with a crosslinked poly(vinylalcohol) shell, are vaporized at physiological temperature when exposed to carbon ion radiation (C-ions), converting them into echogenic microbubbles. Nanodroplets, embedded in tissue-mimicking phantoms, are exposed at 37 °C to a 312 MeV/u clinical C-ions beam at different doses between 0.1 and 4 Gy. The evaluation of the contrast enhancement from ultrasound imaging of the phantoms, pre- and post-irradiation, reveals a significant radiation-triggered nanodroplets vaporization occurring at the C-ions Bragg peak with sub-millimeter shift reproducibility and dose dependency. The specific response of the nanodroplets to C-ions is further confirmed by varying the phantom position, the beam range, and by performing spread-out Bragg peak irradiation. The nanodroplets' response to C-ions is influenced by their concentration and is dose rate independent. These early findings show the ground-breaking potential of polymer-shelled PFB nanodroplets to enable in vivo carbon ion dosimetry and range verification.

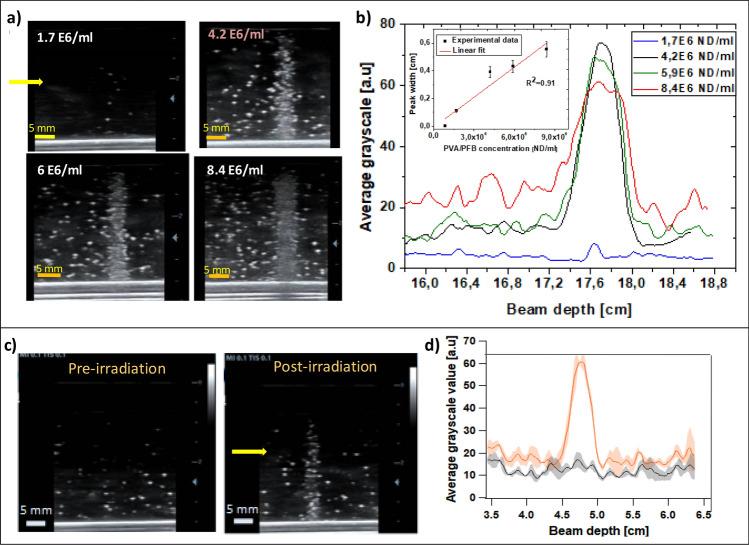

方法允许在原地剂量测定和范围验证是必不可少的在放射治疗中,以减少所需的安全边际,以说明在整个治疗过程中引入的不确定性。本研究提出了一种基于相变型超声造影剂的碳离子放射治疗的非侵入性剂量测定概念。由亚稳态全氟丁烷(PFB)液体芯制成的可注射纳米液滴,用交联的聚乙烯醇(PVA)壳稳定,在生理温度下暴露于碳离子辐射(C-离子)时会蒸发,将其转化为声敏微泡。纳米液滴嵌入组织模拟体模中,在 37°C 下用 312 MeV/u 的临床 C-离子束照射不同剂量,剂量范围在 0.1 到 4 Gy 之间。对体模超声成像前后的对比增强进行评估,结果表明,在 C-离子布拉格峰处发生了显著的辐射触发的纳米液滴蒸发,具有亚毫米的重现性和剂量依赖性的位移。通过改变体模位置、射束范围和进行扩展布拉格峰照射,进一步证实了纳米液滴对 C-离子的特异性反应。纳米液滴对 C-离子的反应受其浓度的影响,与剂量率无关。这些早期发现显示了聚合物壳全氟丁烷纳米液滴在体内碳离子剂量测定和范围验证中的突破性潜力。
