POLYMAT, University of the Basque Country UPV/EHU, Avenida Tolosa 72, 20018 Donostia-San Sebastian, Gipuzkoa, Spain.
Center for Cooperative Research in Biomaterials (CIC biomaGUNE), Basque Research and Technology Alliance (BRTA), 20014 Donostia-San Sebastián, Spain.
ACS Macro Lett. 2022 Mar 15;11(3):303-309. doi: 10.1021/acsmacrolett.1c00758. Epub 2022 Feb 10.

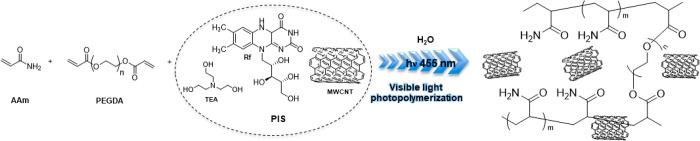

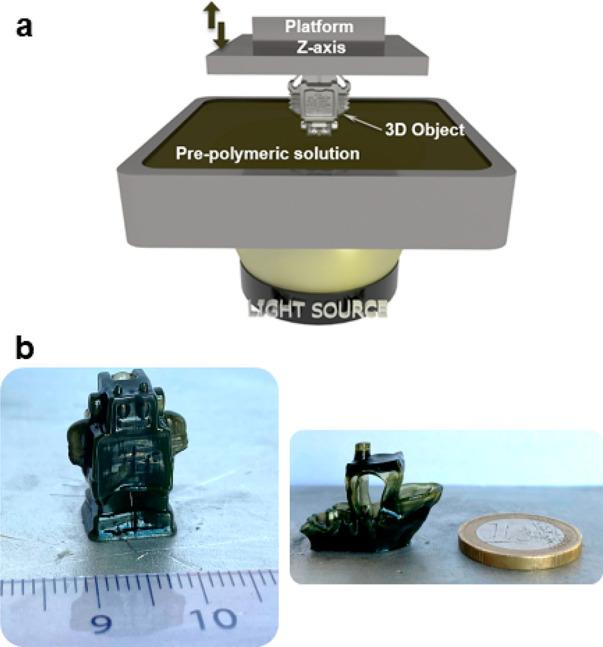

A new photoinitiator system (PIS) based on riboflavin (Rf), triethanolamine, and multiwalled carbon nanobutes (MWCNTs) is presented for visible-light-induced photopolymerization of acrylic monomers. Using this PIS, photopolymerization of acrylamide and other acrylic monomers was quantitative in seconds. The intervention mechanism of CNTs in the PIS was studied deeply, proposing a surface interaction of MWCNTs with Rf which favors the radical generation and the initiation step. As a result, polyacrylamide/MWCNT hydrogel nanocomposites could be obtained with varying amounts of CNTs showing excellent mechanical, thermal, and electrical properties. The presence of the MWCNTs negatively influences the swelling properties of the hydrogel but significantly improves its mechanical properties (Young modulus values) and electric conductivity. The new PIS was tested for 3D printing in a LCD 3D printer. Due to the fast polymerizations, 3D-printed objects based on the conductive polyacrylamide/CNT nanocomposites could be manufactured in minutes.
一种基于核黄素(Rf)、三乙醇胺和多壁碳纳米管(MWCNTs)的新型光引发剂系统(PIS)被提出用于可见光引发的丙烯酸单体光聚合。使用这种 PIS,丙烯酰胺和其他丙烯酸单体在几秒钟内即可完全聚合。深入研究了 CNTs 在 PIS 中的干预机制,提出了 MWCNTs 与 Rf 的表面相互作用,有利于自由基的生成和引发步骤。因此,可以获得具有不同 CNTs 含量的聚丙烯酰胺/MWCNT 水凝胶纳米复合材料,表现出优异的机械、热和电性能。MWCNTs 的存在会对水凝胶的溶胀性能产生负面影响,但会显著提高其机械性能(杨氏模量值)和电导率。新的 PIS 已在 LCD 3D 打印机中进行了 3D 打印测试。由于聚合速度很快,几分钟内即可制造出基于导电聚丙烯酰胺/CNT 纳米复合材料的 3D 打印物体。
