Evaluation of Micro-Tensile Bond Strength of Fibre Post with Titanium Dioxide Nanoparticles as Fillers in Experimental Dental Composite Resin.

BACKGROUND

The clinical success of post-core restorations is determined by the composite utilized and the strength of the post-core adhesion. The effectiveness of titanium dioxide nanoparticles (TiO NPs) as a multifunctional material with photo-induced activities and better mechanical characteristics are observed as particle size is reduced to under 50 nm.

AIM

The purpose of this study is to determine the bond strength of fibre-reinforced composite (FRC) posts with TiO NP as fillers and to compare it with conventional composite resin core material.

MATERIALS AND METHODS

30 single-rooted mandibular premolars were selected and routine root canal procedures were done. A quantity of 5% TiO NPs were synthesized and added as silanized filler to the experimental composite resin. Post space was prepared and fibre-reinforced composite (FRC) post luting was performed. The specimens were then grouped into the following groups: Group I consisted of the experimental composite resin containing 5% TiO fillers, Group II consisted of core X flow, and Group III consisted of Multicore Flow. All test groups were submitted for thermocycling. After this, the samples were tested for micro tensile bond strength. A stereomicroscope with a magnification of 20× was used to examine the fractured surfaces. The data were analysed using one-way ANOVA and Tukey HSD tests.

RESULTS

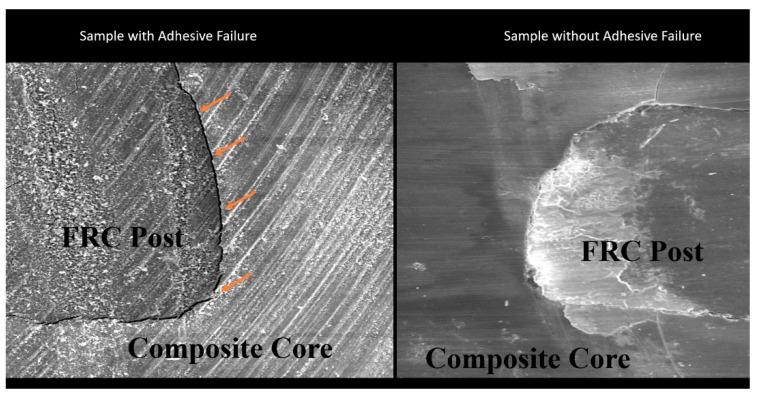

Statistical analysis revealed that Group I showed the highest mean bond strength value of 35.6180 Mpa. The results obtained with Group III showed the lowest mean bond strength value of 19.4690 Mpa. Adhesive failures were identified by stereomicroscopy of the fractured surfaces.

CONCLUSION

The experimental composite resin comprising 5% TiO NP had a greater bond to the FRC post than other materials tested.
