Texture analysis of T2-weighted cardiovascular magnetic resonance imaging to discriminate between cardiac amyloidosis and hypertrophic cardiomyopathy.

BACKGROUND

To elucidate the value of texture analysis (TA) in detecting and differentiating myocardial tissue alterations on T2-weighted CMR (cardiovascular magnetic resonance imaging) in patients with cardiac amyloidosis (CA) and hypertrophic cardiomyopathy (HCM).

METHODS

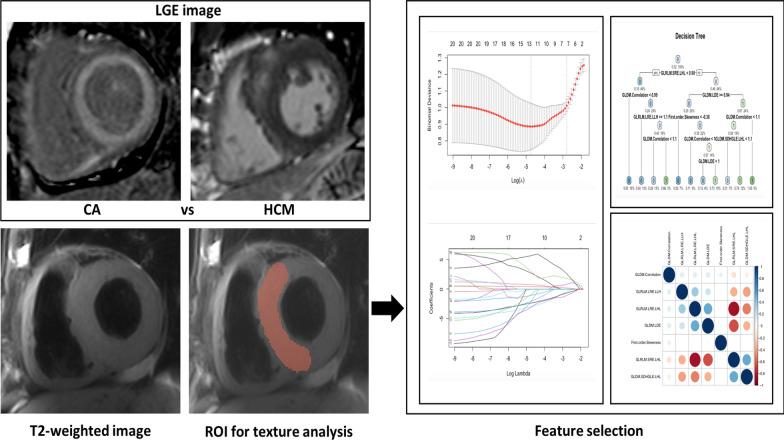

In this retrospective study, 100 CA (58.5 ± 10.7 years; 41 (41%) females) and 217 HCM (50.7 ± 14.8 years, 101 (46.5%) females) patients who underwent CMR scans were included. Regions of interest for TA were delineated by two radiologists independently on T2-weighted imaging (T2WI). Stepwise dimension reduction and texture feature selection based on reproducibility, machine learning algorithms, and correlation analyses were performed to select features. Both the CA and HCM groups were randomly divided into a training dataset and a testing dataset (7:3). After the TA model was established in the training set, the diagnostic performance of the model was validated in the testing set and further validated in a subgroup of patients with similar hypertrophy.

RESULTS

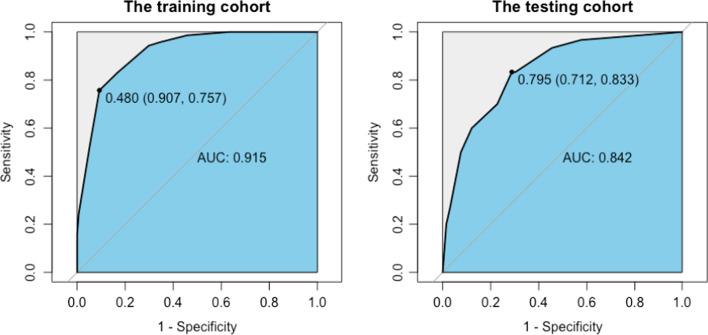

The 7 independent texture features provided, in combination, a diagnostic accuracy of 86.0% (AUC = 0.915; 95% CI 0.879-0.951) in the training dataset and 79.2% (AUC = 0.842; 95% CI 0.759-0.924) in the testing dataset. The differential diagnostic accuracy in the similar hypertrophy subgroup was 82.2% (AUC = 0.864, 95% CI 0.805-0.922). The significance of the difference between the AUCs of the TA model and late gadolinium enhancement (LGE) was verified by Delong's test (p = 0.898). All seven texture features showed significant differences between CA and HCM (all p < 0.001).

CONCLUSIONS

Our study demonstrated that texture analysis based on T2-weighted images could feasibly differentiate CA from HCM, even in patients with similar hypertrophy. The selected final texture features could achieve a comparable diagnostic capacity to the quantification of LGE. Trial registration Since this study is a retrospective observational study and no intervention had been involved, trial registration is waived.
