Septoplasty Effect on the Enhancement of Airflow Distribution and Particle Deposition in Nasal Cavity: A Numerical Study.

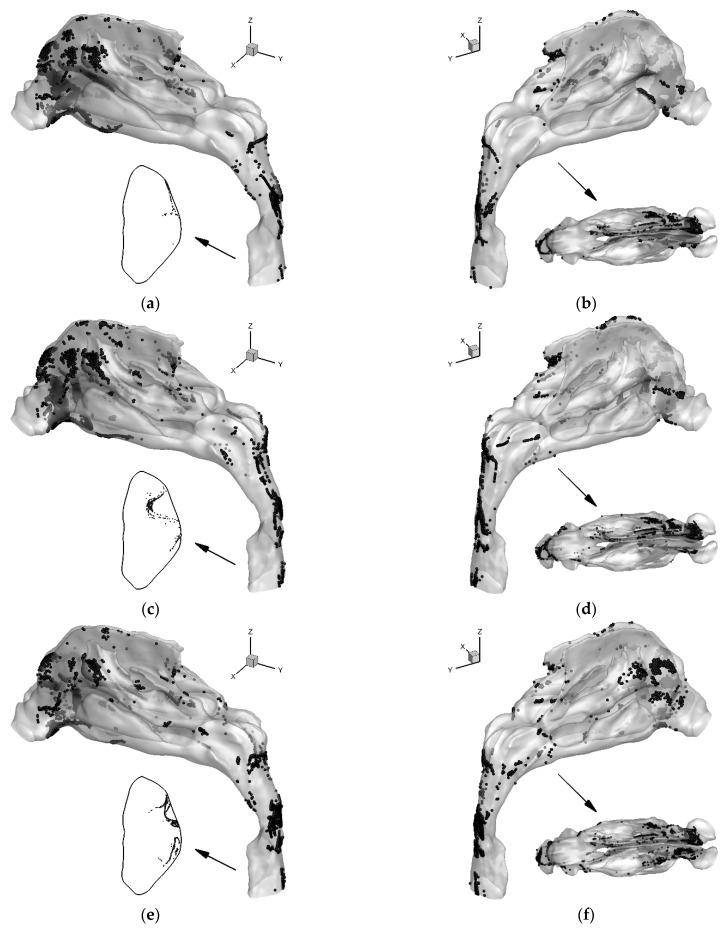

The surgery outcomes after fixing nasal airway obstruction (NAO) are sometimes not satisfactory in improving ventilations of airflow. A case study is presented in this paper with computational fluid dynamics applied to determine the key factors for successful septoplasty plans for a patient with a deviated nasal septum. Specifically, airflow, as well as particle transport and deposition were predicted in a pre-surgery nasal cavity model reconstructed from patient-specific Computer Tomography (CT) images and two post-surgery nasal cavity models (i.e., VS1 and VS2) with different virtual surgery plans A and B. Plan A corrected the deviated septal cartilage, the perpendicular plate of the ethmoid bone, vomer, and nasal crest of the maxilla. Plan B further corrected the obstruction in the nasal vestibule and caudal nasal septal deviation based on Plan A. Simulations were performed in the three nose-to-throat airway models to compare the airflow velocity distributions and local particle depositions. Numerical results indicate that the VS2 model has a better improvement in airflow allocation between the two sides than the VS1 model. In addition, the deposition fractions in the VS2 model are lower than that in both the original and VS1 models, up to 25.32%. The better surgical plan (i.e., Plan B) reduces the particle deposition on the convex side, but slightly increases the deposition on the concave side. However, the overall deposition in the nasal cavity is reduced.
