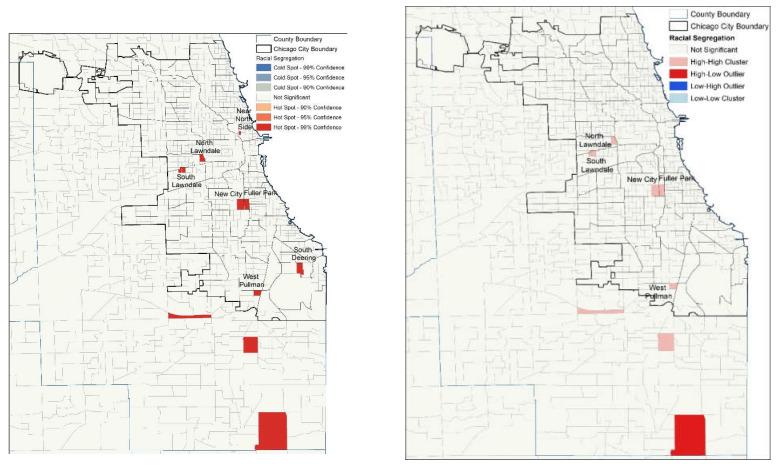

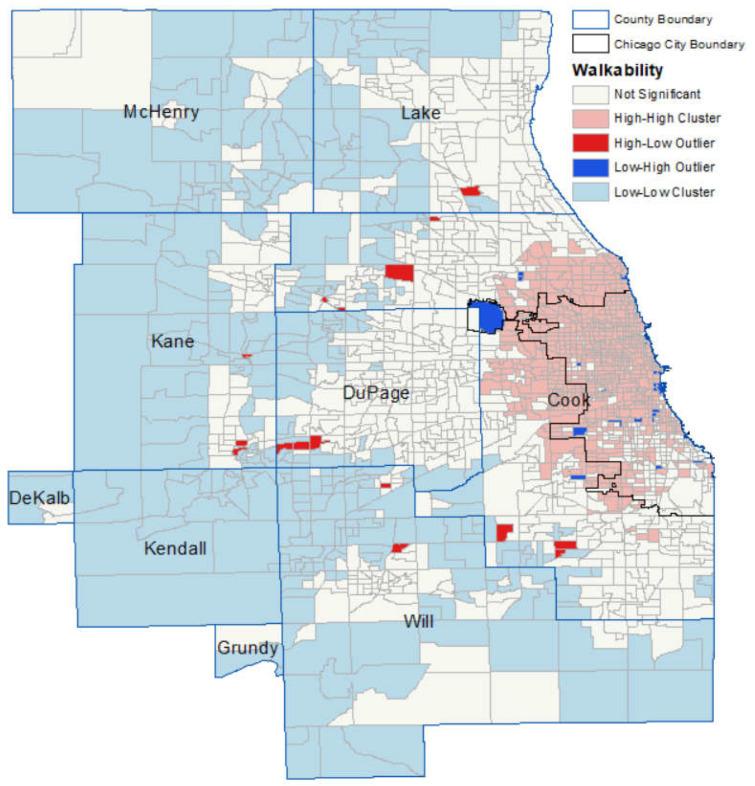

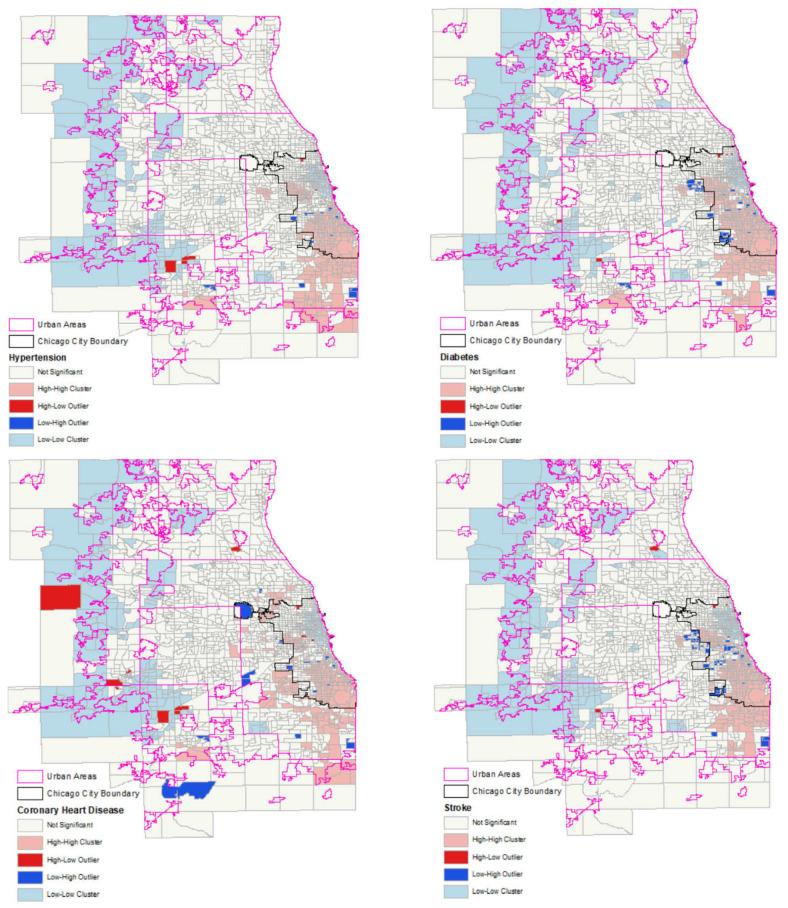

Cardiovascular diseases (CVDs), as the leading cause of death in the U.S., pose a disproportionate burden to racial/ethnic minorities. Walkability, as a key concept of the built environment, reflecting walking and physical activity, is associated with health behaviors that help to reduce CVDs risk. While the unequal social variation and spatial distribution inequality of the CVDs and the role of walkability in preventing CVDs have been explored, the moderating factors through which walkability affects CVDs have not been quantitatively analyzed. In this paper, the spatial statistical techniques combined with the regression model are conducted to study the distribution of the CVDs' health outcomes and factors influencing their variation in the Chicago metropolitan area. The spatial statistical results for the CVDs' health outcomes reveal that clusters of low-value incidence are concentrated in the suburban rural areas and areas on the north side of the city, while the high-value clusters are concentrated in the west and south sides of the city and areas extending beyond the western and southern city boundaries. The regression results indicate that racial segregation reduced the positive association between health outcomes and walkability, although both racial segregation and walkability factors were positively associated with CVDs' health outcomes.
