Pen-Tung Sah Institute of Micro-Nano Science and Technology, Jiujiang Research Institute, National & Local Joint Engineering Research Center of Preparation Technology of Nanomaterials, Innovation Laboratory for Sciences and Technologies of Energy Materials of Fujian Province, College of Chemistry and Chemical Engineering, Xiamen University, Xiamen, 361005, China.
State Key Laboratory of Solidification Processing, Center for Nano Energy Materials, School of Materials Science and Engineering, Northwestern Polytechnical University and Shaanxi Joint Laboratory of Graphene, Xi'an, 710072, China.
Adv Sci (Weinh). 2022 Dec;9(36):e2204017. doi: 10.1002/advs.202204017. Epub 2022 Nov 13.

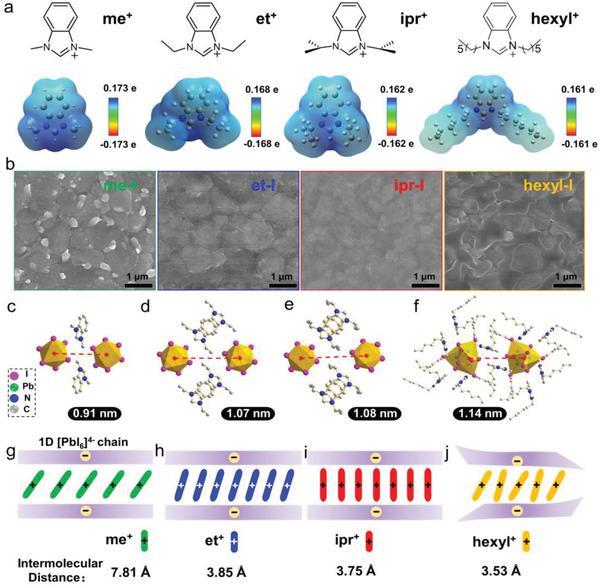

Although the perovskite solar cells have been developed rapidly, the industrialization of perovskite photovoltaics is still facing challenges, especially considering their stability issues. Here, the new type of benzimidazolium salt, N,N'-dialkylbenzimidazolium iodide, is proposed and functionalized to convert the three-dimensional (3D) FACs-perovskite films into one-dimensional (1D) capping layer topped 1D/3D structure either in individual device or module levels. This conformal interface modulation demonstrates that not only can effectively stabilize FACs-based perovskite films by inhibiting the lateral and vertical iodide diffusions in devices or modules, ensuring an excellent operation and environmental stability, but also provides an excellent charge transporting channel through the well-designed 1D crystal structure. Consequently, efficient device performance with power conversion efficiency up to 24.3% is readily achieved. And the large-area perovskite solar modules with high efficiency (19.6% for the active areas of 18 cm ) and long-term stability (about 500 h in AM 1.5G illumination or about 1000 h under double-85 conditions) are also successfully verified.
尽管钙钛矿太阳能电池发展迅速,但钙钛矿光伏的产业化仍面临挑战,尤其是考虑到其稳定性问题。在这里,提出并功能化了新型苯并咪唑盐 N,N'-二烷基苯并咪唑碘化物,将三维(3D)FACs-钙钛矿薄膜转化为一维(1D)盖帽层,在单个器件或模块级别上覆盖 1D/3D 结构。这种共形界面调制表明,它不仅可以通过抑制器件或模块中横向和纵向碘化物的扩散来有效稳定基于 FACs 的钙钛矿薄膜,确保优异的工作和环境稳定性,而且还可以通过精心设计的 1D 晶体结构提供优异的电荷输运通道。因此,可以轻松实现高效的器件性能,功率转换效率高达 24.3%。此外,还成功验证了大面积钙钛矿太阳能模块的高效率(18 cm²有效面积为 19.6%)和长期稳定性(在 AM 1.5G 照明下约 500 小时或在双 85 条件下约 1000 小时)。
