Wei Ning, Miao Yanfeng, Wang Xingtao, Qin Zhixiao, Liu Xiaomin, Chen Haoran, Wang Haifei, Liang Yugang, Wang Shaowei, Zhao Yixin, Chen Yuetian
School of Environmental Science and Engineering, Frontiers Science Center for Transformative Molecules, Shanghai Jiao Tong University, Shanghai 200240, China.
Shanghai Non-carbon Energy Conversion and Utilization Institute, Shanghai 200240, China.
JACS Au. 2023 Nov 21;3(12):3324-3332. doi: 10.1021/jacsau.3c00469. eCollection 2023 Dec 25.

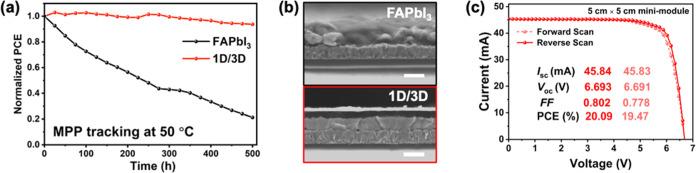

For achieving high-efficiency perovskite solar cells, it is almost always necessary to substantially passivate defects and protect the perovskite structure at its interfaces with charge transport layers. Such a modification generally involves the post-treatment of the deposited perovskite film by spin coating, which cannot meet the technical demands of scaling up the production of perovskite photovoltaics. In this work, we demonstrate one-step construction of buried and capped double 1D/3D heterojunctions without the need for any post-treatment, which is achieved through facile tetraethylammonium trifluoroacetate (TEATFA) prefunctionalization on the SnO substrate. The functional TEATFA salt is first deposited onto the SnO substrate and reacts on this buried interface. Once the FAPbI perovskite precursor solution is dripped, a portion of the TEA cations spontaneously diffuse to the top surface over film crystallization. The TEATFA-based water-resistant 1D/3D TEAPbI/FAPbI heterojunctions at both the buried and capped interfaces lead to much better photovoltaic performance and higher operational stability. Since this approach saves the need for any postsynthesis passivation, its feasibility for the fabrication of large-area perovskite photovoltaics is also showcased. Compared to ∼15% for a pristine 5 cm × 5 cm FAPbI mini-module without postsynthesis passivation, over 20% efficiency is achieved following the proposed route, demonstrating its great potential for larger-scale fabrication with fewer processing steps.
为了实现高效钙钛矿太阳能电池,几乎总是需要大量钝化缺陷并在其与电荷传输层的界面处保护钙钛矿结构。这种改性通常涉及通过旋涂对沉积的钙钛矿薄膜进行后处理,这无法满足扩大钙钛矿光伏生产的技术要求。在这项工作中,我们展示了无需任何后处理即可一步构建掩埋和覆盖的双1D/3D异质结,这是通过在SnO衬底上进行简便的三氟乙酸四乙铵(TEATFA)预功能化实现的。功能性TEATFA盐首先沉积在SnO衬底上并在这个掩埋界面上反应。一旦滴加FAPbI钙钛矿前驱体溶液,一部分TEA阳离子会在薄膜结晶过程中自发扩散到顶表面。在掩埋和覆盖界面处基于TEATFA的防水1D/3D TEAPbI/FAPbI异质结导致更好的光伏性能和更高的运行稳定性。由于这种方法无需任何合成后钝化,因此也展示了其在制造大面积钙钛矿光伏电池方面的可行性。与未经合成后钝化的5 cm×5 cm原始FAPbI微型模块约15%的效率相比,采用所提出的路线后效率超过20%,证明了其在更少加工步骤下进行更大规模制造的巨大潜力。
