Senyurek Volkan, Imtiaz Masudul, Belsare Prajakta, Tiffany Stephen, Sazonov Edward
Geosystems Research Institute, Mississippi State University, Starkville, MS 39759, USA.
Department of Electrical and Computer Engineering, Clarkson University, Postdam, NY 13699, USA.
Signals (Basel). 2021 Mar;2(1):87-97. doi: 10.3390/signals2010008. Epub 2021 Feb 9.

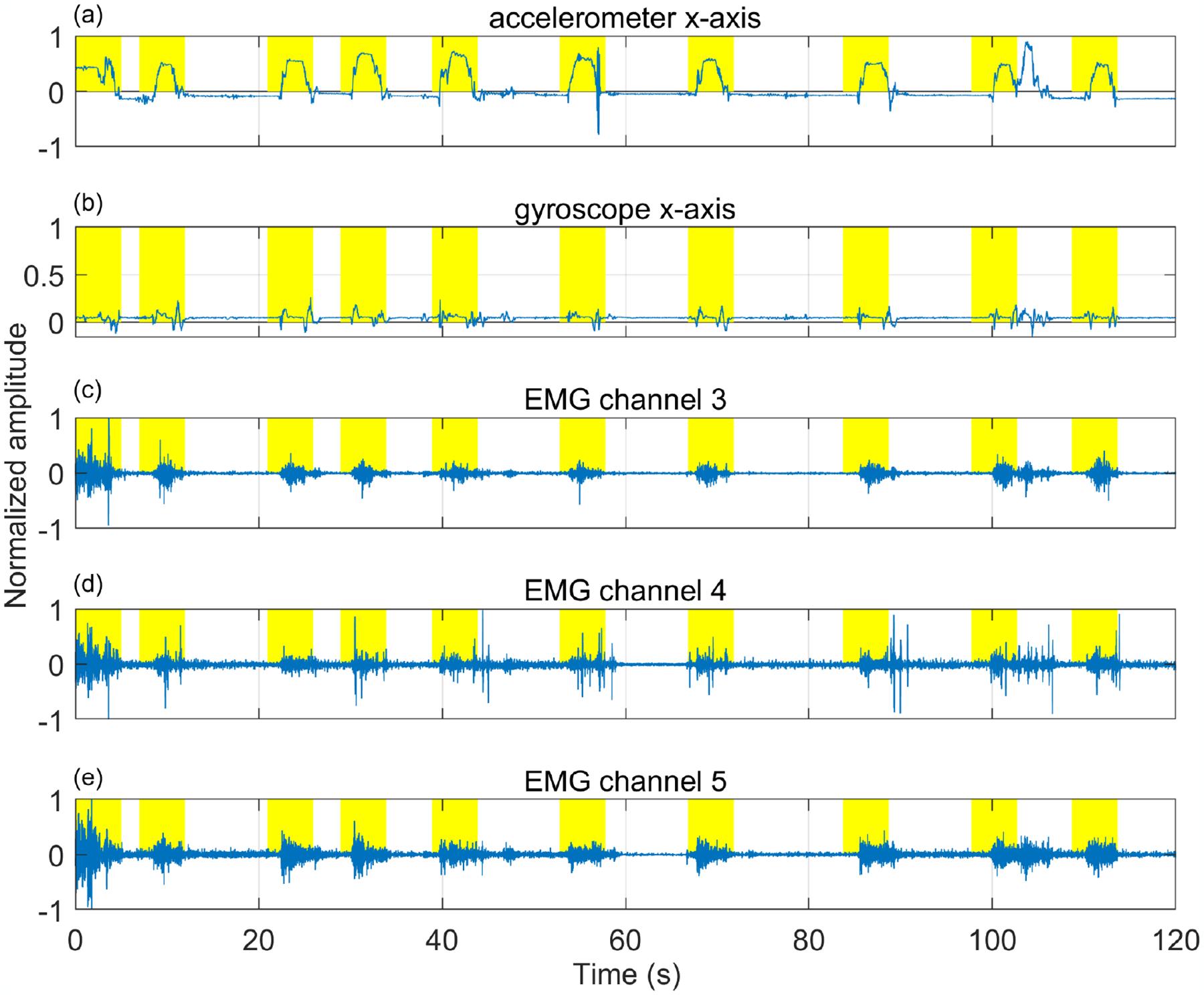

In this study, information from surface electromyogram (sEMG) signals was used to recognize cigarette smoking. The sEMG signals collected from lower arm were used in two different ways: (1) as an individual predictor of smoking activity and (2) as an additional sensor/modality along with the inertial measurement unit (IMU) to augment recognition performance. A convolutional and a recurrent neural network were utilized to recognize smoking-related hand gestures. The model was developed and evaluated with leave-one-subject-out (LOSO) cross-validation on a dataset from 16 subjects who performed ten activities of daily living including smoking. The results show that smoking detection using only sEMG signal achieved an F1-score of 75% in person-independent cross-validation. The combination of sEMG and IMU improved reached the F1-score of 84%, while IMU alone sensor modality was 81%. The study showed that using only sEMG signals would not provide superior cigarette smoking detection performance relative to IMU signals. However, sEMG improved smoking detection results when combined with IMU signals without using an additional device.
在本研究中,来自表面肌电图(sEMG)信号的信息被用于识别吸烟行为。从下臂采集的sEMG信号以两种不同方式使用:(1)作为吸烟活动的个体预测指标;(2)作为与惯性测量单元(IMU)一起的额外传感器/模态,以增强识别性能。利用卷积神经网络和循环神经网络来识别与吸烟相关的手部动作。该模型是在一个来自16名受试者的数据集上,通过留一受试者法(LOSO)交叉验证进行开发和评估的,这些受试者进行了包括吸烟在内的十项日常生活活动。结果表明,在独立于个体的交叉验证中,仅使用sEMG信号进行吸烟检测的F1分数达到了75%。sEMG和IMU的组合使F1分数提高到了84%,而仅使用IMU传感器模态时为81%。该研究表明,相对于IMU信号,仅使用sEMG信号不会提供更优的吸烟检测性能。然而,在不使用额外设备的情况下,sEMG与IMU信号结合时可改善吸烟检测结果。
