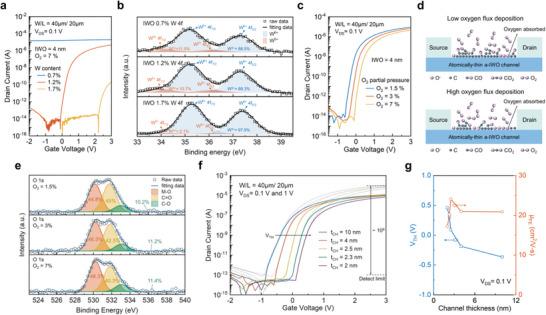

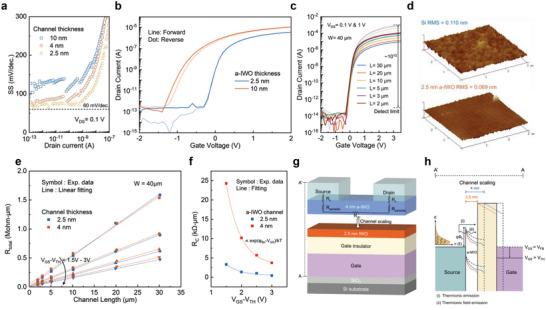

In this work, the authors demonstrate a novel vertically-stacked thin film transistor (TFT) architecture for heterogeneously complementary inverter applications, composed of p-channel polycrystalline silicon (poly-Si) and n-channel amorphous indium tungsten oxide (a-IWO), with a low footprint than planar structure. The a-IWO TFT with channel thickness of approximately 3-4 atomic layers exhibits high mobility of 24 cm V s , near ideally subthreshold swing of 63 mV dec , low leakage current below 10 A, high on/off current ratio of larger than 10 , extremely small hysteresis of 0 mV, low contact resistance of 0.44 kΩ-µm, and high stability after encapsulating a passivation layer. The electrical characteristics of n-channel a-IWO TFT are well-matched with p-channel poly-Si TFT for superior complementary metal-oxide-semiconductor technology applications. The inverter can exhibit a high voltage gain of 152 V V at low supply voltage of 1.5 V. The noise margin can be up to 80% of supply voltage and perform the symmetrical window. The pico-watt static power consumption inverter is achieved by the wide energy bandgap of a-IWO channel and atomically-thin channel. The vertically-stacked complementary field-effect transistors (CFET) with high energy-efficiency can increase the circuit density in a chip to conform the development of next-generation semiconductor technology.
在这项工作中,作者展示了一种新颖的垂直堆叠薄膜晶体管(TFT)架构,用于异构互补逆变器应用,由 p 型多晶硅(poly-Si)和 n 型非晶氧化铟钨(a-IWO)组成,比平面结构具有更小的占地面积。具有约 3-4 原子层厚的通道的 a-IWO TFT 具有 24 cm V s 的高迁移率,接近理想的亚阈值摆幅为 63 mV dec ,低于 10 A 的低漏电流,大于 10 的高导通/关断电流比,非常小的 0 mV 滞后,0.44 kΩ-µm 的低接触电阻,以及封装钝化层后的高稳定性。n 通道 a-IWO TFT 的电特性与 p 通道 poly-Si TFT 非常匹配,适用于卓越的互补金属氧化物半导体技术应用。该逆变器可在低 1.5 V 电源电压下表现出 152 V V 的高电压增益。噪声裕量可达电源电压的 80%,并实现对称窗口。通过 a-IWO 通道的宽能隙和原子层薄通道实现了毫微微瓦静态功耗的逆变器。具有高能效的垂直堆叠互补场效应晶体管(CFET)可以增加芯片中的电路密度,以符合下一代半导体技术的发展。
