Validation of a Temperature-Feedback Controlled Automated Magnetic Hyperthermia Therapy Device.

作者信息

Sharma Anirudh, Jangam Avesh, Shen Julian Low Yung, Ahmad Aiman, Arepally Nageshwar, Rodriguez Benjamin, Borrello Joseph, Bouras Alexandros, Kleinberg Lawrence, Ding Kai, Hadjipanayis Constantinos, Kraitchman Dara L, Ivkov Robert, Attaluri Anilchandra

机构信息

Department of Radiation Oncology and Molecular Radiation Sciences, The Johns Hopkins University School of Medicine, Baltimore, MD 21231, USA.

Department of Mechanical Engineering, School of Science, Engineering, and Technology, The Pennsylvania State University-Harrisburg, Harrisburg, PA 17057, USA.

出版信息

Cancers (Basel). 2023 Jan 4;15(2):327. doi: 10.3390/cancers15020327.


DOI:10.3390/cancers15020327
PMID:36672278
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9856953/
Abstract

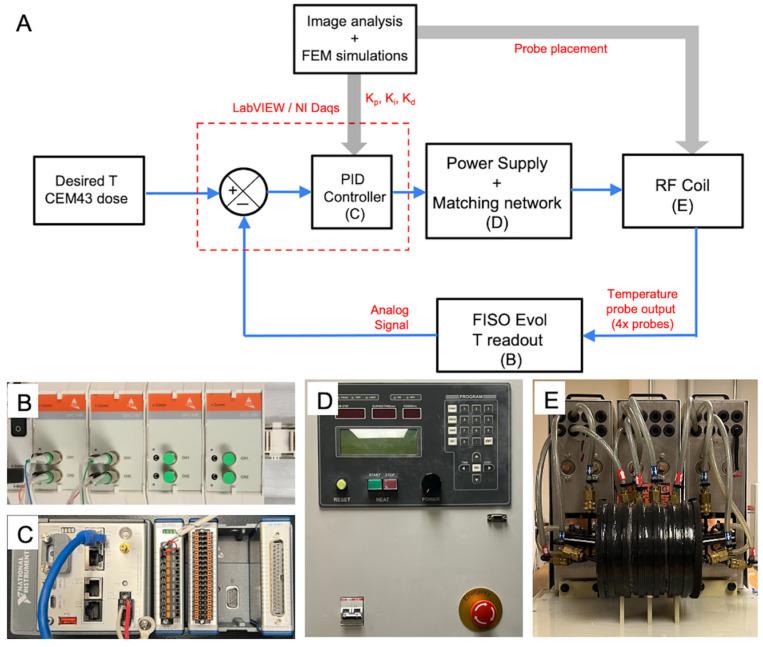

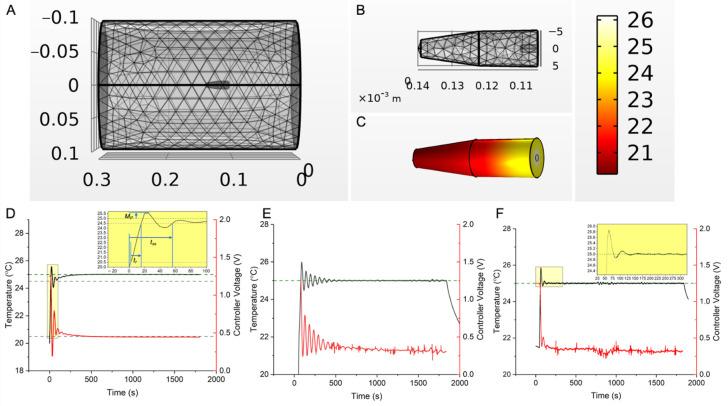

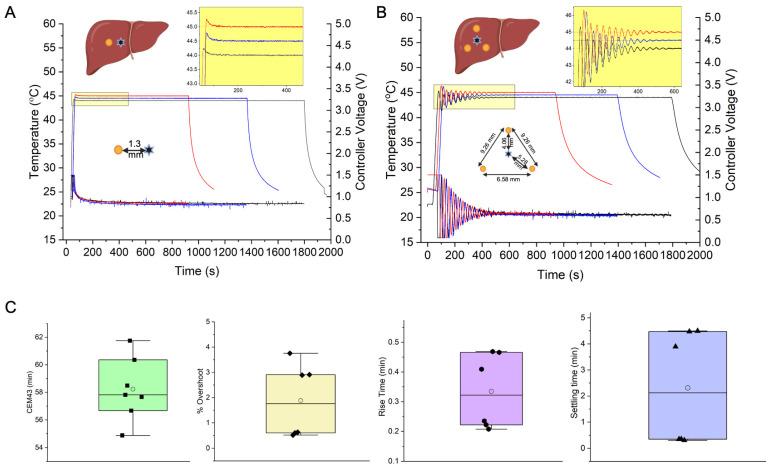

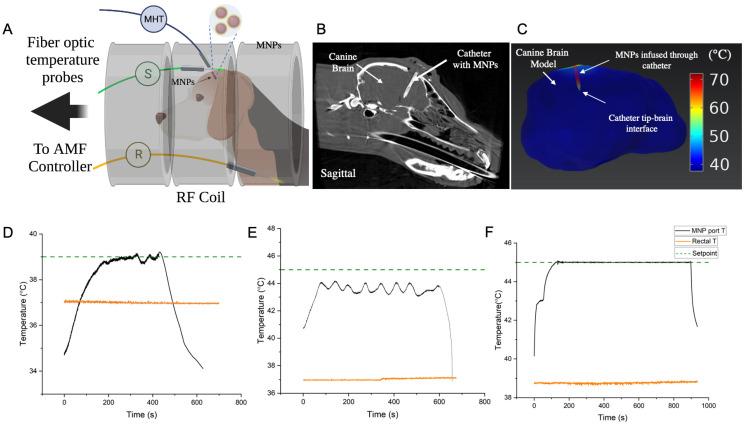

We present in vivo validation of an automated magnetic hyperthermia therapy (MHT) device that uses real-time temperature input measured at the target to control tissue heating. MHT is a thermal therapy that uses heat generated by magnetic materials exposed to an alternating magnetic field. For temperature monitoring, we integrated a commercial fiber optic temperature probe containing four gallium arsenide (GaAs) temperature sensors. The controller device used temperature from the sensors as input to manage power to the magnetic field applicator. We developed a robust, multi-objective, proportional-integral-derivative (PID) algorithm to control the target thermal dose by modulating power delivered to the magnetic field applicator. The magnetic field applicator was a 20 cm diameter Maxwell-type induction coil powered by a 120 kW induction heating power supply operating at 160 kHz. Finite element (FE) simulations were performed to determine values of the PID gain factors prior to verification and validation trials. Ex vivo verification and validation were conducted in gel phantoms and sectioned bovine liver, respectively. In vivo validation of the controller was achieved in a canine research subject following infusion of magnetic nanoparticles (MNPs) into the brain. In all cases, performance matched controller design criteria, while also achieving a thermal dose measured as cumulative equivalent minutes at 43 °C (CEM43) 60 ± 5 min within 30 min.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e999/9856953/c1111d45a6d2/cancers-15-00327-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e999/9856953/529b9765cbb3/cancers-15-00327-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e999/9856953/3ce147495a65/cancers-15-00327-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e999/9856953/c6e519a37555/cancers-15-00327-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e999/9856953/c1111d45a6d2/cancers-15-00327-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e999/9856953/529b9765cbb3/cancers-15-00327-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e999/9856953/3ce147495a65/cancers-15-00327-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e999/9856953/c6e519a37555/cancers-15-00327-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e999/9856953/c1111d45a6d2/cancers-15-00327-g004.jpg
