Light-Dermo:一种用于多类皮肤病变诊断的轻量级预训练卷积神经网络。

Light-Dermo: A Lightweight Pretrained Convolution Neural Network for the Diagnosis of Multiclass Skin Lesions.

作者信息

Baig Abdul Rauf, Abbas Qaisar, Almakki Riyad, Ibrahim Mostafa E A, AlSuwaidan Lulwah, Ahmed Alaa E S

机构信息

College of Computer and Information Sciences, Imam Mohammad Ibn Saud Islamic University (IMSIU), Riyadh 11432, Saudi Arabia.

出版信息

Diagnostics (Basel). 2023 Jan 19;13(3):385. doi: 10.3390/diagnostics13030385.


DOI:10.3390/diagnostics13030385
PMID:36766490
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9914027/
Abstract

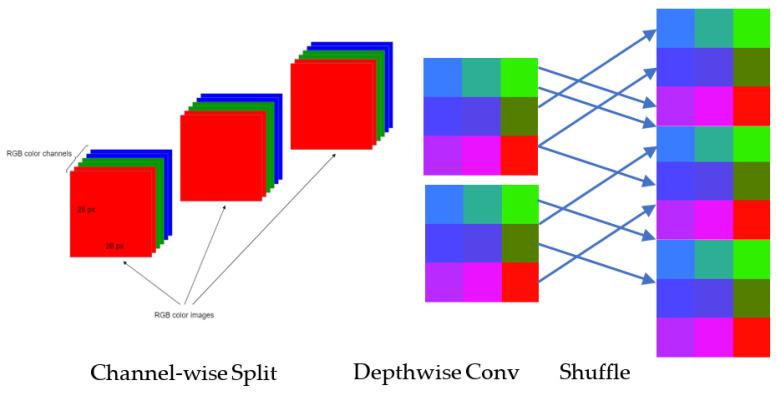

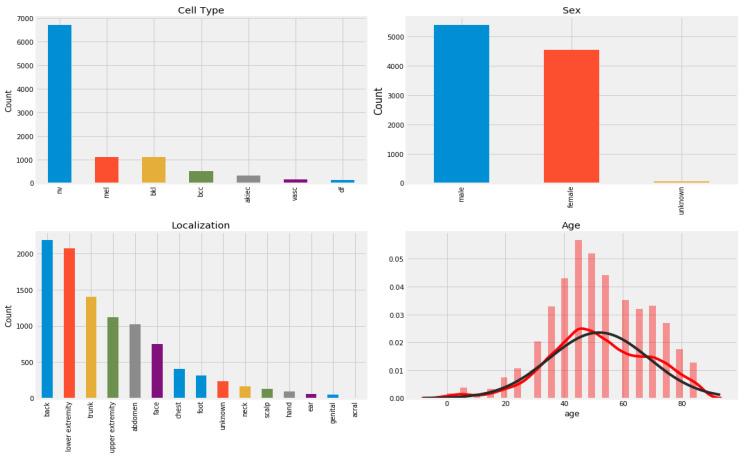

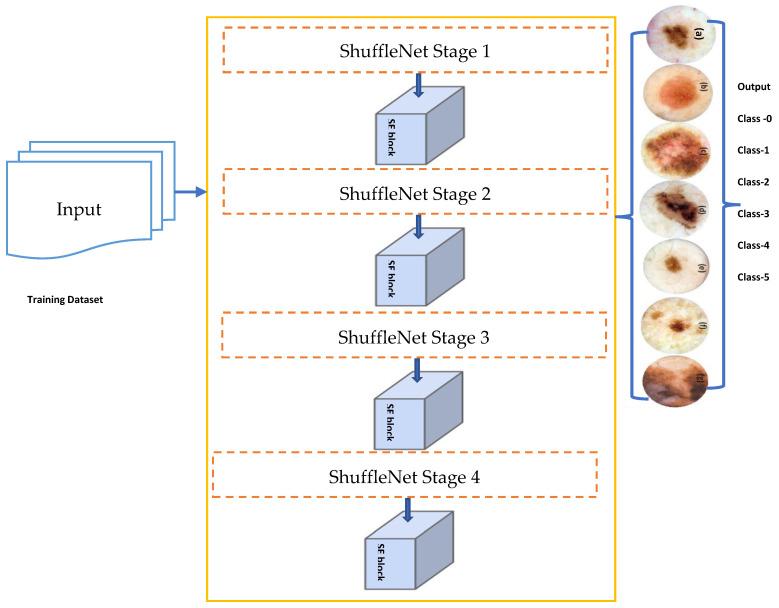

Skin cancer develops due to the unusual growth of skin cells. Early detection is critical for the recognition of multiclass pigmented skin lesions (PSLs). At an early stage, the manual work by ophthalmologists takes time to recognize the PSLs. Therefore, several "computer-aided diagnosis (CAD)" systems are developed by using image processing, machine learning (ML), and deep learning (DL) techniques. Deep-CNN models outperformed traditional ML approaches in extracting complex features from PSLs. In this study, a special transfer learning (TL)-based CNN model is suggested for the diagnosis of seven classes of PSLs. A novel approach (Light-Dermo) is developed that is based on a lightweight CNN model and applies the channelwise attention (CA) mechanism with a focus on computational efficiency. The ShuffleNet architecture is chosen as the backbone, and squeeze-and-excitation (SE) blocks are incorporated as the technique to enhance the original ShuffleNet architecture. Initially, an accessible dataset with 14,000 images of PSLs from seven classes is used to validate the Light-Dermo model. To increase the size of the dataset and control its imbalance, we have applied data augmentation techniques to seven classes of PSLs. By applying this technique, we collected 28,000 images from the HAM10000, ISIS-2019, and ISIC-2020 datasets. The outcomes of the experiments show that the suggested approach outperforms compared techniques in many cases. The most accurately trained model has an accuracy of 99.14%, a specificity of 98.20%, a sensitivity of 97.45%, and an F1-score of 98.1%, with fewer parameters compared to state-of-the-art DL models. The experimental results show that Light-Dermo assists the dermatologist in the better diagnosis of PSLs. The Light-Dermo code is available to the public on GitHub so that researchers can use it and improve it.

摘要

皮肤癌是由于皮肤细胞异常生长而产生的。早期检测对于识别多类色素沉着性皮肤病变(PSL)至关重要。在早期阶段,眼科医生的人工识别PSL需要花费时间。因此,人们利用图像处理、机器学习(ML)和深度学习(DL)技术开发了几种“计算机辅助诊断(CAD)”系统。深度卷积神经网络(Deep-CNN)模型在从PSL中提取复杂特征方面优于传统的ML方法。在本研究中,提出了一种基于特殊迁移学习(TL)的CNN模型用于诊断七类PSL。开发了一种新颖的方法(Light-Dermo),该方法基于轻量级CNN模型,并应用通道注意力(CA)机制,重点关注计算效率。选择ShuffleNet架构作为主干,并引入挤压激励(SE)块作为增强原始ShuffleNet架构的技术。最初,使用一个可访问的数据集,该数据集包含来自七类的14000张PSL图像,用于验证Light-Dermo模型。为了增加数据集的大小并控制其不平衡性,我们对七类PSL应用了数据增强技术。通过应用该技术,我们从HAM10000、ISIS-2019和ISIC-2020数据集中收集了28000张图像。实验结果表明,所提出的方法在许多情况下优于比较技术。训练最准确的模型准确率为99.14%,特异性为98.20%,灵敏度为97.45%,F1分数为98.1%,与最先进的DL模型相比参数更少。实验结果表明,Light-Dermo有助于皮肤科医生更好地诊断PSL。Light-Dermo代码在GitHub上向公众开放,以便研究人员可以使用和改进它。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/361f0ae04893/diagnostics-13-00385-g016.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/d22203f27b0e/diagnostics-13-00385-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/b347e8c85aae/diagnostics-13-00385-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/f4605965828b/diagnostics-13-00385-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/3481067a0c79/diagnostics-13-00385-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/cb0edcc14d41/diagnostics-13-00385-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/ec59a9d2a25d/diagnostics-13-00385-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/5fb87c1b5cf5/diagnostics-13-00385-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/0a337ed1c2cf/diagnostics-13-00385-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/6fb864e00602/diagnostics-13-00385-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/dc4e3cfdac5d/diagnostics-13-00385-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/7e318be08b27/diagnostics-13-00385-g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/291ae3a83b1c/diagnostics-13-00385-g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/5880caa7413c/diagnostics-13-00385-g013.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/3d0bb63bab96/diagnostics-13-00385-g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/35660dc467a8/diagnostics-13-00385-g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/361f0ae04893/diagnostics-13-00385-g016.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/d22203f27b0e/diagnostics-13-00385-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/b347e8c85aae/diagnostics-13-00385-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/f4605965828b/diagnostics-13-00385-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/3481067a0c79/diagnostics-13-00385-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/cb0edcc14d41/diagnostics-13-00385-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/ec59a9d2a25d/diagnostics-13-00385-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/5fb87c1b5cf5/diagnostics-13-00385-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/0a337ed1c2cf/diagnostics-13-00385-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/6fb864e00602/diagnostics-13-00385-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/dc4e3cfdac5d/diagnostics-13-00385-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/7e318be08b27/diagnostics-13-00385-g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/291ae3a83b1c/diagnostics-13-00385-g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/5880caa7413c/diagnostics-13-00385-g013.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/3d0bb63bab96/diagnostics-13-00385-g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/35660dc467a8/diagnostics-13-00385-g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3e5c/9914027/361f0ae04893/diagnostics-13-00385-g016.jpg
