Finger Guilherme, Wu Kyle C, Godil Sanyia S, Carrau Ricardo L, Hardesty Douglas, Prevedello Daniel M
Department of Neurosurgery, The Ohio State University College of Medicine, Columbus, OH, United States.
Department of Otolaryngology and Skull Base Surgery, The Ohio State University Wexner Medical Center, OH, United States.
Front Surg. 2023 Feb 17;10:1073736. doi: 10.3389/fsurg.2023.1073736. eCollection 2023.
INTRODUCTION: Optimal planning and minimally invasive surgical approach are essential to complete craniopharyngiomas (CP) resection with limited postoperative morbidity. Given the nature of craniopharyngioma recurrence, complete resection of the neoplasm is crucial. Since CP arise from the pituitary stalk and may grow anteriorly or laterally, some cases require an extended endonasal craniotomy. The extension of the craniotomy is crucial to expose the whole tumor and to make its dissection from the surrounding structures feasible. In order to guide the extension of the approach, the intraoperative use of ultrasound is helpful for the surgeons. The objective of this paper is to describe and to demonstrate the applicability of the utilization of intraoperative ultrasound (US) guidance for planning and confirmation of craniopharyngioma resection in EES. METHOD: The authors selected one operative video of a sellar-suprassellar craniopharyngioma gross-totally resected by EES. The authors demonstrate the extended sellar craniotomy, the anatomic landmarks that guide bone drilling and dural opening, the aspect of the intraoperative real time US, tumor resection and dissection from the surrounding structures. RESULTS: The solid component of the tumor was mostly isoechogenic in texture compared to the anterior pituitary gland, with several wide spread hyperechogenic images corresponding to calcifications and hypoechogenic vesicles corresponding to cysts inside the CF ("salt-and-pepper" pattern). DISCUSSION: The intraoperative endonasal US is a new surgical tool that allows for real-time active imaging for skull base procedures, such as sellar region tumors. Besides tumor evaluation, the intraoperative US helps the neurosurgeon to determine the size of craniotomy, to anticipate the relation between the tumor and vascular structures and to guide the best strategy for gross-total resection of the tumor. CONCLUSION: The EES allows a straight access to the craniopharyngiomas located in the sellar region or that grow anteriorly or superiorly. This approach allows the surgeon to dissect the tumor with minimal manipulation of the surrounding structures, when compared to craniotomy approaches. In order to accomplish that, the use of intraoperative endonasal ultrasound helps the neurosurgeon to perform the most suitable strategy, optimizing the rate of success.

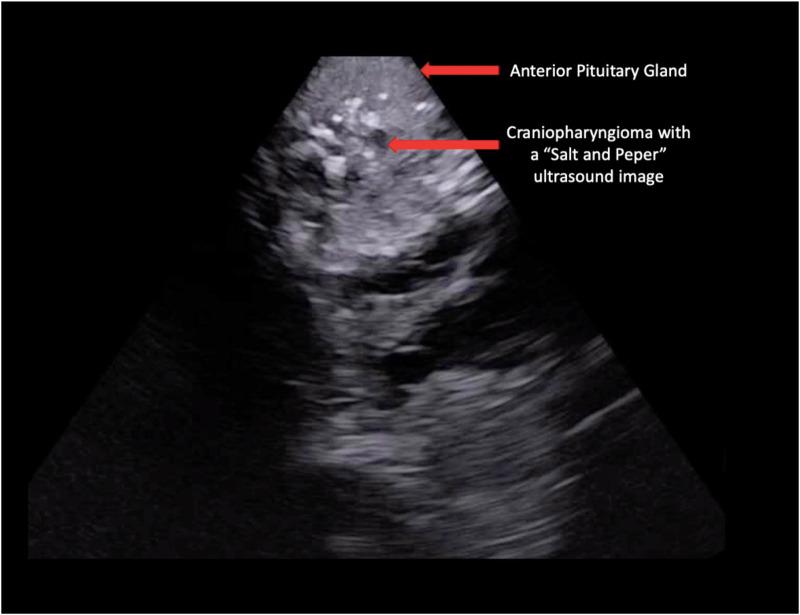

引言:最佳的手术规划和微创外科手术入路对于在术后并发症有限的情况下完成颅咽管瘤(CP)切除至关重要。鉴于颅咽管瘤复发的特性,肿瘤的完整切除至关重要。由于颅咽管瘤起源于垂体柄,且可能向前或向外侧生长,一些病例需要扩大经鼻开颅术。开颅范围的扩大对于暴露整个肿瘤并使其与周围结构的分离可行至关重要。为了指导手术入路的扩展,术中使用超声对手术医生很有帮助。本文的目的是描述并展示术中超声(US)引导在扩大经鼻入路(EES)切除颅咽管瘤的手术规划和确认中的适用性。 方法:作者选择了一段通过EES实现鞍区-鞍上颅咽管瘤全切除手术的视频。作者展示了扩大的鞍区开颅术、指导骨钻孔和硬膜切开的解剖标志、术中实时超声的情况、肿瘤切除以及与周围结构的分离。 结果:与垂体前叶相比,肿瘤的实性部分在质地方面大多呈等回声性,有几个广泛分布且对应钙化的高回声图像以及对应囊性纤维(CF)内囊肿的低回声囊泡(“椒盐”样模式)。 讨论:术中经鼻超声是一种新的手术工具,可用于颅底手术(如鞍区肿瘤)的实时主动成像。除了肿瘤评估外,术中超声还帮助神经外科医生确定开颅范围,预测肿瘤与血管结构的关系,并指导肿瘤全切除的最佳策略。 结论:EES能够直接进入位于鞍区或向前或向上生长的颅咽管瘤。与开颅手术入路相比,这种入路使手术医生在对周围结构进行最小程度操作的情况下分离肿瘤。为了实现这一点,术中经鼻超声的使用有助于神经外科医生执行最合适的策略,提高成功率。
