Xie Yun, Yang Luyu, Dong Hui, Cao Song, Zhang Wenkai, Chen Qiong, Jin Baoliang, Zhou Zhiguo, Liu Jun, He Zhiyan, Wang Ruilan
Department of Intensive Care Unit, Shanghai General Hospital, Shanghai Jiaotong University School of Medicine, Shanghai 201600, China.
Department of Intensive Care Unit, Wuhan Third Hospital, Wuhan University, Wuhan 430060, China.
J Intensive Med. 2021 May 26;1(1):52-58. doi: 10.1016/j.jointm.2021.04.004. eCollection 2021 Jul.
To analyze the correlation between clinical course and radiographic development on computed tomography (CT) in patients with confirmed coronavirus disease 2019 (COVID-19) and to provide more evidence for treatment.

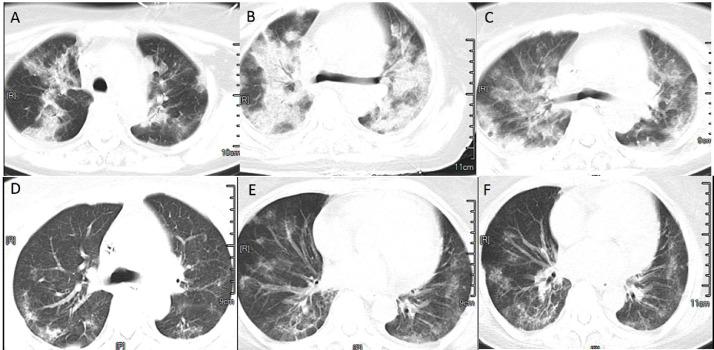

This retrospective, observational, cohort study enrolled 49 patients with Reverse transcription-polymerase chain reaction (RT-PCR)-confirmed COVID-19, which included 30 patients admitted to the intensive care unit (ICU) of Wuhan Third Hospital and 19 patients either admitted to or receiving telemedicine consultation from Shanghai General Hospital, Shanghai Xuhui Dahua Hospital, and hospitals in other provinces. CT scans were performed in all enrolled patients and the radiographic features including simple ground-glass opacities (GGOs), GGO with interlobular septal thickening, consolidations with GGO, and consolidations only were monitored by repeating the CT. The progression of these radiographic features was analyzed in combination with their clinical staging and the time interval between onset of symptoms to CT.
Based on illness severity, the 49 patients were classified into four stages: mild ( = 6), moderate ( = 12), severe ( = 16), and critically ill ( = 15). The CT findings were classified into three phases: early ( = 5), progression ( = 39), and recovery ( = 5). Among the 49 patients, 9 had bilateral diffuse GGO or diffuse consolidations (white lungs) and were counted as 18 lesions. Three patients had no abnormal findings on initial CT, but their repeat CT showed new lesions. In all, we identified 892 lesions including simple GGO, GGO with interlobular septal thickening, consolidations with GGO, and consolidations only.
Most patients had pulmonary lesions on the posterior, inferior, and peripheral lung fields on CT. The development of GGO with interlobular septal thickening, GGO with consolidations, and consolidations only happened mainly between day 8 and 14. The emergence of consolidations may suggest the progression to the severe phase of the illness, whereas simple consolidations or "white lung" may suggest a critically ill phase.
分析新型冠状病毒肺炎(COVID-19)确诊患者的临床病程与计算机断层扫描(CT)影像学表现之间的相关性,为治疗提供更多依据。
本回顾性观察性队列研究纳入了49例经逆转录聚合酶链反应(RT-PCR)确诊的COVID-19患者,其中包括30例入住武汉第三医院重症监护病房(ICU)的患者以及19例入住上海交通大学医学院附属瑞金医院、上海市徐汇区大华医院或其他省份医院或接受远程医疗咨询的患者。对所有纳入研究的患者进行CT扫描,并通过重复CT监测影像学特征,包括单纯磨玻璃影(GGO)、伴有小叶间隔增厚的GGO、实变合并GGO以及仅实变。结合患者的临床分期以及症状出现至CT检查的时间间隔,分析这些影像学特征的进展情况。
根据病情严重程度,49例患者分为四个阶段:轻症(n = 6)、中症(n = 12)、重症(n = 16)和危重症(n = 15)。CT表现分为三个阶段:早期(n = 5)、进展期(n = 39)和恢复期(n = 5)。49例患者中,9例出现双侧弥漫性GGO或弥漫性实变(白肺),计为18个病灶。3例患者初始CT无异常表现,但复查CT显示有新病灶。共识别出892个病灶,包括单纯GGO、伴有小叶间隔增厚的GGO、实变合并GGO以及仅实变。
多数患者CT显示肺部病变位于肺野的后部、下部和周边。伴有小叶间隔增厚的GGO、合并实变的GGO以及仅实变主要在发病第8至14天出现。实变的出现可能提示病情进展至重症阶段,而单纯实变或“白肺”可能提示危重症阶段。
