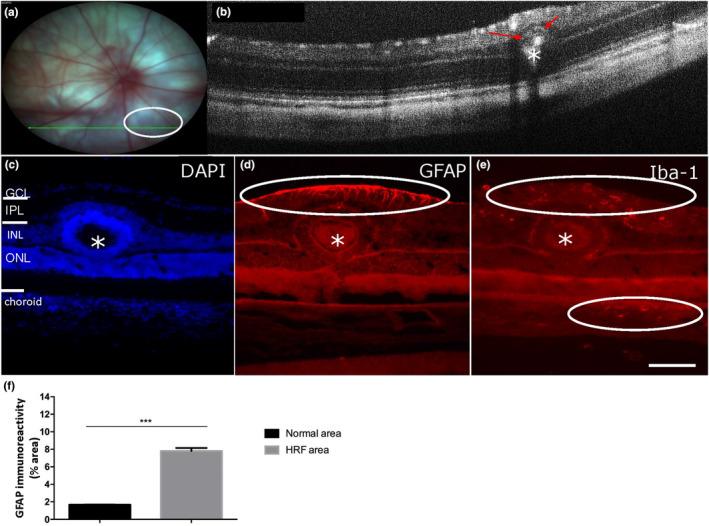

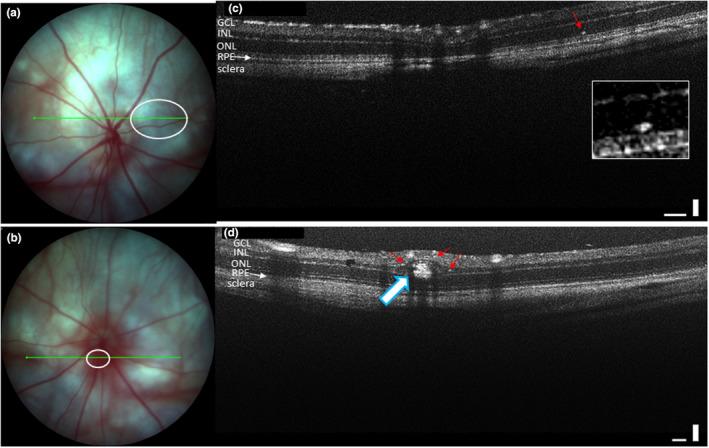

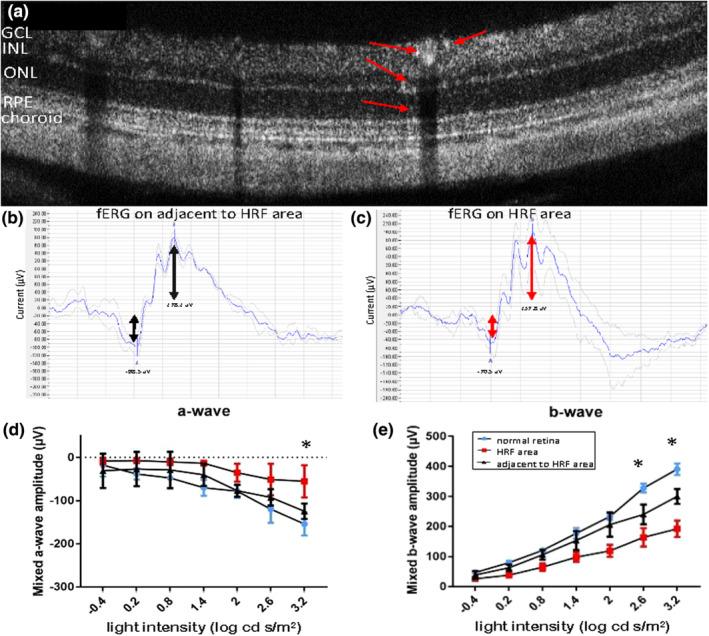

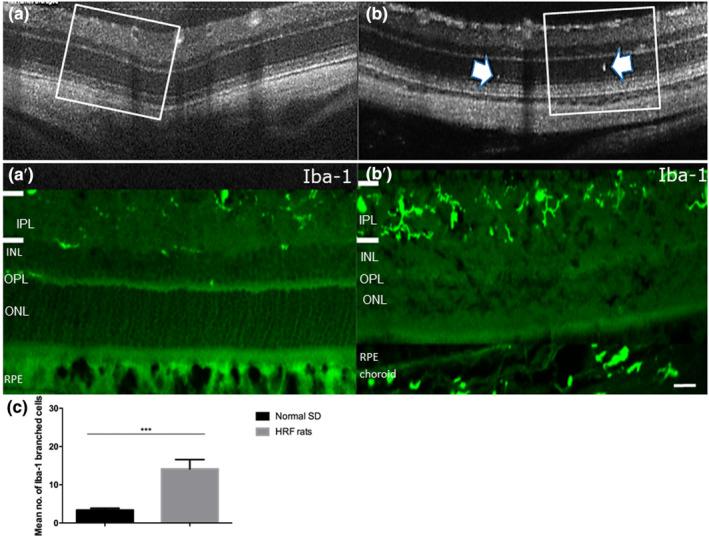

The aim of this study is to correlate small dot hyper-reflective foci (HRF) observed in spectral domain optical coherence tomography (SD-OCT) scans of an animal model of hyperglycaemia with focal electroretinography (fERG) response and immunolabelling of retinal markers. The eyes of an animal model of hyperglycaemia showing signs of diabetic retinopathy (DR) were imaged using SD-OCT. Areas showing dot HRF were further evaluated using fERG. Retinal areas enclosing the HRF were dissected and serially sectioned, stained and labelled for glial fibrillary acidic protein (GFAP) and a microglial marker (Iba-1). Small dot HRF were frequently seen in OCT scans in all retinal quadrants in the inner nuclear layer or outer nuclear layer in the DR rat model. Retinal function in the HRF and adjacent areas was reduced compared with normal control rats. Microglial activation was detected by Iba-1 labelling and retinal stress identified by GFAP expression in Müller cells observed in discrete areas around small dot HRF. Small dot HRF seen in OCT images of the retina are associated with a local microglial response. This study provides the first evidence of dot HRF correlating with microglial activation, which may allow clinicians to better evaluate the microglia-mediated inflammatory component of progressive diseases showing HRF.
