Wang Ye, Xu Jingru, Liu Guijian
CAS Key Laboratory of Crust-Mantle Materials and Environment, School of Earth and Space Sciences, University of Science and Technology of China Hefei Anhui 230026 China
Solid Waste Management Center of Anhui Province Hefei Anhui 230061 China.
RSC Adv. 2023 Jul 24;13(32):22216-22225. doi: 10.1039/d3ra03164k. eCollection 2023 Jul 19.

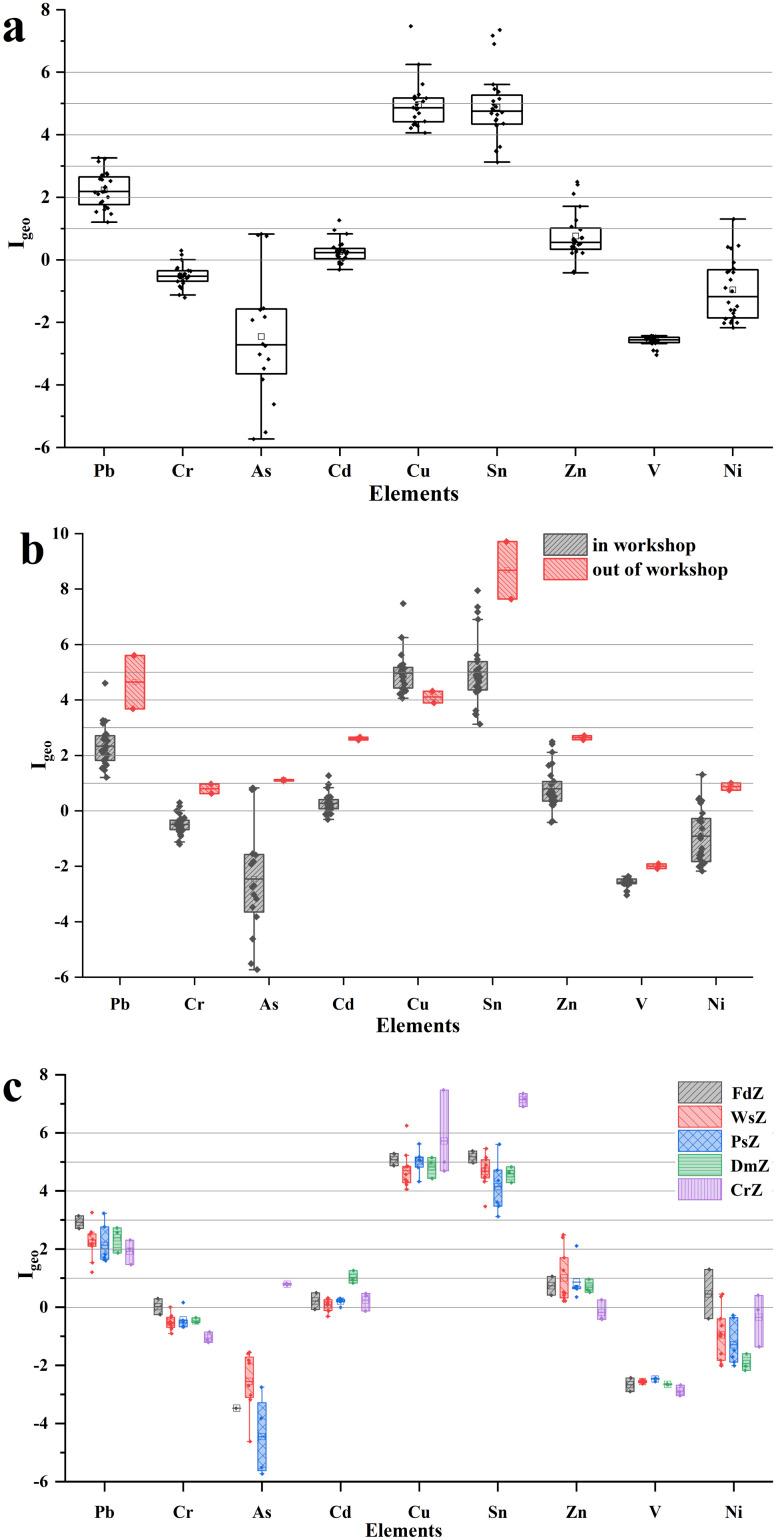

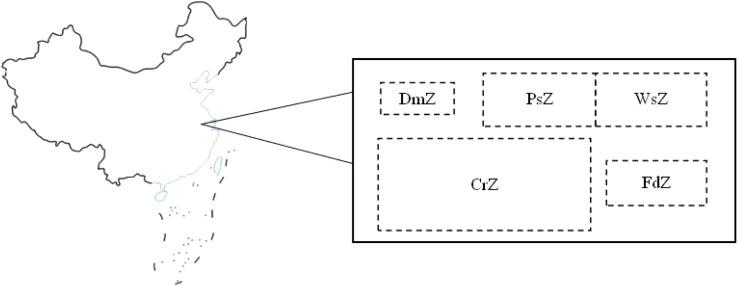

Physical separation is the most widely used technology concerning waste printed circuit board (WPCB) recycling in practical terms. The dust generated from the process poses a significant environmental and human health risk. Amounts of heavy metals in dust present in each processing zone of the workshop showed differences. However, to date, few studies have reported this. The mean metal concentrations in workshop dust from different processing zones were investigated in this study and it was found that Zn, Pb, and Sn appeared in higher levels than other metals, followed by Mn > Cr > Ni > V > As > Cd. The enrichment factors (EFs) ranged from 1.15 to 207.4, and decreased in the order of Cu > Sn > Pb > Zn > Cd > Cr > Ni > V > As, which was exactly consistent with the geo-accumulation index values. The comparison of the EF values of workshop dust in and outside showed that the EFs in workshop dust were mostly smaller. Metals in the dust of the crushing zone (CrZ) showed significant and strong enrichment. The non-carcinogenic risk for different processing zones was all less than 1, which is recognized safety for people's health. The total carcinogenic risk from Cr, and Ni in all zones and As in the CrZ exposure was not negligible. The carcinogenic and non-carcinogenic risks in the CrZ were significantly higher than in the other zones. Masks to filter dust, a ventilation system, daily work hours reduction, and automation improvement was proposed for reducing workers' exposure to heavy metal.
实际上,物理分离是废印刷电路板(WPCB)回收中使用最广泛的技术。该过程产生的粉尘对环境和人类健康构成重大风险。车间每个加工区域粉尘中的重金属含量存在差异。然而,迄今为止,很少有研究报道过这一点。本研究调查了不同加工区域车间粉尘中的平均金属浓度,发现锌、铅和锡的含量高于其他金属,其次是锰>铬>镍>钒>砷>镉。富集因子(EFs)范围为1.15至207.4,其顺序为铜>锡>铅>锌>镉>铬>镍>钒>砷,这与地累积指数值完全一致。车间内外部粉尘的EF值比较表明,车间粉尘中的EF值大多较小。破碎区(CrZ)粉尘中的金属表现出显著且强烈的富集。不同加工区域的非致癌风险均小于1,这对人体健康来说是公认的安全水平。所有区域中铬、镍以及CrZ暴露中的砷所带来的总致癌风险不可忽视。CrZ中的致癌和非致癌风险明显高于其他区域。建议使用防尘口罩、通风系统、减少每日工作时间以及改进自动化,以减少工人接触重金属。
