Rudmin Maxim, Makarov Boris, López-Quirós Adrián, Maximov Prokopiy, Lokteva Valeria, Ibraeva Kanipa, Kurovsky Alexander, Gummer Yana, Ruban Alexey
School of Earth Science & Engineering, Tomsk Polytechnic University, 634050 Tomsk, Russia.
Institute of Environmental and Agricultural Biology (X-BIO), University of Tyumen, 625003 Tyumen, Russia.
Materials (Basel). 2023 Sep 5;16(18):6080. doi: 10.3390/ma16186080.

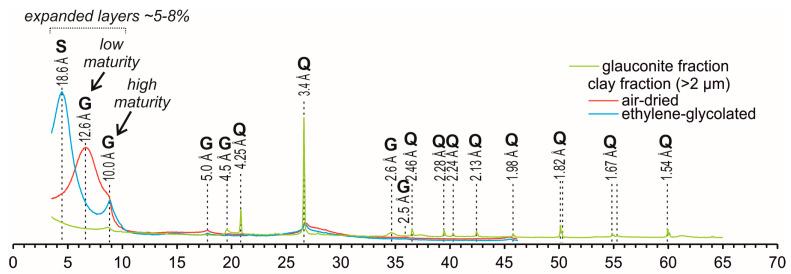

This paper studies the chemical and mechanochemical preparation of glauconite with ammonium dihydrogen phosphate (ADP) nanocomposites with a ratio of 9:1 in the vol.% and wt.%, respectively. The methods include X-ray diffraction analysis, scanning electron microscope with energy-dispersive X-ray spectroscopy, transmission electron microscopy, infrared spectroscopy, and differential thermal analysis with a quadruple mass spectrometer. The manufactured nanocomposites keep the flaky glauconite structure. Some glauconite unit structures have been thickened due to minimal nitrogen (ammonium) intercalation into the interlayer space. The globular, granular, or pellet mineral particles of nanocomposites can be preserved via chemical techniques. Globular and micro-aggregate particles in nanocomposites comprise a thin film of adsorbed ADP. The two-step mechanochemical method makes it possible to slightly increase the proportion of adsorbed (up to 3.2%) and intercalated (up to 6.0%) nutrients versus chemical ways. Nanocomposites prepared via chemical methods consist of glauconite (90%), adsorbed (1.8-3.6%), and intercalated (3.0-3.7%) substances of ADP. Through the use of a potassium-containing clay mineral as an inhibitor, nitrogen, phosphorus, and potassium (NPK), nanocomposite fertilisers of controlled action were obtained. Targeted and controlled release of nutrients such as phosphate, ammonium, and potassium are expected due to various forms of nutrients on the surface, in the micropores, and in the interlayer space of glauconite. This is confirmed via the stepwise dynamics of the release of ammonium, nitrate, potassium, and phosphate from their created nanocomposites. These features of nanocomposites contribute to the stimulation of plant growth and development when fertilisers are applied to the soil.
本文研究了分别以体积比和重量比为9:1的磷酸二氢铵(ADP)纳米复合材料对海绿石进行化学和机械化学制备的方法。这些方法包括X射线衍射分析、带有能量色散X射线光谱仪的扫描电子显微镜、透射电子显微镜、红外光谱以及带有四极质谱仪的差热分析。所制备的纳米复合材料保持了片状海绿石结构。由于极少的氮(铵)插入层间空间,一些海绿石单元结构变厚。纳米复合材料的球状、粒状或丸状矿物颗粒可通过化学技术得以保留。纳米复合材料中的球状和微团聚颗粒包含一层吸附的ADP薄膜。与化学方法相比,两步机械化学方法能够使吸附(高达3.2%)和插层(高达6.0%)养分的比例略有增加。通过化学方法制备的纳米复合材料由海绿石(90%)、吸附的(1.8 - 3.6%)和插层的(3.0 - 3.7%)ADP物质组成。通过使用含钾粘土矿物作为抑制剂,获得了氮、磷、钾(NPK)控释纳米复合肥料。由于海绿石表面、微孔和层间空间中养分的各种形式,预计磷酸盐、铵和钾等养分将有针对性地、可控地释放。从其制备的纳米复合材料中铵、硝酸盐、钾和磷酸盐的逐步释放动态证实了这一点。当肥料施用于土壤时,这些纳米复合材料的特性有助于刺激植物的生长和发育。
