He Zhimin, Shao Xuyang, Chen Xin
Department of Civil Engineering, Ningbo University, Ningbo 315211, China.
Collaborative Innovation Center of Coastal Urban Rail Transit, Ningbo University, Ningbo 315211, China.
Materials (Basel). 2023 Sep 14;16(18):6204. doi: 10.3390/ma16186204.

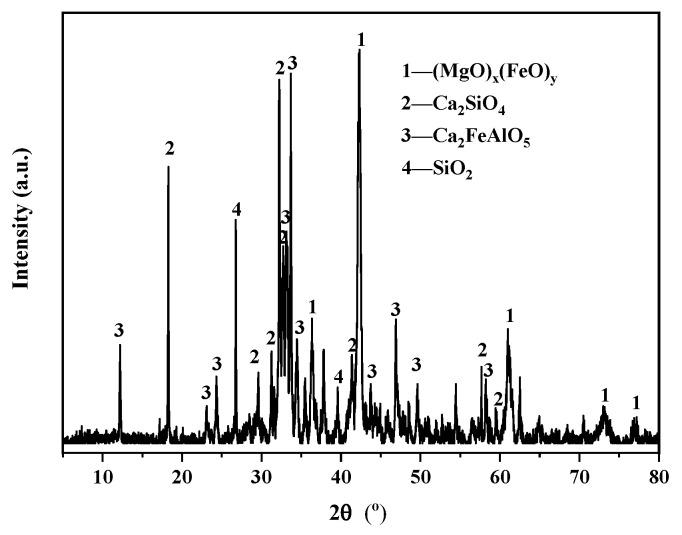

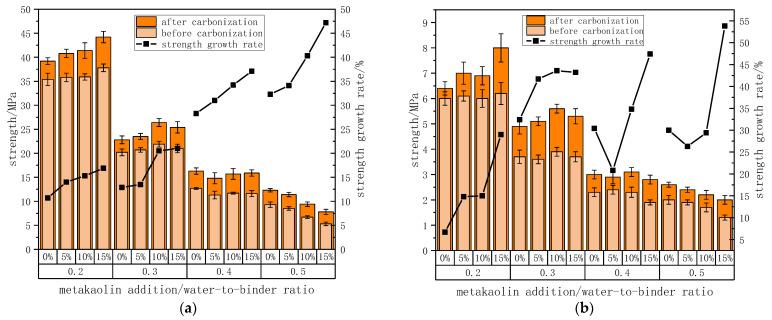

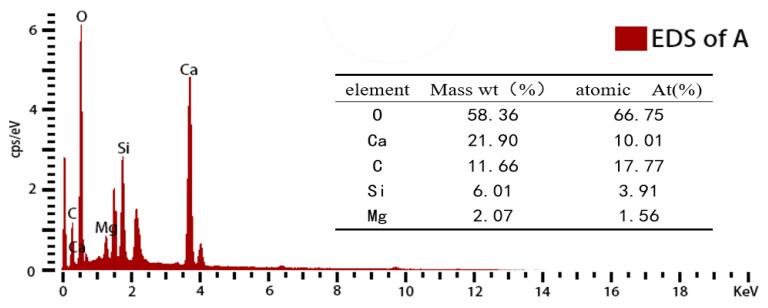

As a major steel producer, China is now eager to develop feasible solutions to recycle and reuse steel slag. However, due to the relatively poor hydration activity of steel slag, the quantity of steel slag used as a supplemental binder material is limited. In order to improve the cementitious properties of steel slag, the strength and carbonation degree of the high-content steel slag powder-cement-metakaolin composite cementitious material system under CO curing conditions were investigated. The compressive strengths of the mortar specimens were tested and compared. The carbonation areas were identified and evaluated. A microscopic analysis was conducted using X-ray diffraction (XRD), thermogravimetry analysis (TG), and scanning electron microscopy (SEM) to reveal the chemical mechanisms. The results showed that CO curing significantly increased the early strength as the 3D compressive strength of the specimens increased by 47.2% after CO curing. The strength of the specimens increased with increasing amounts of metakaolin in a low water-to-binder ratio mixture. The 3D compressive strength of the specimens prepared with 15% metakaolin at a 0.2 water-to-binder ratio achieved 44.2 MPa after CO curing. Increasing the water-to-binder ratio from 0.2 to 0.5 and the metakaolin incorporation from 0% to 15% resulted in a 25.33% and 19.9% increase in the carbonation area, respectively. The calcium carbonate crystals that formed during carbonation filled the pores and reduced the porosity, thereby enhancing the strength of the mortar specimens. The soundness of the specimens after CO curing was qualified. The results obtained in the present study provide new insight for the improvement of the hydration reactivity and cementitious properties of steel slag powder.
作为主要的钢铁生产国,中国目前急于开发可行的钢渣回收再利用解决方案。然而,由于钢渣的水化活性相对较差,用作辅助胶凝材料的钢渣数量有限。为了提高钢渣的胶凝性能,研究了高掺量钢渣粉-水泥-偏高岭土复合胶凝材料体系在CO养护条件下的强度和碳化程度。测试并比较了砂浆试件的抗压强度,识别并评估了碳化区域。使用X射线衍射(XRD)、热重分析(TG)和扫描电子显微镜(SEM)进行微观分析,以揭示其化学机理。结果表明,CO养护显著提高了早期强度,CO养护后试件的三维抗压强度提高了47.2%。在低水胶比混合物中,试件强度随偏高岭土掺量的增加而提高。在水胶比为0.2时,掺15%偏高岭土制备的试件经CO养护后的三维抗压强度达到44.2MPa。水胶比从0.2增加到0.5,偏高岭土掺量从0%增加到15%,分别使碳化面积增加了25.33%和19.9%。碳化过程中形成的碳酸钙晶体填充了孔隙,降低了孔隙率,从而提高了砂浆试件的强度。CO养护后试件的安定性合格。本研究所得结果为提高钢渣粉的水化反应活性和胶凝性能提供了新的见解。
