Habibi Biuck, Pashazadeh Sara, Pashazadeh Ali, Saghatforoush Lotf Ali
Electroanalytical Chemistry Laboratory, Department of Chemistry, Faculty of Sciences, Azarbaijan Shahid Madani University Tabriz 53714-161 Iran
Department of Chemistry, Payame Noor University 19395-4697 Tehran I. R. Iran.
RSC Adv. 2023 Oct 18;13(43):29931-29943. doi: 10.1039/d3ra04766k. eCollection 2023 Oct 11.

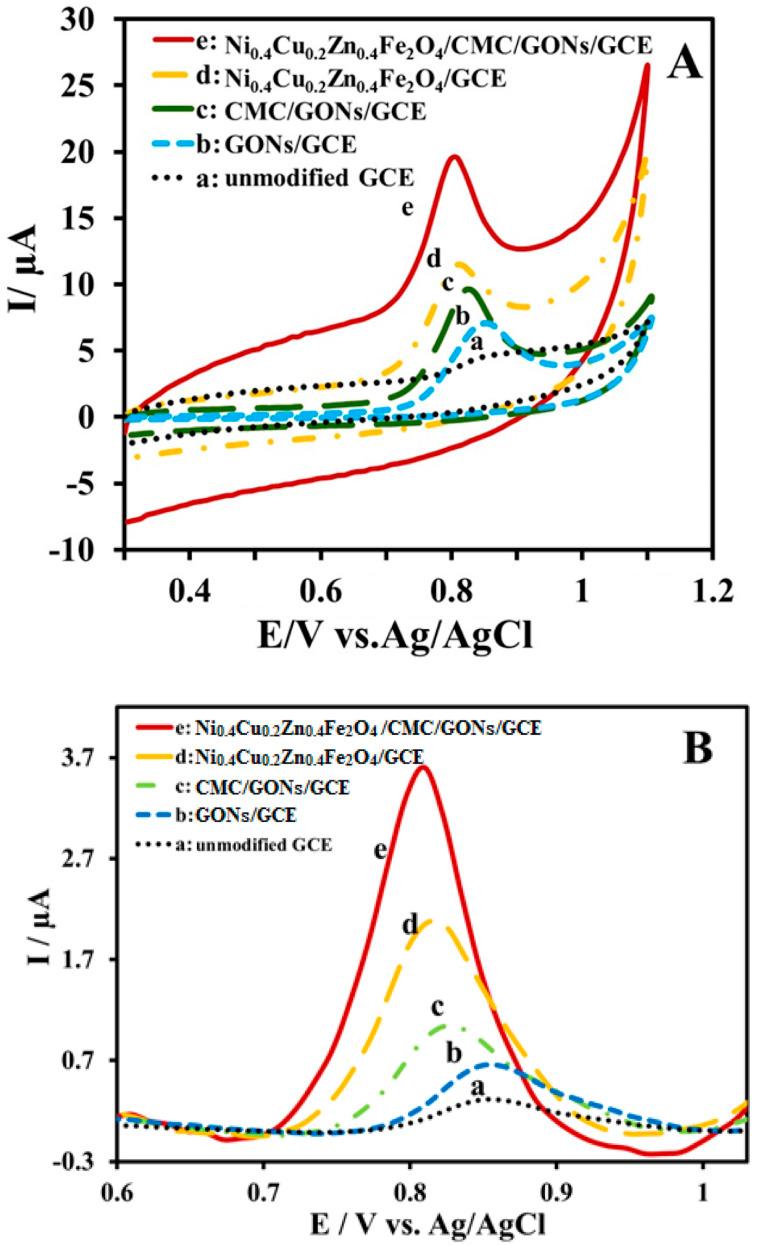

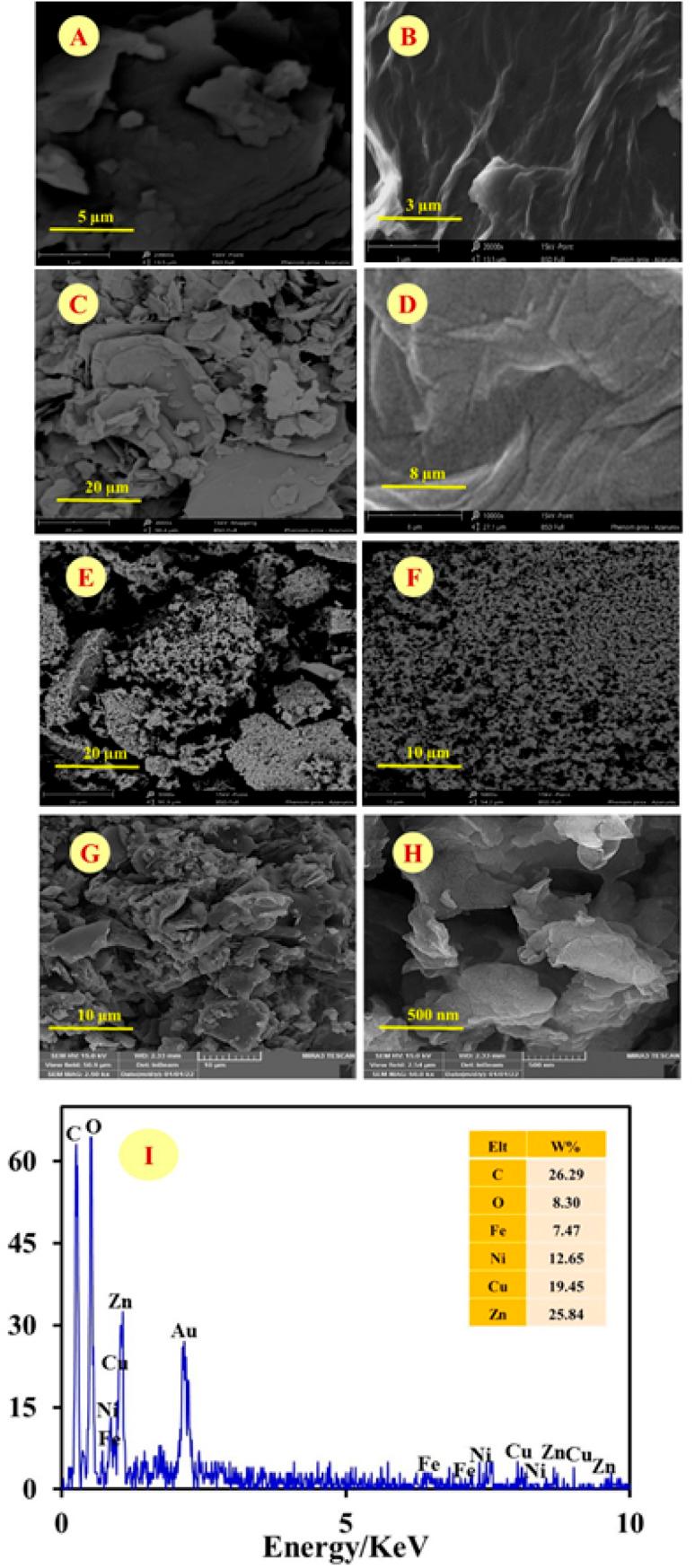

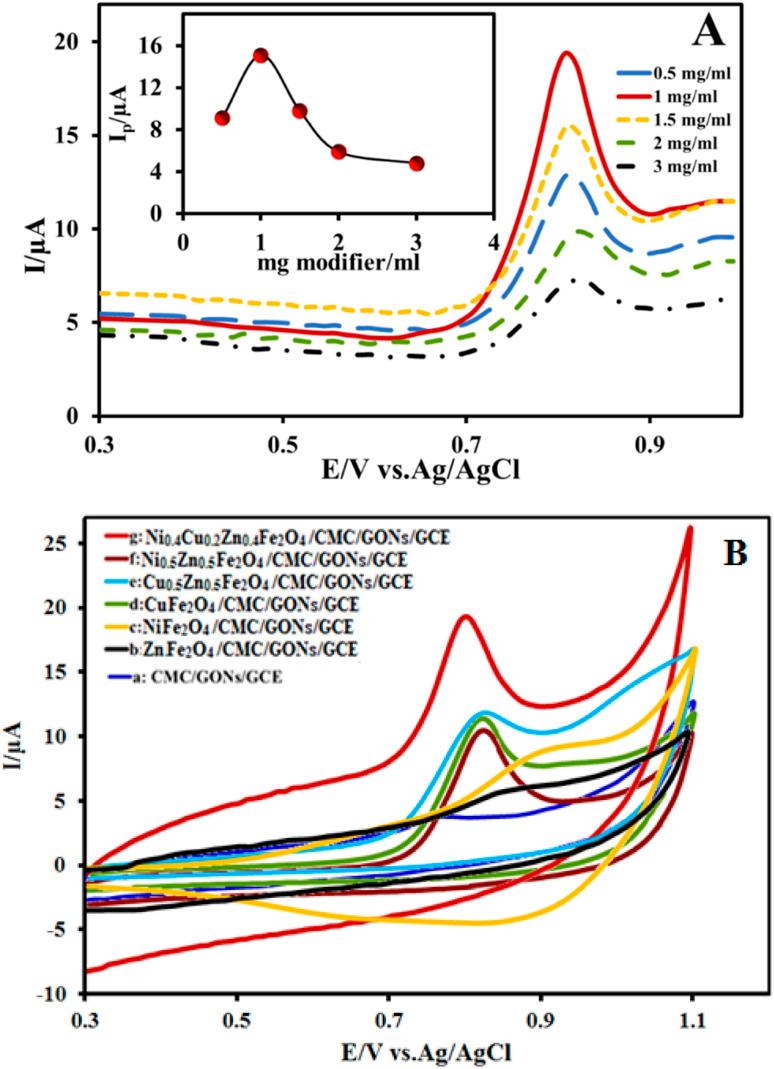

In this work, a signal amplification strategy was designed by the fabrication of a highly sensitive and selective electrochemical sensor based on nickel-copper-zinc ferrite (NiCuZnFeO)/carboxymethyl cellulose (CMC)/graphene oxide nanosheets (GONs) composite modified glassy carbon electrode (GCE) for determination of omeprazole (OMP). The one-step synthesized NiCuZnFeO/CMC/GONs nanocomposite was characterized by scanning electron microscopy, energy-dispersive X-ray spectroscopy, transmission electron microscopy and X-ray diffraction techniques. Then, the NiCuZnFeO/CMC/GONs/GCE was applied to study the electrochemical behavior of the OMP. Electrochemical data show that the NiCuZnFeO/CMC/GONs/GCE exhibits superior electrocatalytic performance on the oxidation of OMP compared with bare GCE, GONs/GCE, CMC/GONs/GCE and MFeO/GCE (M = Cu, Ni and Zn including single, double and triple of metals) which can be attributed to the synergistic effects of the nanocomposite components, outstanding electrical properties of NiCuZnFeO and high conductivity of CMC/GONs as well as the further electron transport action of the nanocomposite. Under optimal conditions, the NiCuZnFeO/CMC/GONs/GCE offers a high performance toward the electrodetermination of OMP with the wide linear-range responses (0.24-5 and 5-75 μM), lower detection limit (0.22 ± 0.05 μM), high sensitivity (1.1543 μA μM cm), long-term signal stability and reproducibility (RSD = 2.54%). It should be noted that the NiCuZnFeO/CMC/GONs/GCE sensor could also be used for determination of OMP in drug and biological samples, indicating its feasibility for real analysis.

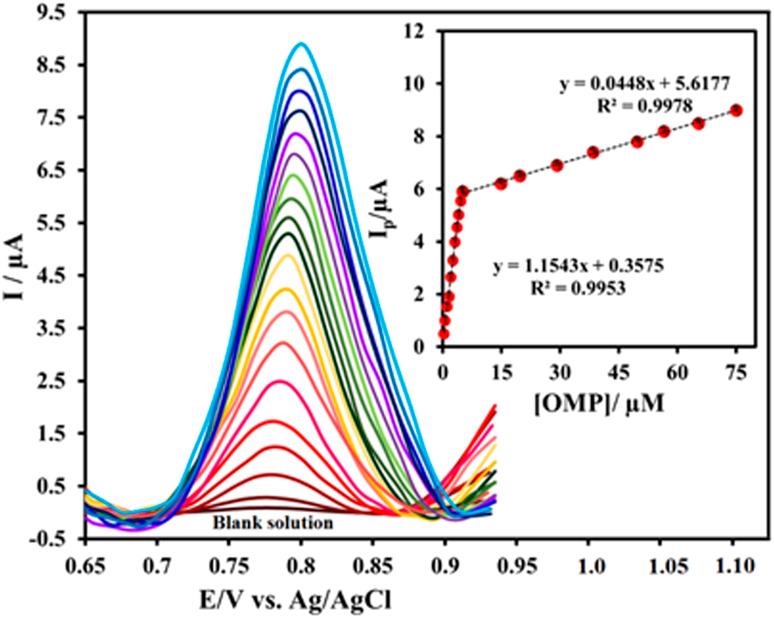

在本工作中,通过制备基于镍铜锌铁氧体(NiCuZnFeO)/羧甲基纤维素(CMC)/氧化石墨烯纳米片(GONs)复合材料修饰玻碳电极(GCE)的高灵敏度和选择性电化学传感器,设计了一种信号放大策略,用于测定奥美拉唑(OMP)。通过扫描电子显微镜、能量色散X射线光谱、透射电子显微镜和X射线衍射技术对一步合成的NiCuZnFeO/CMC/GONs纳米复合材料进行了表征。然后,将NiCuZnFeO/CMC/GONs/GCE应用于研究OMP的电化学行为。电化学数据表明,与裸GCE、GONs/GCE、CMC/GONs/GCE和MFeO/GCE(M = Cu、Ni和Zn,包括单一、双金属和三金属)相比,NiCuZnFeO/CMC/GONs/GCE对OMP的氧化表现出优异的电催化性能,这可归因于纳米复合材料组分的协同效应、NiCuZnFeO出色的电学性能、CMC/GONs的高导电性以及纳米复合材料的进一步电子传输作用。在最佳条件下,NiCuZnFeO/CMC/GONs/GCE对OMP的电测定具有高性能,具有宽线性范围响应(0.24 - 5和5 - 75 μM)、较低的检测限(0.22 ± 0.05 μM)、高灵敏度(1.1543 μA μM⁻¹ cm⁻²)、长期信号稳定性和重现性(RSD = 2.54%)。值得注意的是,NiCuZnFeO/CMC/GONs/GCE传感器还可用于药物和生物样品中OMP的测定,表明其在实际分析中的可行性。
