Department of Physical Chemistry, Faculty of Chemical Technology, University of Pardubice, Studentská 573, 532 10 Pardubice, Czech Republic.
Faculty of Electrical Engineering and Informatics, University of Pardubice, nam. Cs. legii 565, 530 02 Pardubice, Czech Republic.
Int J Mol Sci. 2023 Nov 13;24(22):16275. doi: 10.3390/ijms242216275.

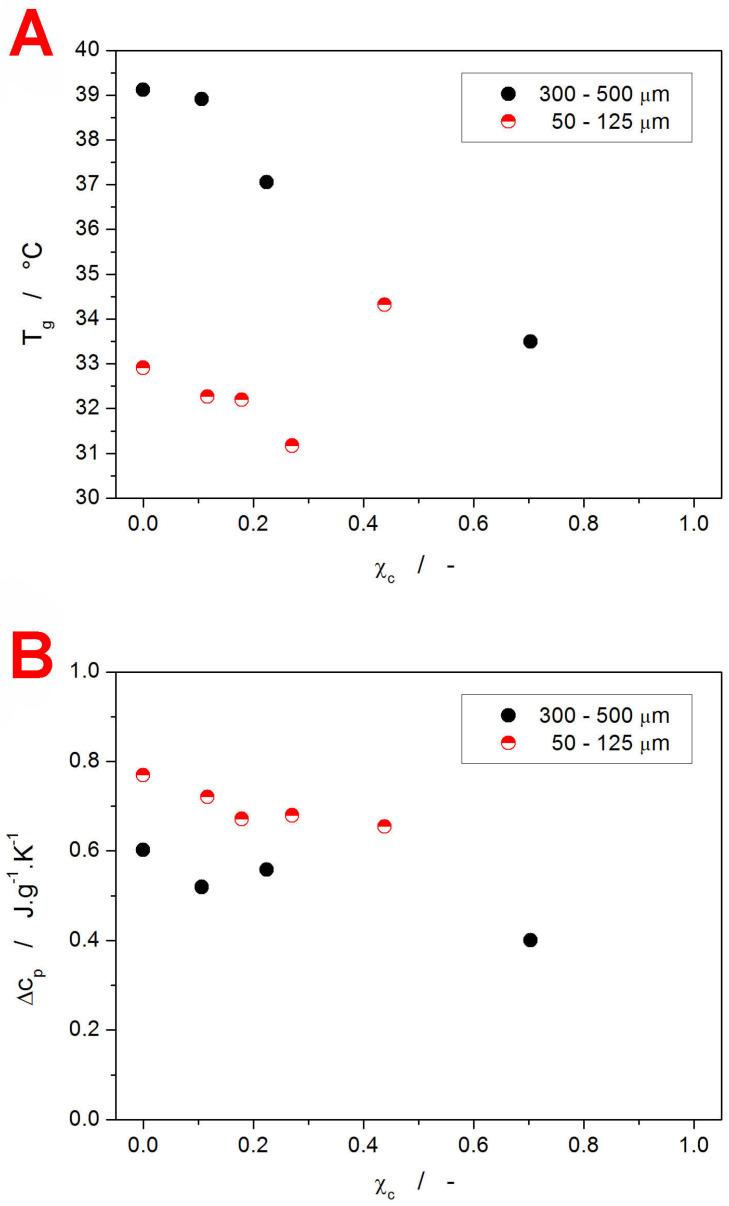

The influence of partial crystallinity on the structural relaxation behavior of low-molecular organic glasses is, contrary to, e.g., polymeric materials, a largely unexplored territory. In the present study, differential scanning calorimetry was used to prepare a series of amorphous indomethacin powders crystallized to various extents. The preparations stemmed from the two distinct particle size fractions: 50-125 µm and 300-500 µm. The structural relaxation data from the cyclic calorimetric measurements were described in terms of the phenomenological Tool-Narayanaswamy-Moynihan model. For the 300-500 µm powder, the crystalline phase forming dominantly on the surface led to a monotonous decrease in the glass transition by ~6 °C in the 0-70% crystallinity range. The activation energy of the relaxation motions and the degree of heterogeneity within the relaxing matrix were not influenced by the increasing crystallinity, while the interconnectivity slightly increased. This behavior was attributed to the release of the quenched-in stresses and to the consequent slight increase in the structural interconnectivity. For the 50-125 µm powder, distinctly different relaxation dynamics were observed. This leads to a conclusion that the crystalline phase grows throughout the bulk glassy matrix along the internal micro-cracks. At higher crystallinity, a sharp increase in T, an increase in interconnectivity, and an increase in the variability of structural units engaged in the relaxation motions were observed.
部分结晶度对低分子有机玻璃结构弛豫行为的影响与聚合物材料相反,在很大程度上仍是一个未被探索的领域。在本研究中,使用差示扫描量热法制备了一系列结晶度不同的无定形吲哚美辛粉末。这些制备物源于两个截然不同的粒径分数:50-125 µm 和 300-500 µm。循环量热测量的结构弛豫数据用唯象的工具-纳拉亚纳斯瓦米-莫尼汉模型来描述。对于 300-500 µm 的粉末,主要在表面形成的晶相导致玻璃化转变单调下降约 6°C,在 0-70%结晶度范围内。松弛运动的活化能和松弛基质内的非均相程度不受结晶度增加的影响,而连通性略有增加。这种行为归因于淬火应力的释放以及结构连通性的轻微增加。对于 50-125 µm 的粉末,观察到明显不同的弛豫动力学。这导致一个结论,即晶相沿着内部微裂纹在整个玻璃基质中生长。在较高的结晶度下,观察到 T 的急剧增加、连通性的增加以及参与松弛运动的结构单元的可变性的增加。
