Kemp Tannis D, Besler Bryce A, Gabel Leigh, Boyd Steven K
Department of Mechanical and Manufacturing Engineering, Schulich School of Engineering, University of Calgary, Calgary, AB T2N 1N4, Canada.
McCaig Institute for Bone and Joint Health, University of Calgary, Calgary, AB T2N 4Z6, Canada.
Life (Basel). 2023 Nov 9;13(11):2183. doi: 10.3390/life13112183.

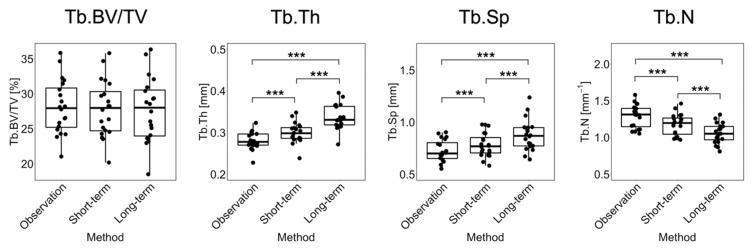

A method was previously developed to identify participant-specific parameters in a model of trabecular bone adaptation from longitudinal computed tomography (CT) imaging. In this study, we use these numerical methods to estimate changes in astronaut bone health during the distinct phases of spaceflight and recovery on Earth. Astronauts (N = 16) received high-resolution peripheral quantitative CT (HR-pQCT) scans of their distal tibia prior to launch (L), upon their return from an approximately six-month stay on the international space station (R+0), and after six (R+6) and 12 (R+12) months of recovery. To model trabecular bone adaptation, we determined participant-specific parameters at each time interval and estimated their bone structure at R+0, R+6, and R+12. To assess the fit of our model to this population, we compared static and dynamic bone morphometry as well as the Dice coefficient and symmetric distance at each measurement. In general, modeled and observed static morphometry were highly correlated ( 0.94) and statistically different ( < 0.0001) but with errors close to HR-pQCT precision limits. Dynamic morphometry, which captures rates of bone adaptation, was poorly estimated by our model ( < 0.0001). The Dice coefficient and symmetric distance indicated a reasonable local fit between observed and predicted bone volumes. This work applies a general and versatile computational framework to test bone adaptation models. Future work can explore and test increasingly sophisticated models (e.g., those including load or physiological factors) on a participant-specific basis.
之前已开发出一种方法,可从纵向计算机断层扫描(CT)成像中识别小梁骨适应性模型中特定参与者的参数。在本研究中,我们使用这些数值方法来估计宇航员在太空飞行的不同阶段以及在地球上恢复期间骨骼健康的变化。16名宇航员在发射前(L)、从国际空间站大约停留六个月返回后(R+0)以及恢复六个月(R+6)和十二个月(R+12)后,接受了胫骨远端的高分辨率外周定量CT(HR-pQCT)扫描。为了模拟小梁骨适应性,我们在每个时间间隔确定特定参与者的参数,并估计他们在R+0、R+6和R+12时的骨骼结构。为了评估我们的模型对该人群的拟合度,我们比较了静态和动态骨形态计量学以及每次测量时的骰子系数和对称距离。总体而言,建模和观察到的静态形态计量学高度相关(0.94)且在统计学上有差异(<0.0001),但误差接近HR-pQCT精度极限。我们的模型对捕捉骨适应率的动态形态计量学估计较差(<0.0001)。骰子系数和对称距离表明观察到的和预测的骨体积之间有合理的局部拟合。这项工作应用了一个通用且灵活的计算框架来测试骨适应模型。未来的工作可以在特定参与者的基础上探索和测试越来越复杂的模型(例如,那些包括负荷或生理因素的模型)。
