Instantaneous Generation of Subject-Specific Finite Element Models of the Hip Capsule.

作者信息

Anantha-Krishnan Ahilan, Myers Casey A, Fitzpatrick Clare K, Clary Chadd W

机构信息

Center of Orthopaedic Biomechanics, University of Denver, Denver, CO 80208, USA.

Mechanical and Biomedical Engineering, Boise State University, Boise, ID 83725, USA.

出版信息

Bioengineering (Basel). 2023 Dec 28;11(1):37. doi: 10.3390/bioengineering11010037.


DOI:10.3390/bioengineering11010037
PMID:38247914
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC10813259/
Abstract

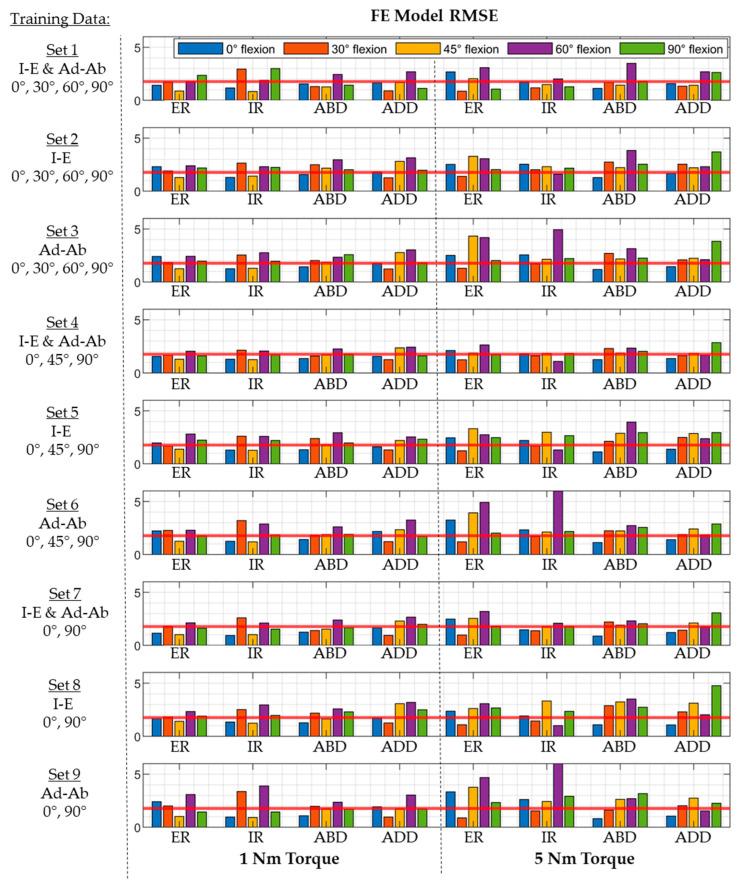

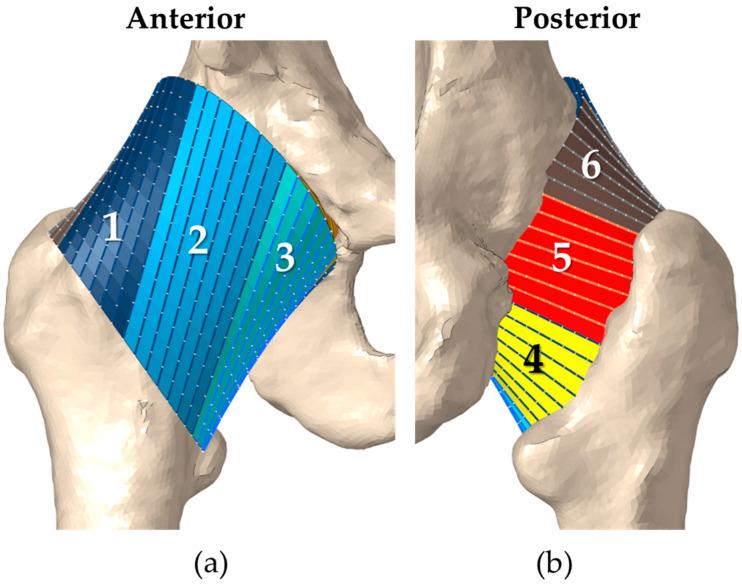

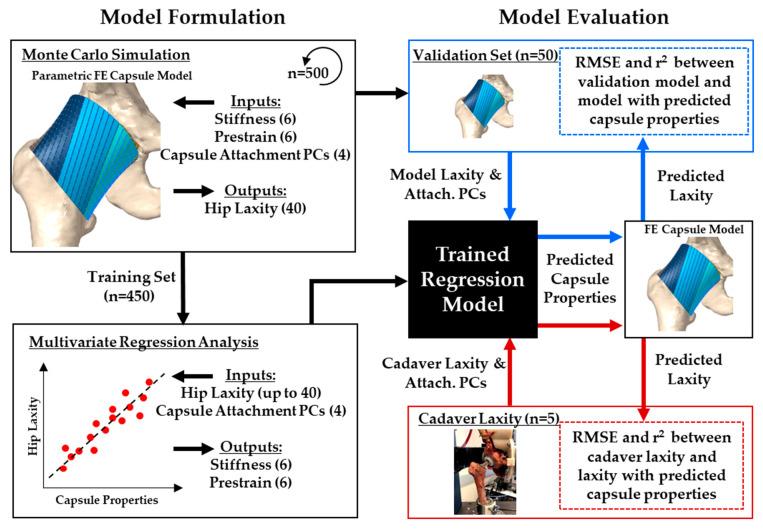

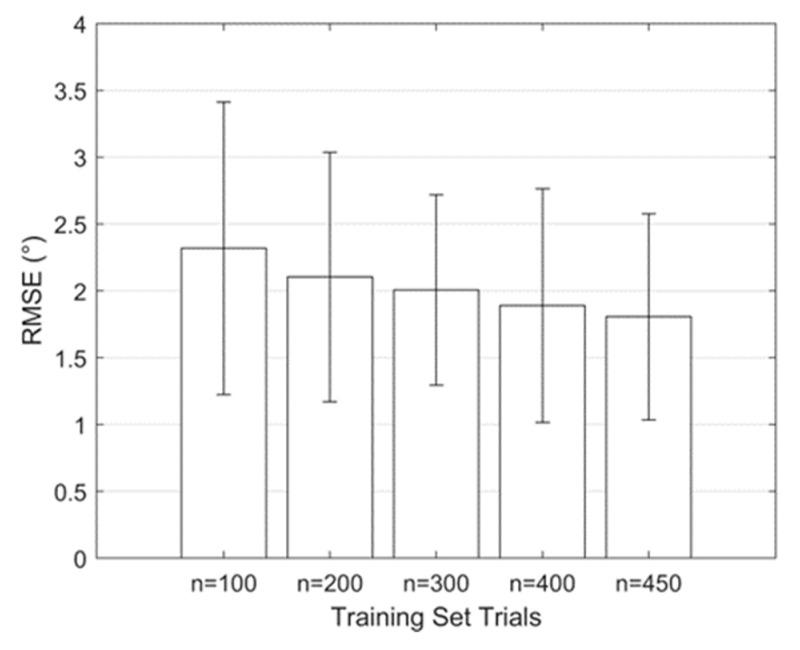

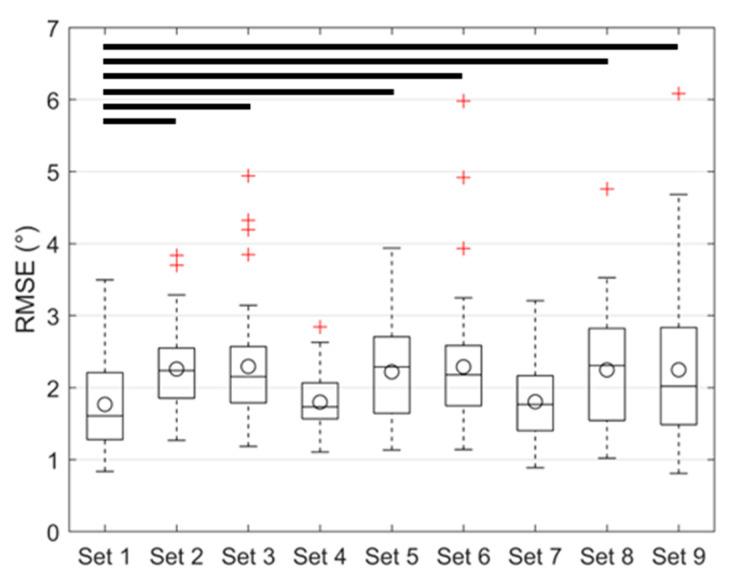

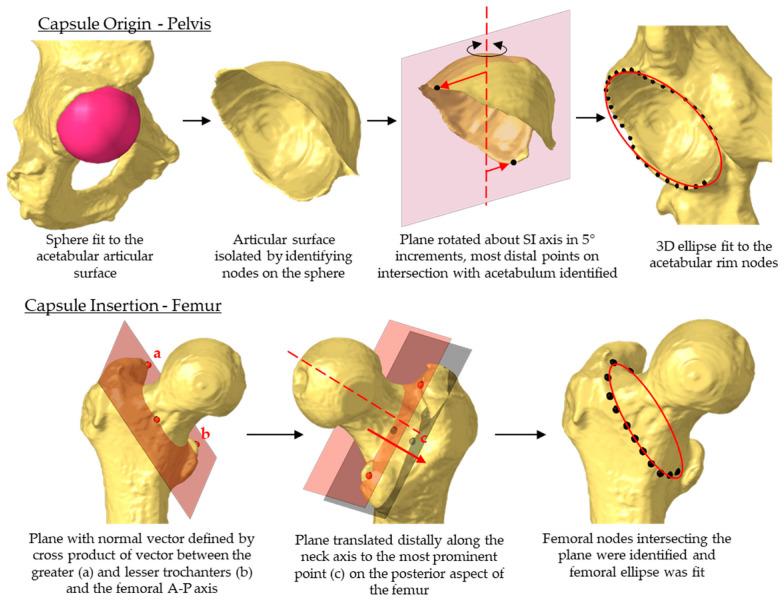

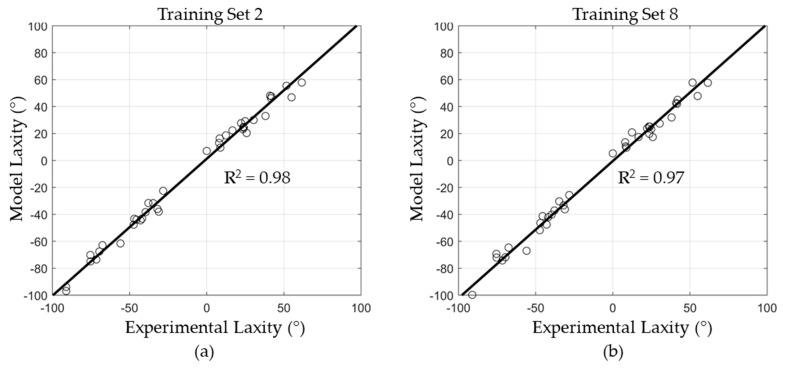

Subject-specific hip capsule models could offer insights into impingement and dislocation risk when coupled with computer-aided surgery, but model calibration is time-consuming using traditional techniques. This study developed a framework for instantaneously generating subject-specific finite element (FE) capsule representations from regression models trained with a probabilistic approach. A validated FE model of the implanted hip capsule was evaluated probabilistically to generate a training dataset relating capsule geometry and material properties to hip laxity. Multivariate regression models were trained using 90% of trials to predict capsule properties based on hip laxity and attachment site information. The regression models were validated using the remaining 10% of the training set by comparing differences in hip laxity between the original trials and the regression-derived capsules. Root mean square errors (RMSEs) in laxity predictions ranged from 1.8° to 2.3°, depending on the type of laxity used in the training set. The RMSE, when predicting the laxity measured from five cadaveric specimens with total hip arthroplasty, was 4.5°. Model generation time was reduced from days to milliseconds. The results demonstrated the potential of regression-based training to instantaneously generate subject-specific FE models and have implications for integrating subject-specific capsule models into surgical planning software.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/cdb8a9ba95b9/bioengineering-11-00037-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/b70e5946b840/bioengineering-11-00037-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/3c2e3ec0b28e/bioengineering-11-00037-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/fc9fec2a3aa9/bioengineering-11-00037-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/54d8e1afa9a1/bioengineering-11-00037-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/fc7c8f8d3495/bioengineering-11-00037-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/dfa38e8b54a0/bioengineering-11-00037-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/7d2d8c4795fa/bioengineering-11-00037-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/a99b220131d5/bioengineering-11-00037-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/cdb8a9ba95b9/bioengineering-11-00037-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/b70e5946b840/bioengineering-11-00037-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/3c2e3ec0b28e/bioengineering-11-00037-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/fc9fec2a3aa9/bioengineering-11-00037-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/54d8e1afa9a1/bioengineering-11-00037-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/fc7c8f8d3495/bioengineering-11-00037-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/dfa38e8b54a0/bioengineering-11-00037-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/7d2d8c4795fa/bioengineering-11-00037-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/a99b220131d5/bioengineering-11-00037-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/dfea/10813259/cdb8a9ba95b9/bioengineering-11-00037-g009.jpg
