Kim Kyoung-Ho, Shin Yun-Ji, Jeong Seong-Min, Lee Heesoo, Bae Si-Young
Semiconductor Materials Center, Korea Institute of Ceramic Engineering and Technology, Jinju 52851, Republic of Korea.
School of Materials Science and Engineering, Pusan National University, Busan 46241, Republic of Korea.
Nanomaterials (Basel). 2024 Jan 12;14(2):178. doi: 10.3390/nano14020178.

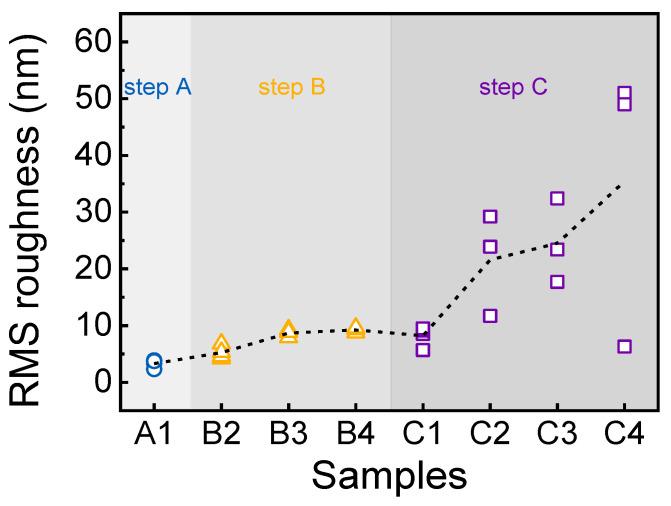

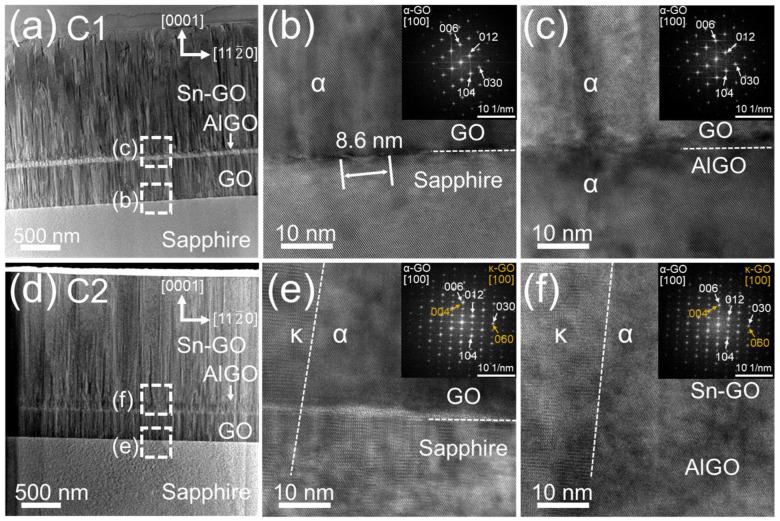

Double buffer layers composed of (AlGa)O/GaO structures were employed to grow a Sn-doped α-GaO epitaxial thin film on a sapphire substrate using mist chemical vapor deposition. The insertion of double buffer layers improved the crystal quality of the upper-grown Sn-doped α-GaO thin films by blocking dislocation generated by the substrates. Rapid thermal annealing was conducted for the double buffer layers at phase transition temperatures of 700-800 °C. The slight mixing of κ and β phases further improved the crystallinity of the grown Sn-GaO thin film through local lateral overgrowth. The electron mobility of the Sn-GaO thin films was also significantly improved due to the smoothened interface and the diffusion of Al. Therefore, rapid thermal annealing with the double buffer layer proved advantageous in achieving strong electrical properties for GaO semiconductor devices within a shorter processing time.
采用由(AlGa)O/GaO结构组成的双缓冲层,通过雾状化学气相沉积法在蓝宝石衬底上生长掺锡α-GaO外延薄膜。双缓冲层的插入通过阻挡衬底产生的位错,提高了上层生长的掺锡α-GaO薄膜的晶体质量。在700-800°C的相变温度下对双缓冲层进行快速热退火。κ相和β相的轻微混合通过局部横向过生长进一步提高了生长的Sn-GaO薄膜的结晶度。由于界面平滑和Al的扩散,Sn-GaO薄膜的电子迁移率也显著提高。因此,事实证明,采用双缓冲层的快速热退火有利于在更短的加工时间内实现GaO半导体器件的强电性能。
