Traditional Chinese medicine diagnostic prediction model for holistic syndrome differentiation based on deep learning.

BACKGROUND

With the development of traditional Chinese medicine (TCM) syndrome knowledge accumulation and artificial intelligence (AI), this study proposes a holistic TCM syndrome differentiation model for the classification prediction of multiple TCM syndromes based on deep learning and accelerates the construction of modern foundational TCM equipment.

METHODS

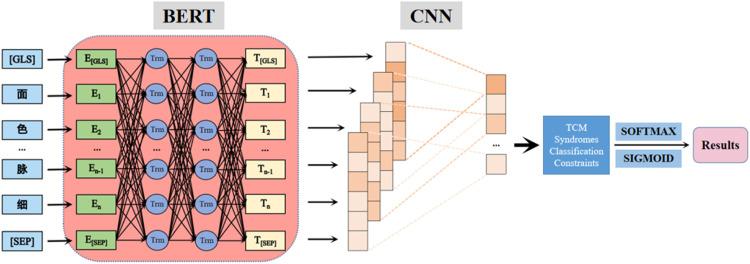

We searched publicly available TCM guidelines and textbooks for expert knowledge and validated these sources using ten-fold cross-validation. Based on the BERT and CNN models, with the classification constraints from TCM holistic syndrome differentiation, the TCM-BERT-CNN model was constructed, which completes the end-to-end TCM holistic syndrome text classification task through symptom input and syndrome output. We assessed the performance of the model using precision, recall, and F1 scores as evaluation metrics.

RESULTS

The TCM-BERT-CNN model had a higher precision (0.926), recall (0.9238), and F1 score (0.9247) than the BERT, TextCNN, LSTM RNN, and LSTM ATTENTION models and achieved superior results in model performance and predictive classification of most TCM syndromes. Symptom feature visualization demonstrated that the TCM-BERT-CNN model can effectively identify the correlation and characteristics of symptoms in different syndromes with a strong correlation, which conforms to the diagnostic characteristics of TCM syndromes.

CONCLUSIONS

The TCM-BERT-CNN model proposed in this study is in accordance with the TCM diagnostic characteristics of holistic syndrome differentiation and can effectively complete diagnostic prediction tasks for various TCM syndromes. The results of this study provide new insights into the development of deep learning models for holistic syndrome differentiation in TCM.
