Microstructure and tribological behaviour of CoCrCuFeTi high entropy alloy reinforced SS304 through friction stir processing.

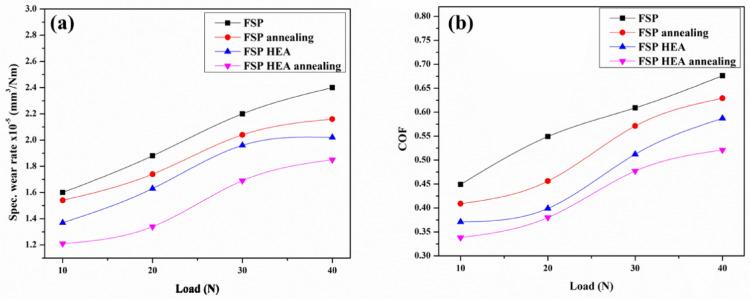

Surface modification by suitable technique aids in improving the characteristics of material to resist severe wear in demanding environments and challenging applications. The present study aims to analyse the tribological performance of Stainless Steel (SS304) reinforced with CoCrCuFeTi High Entropy Alloy (HEA) through friction stir processing and compares the results with annealed specimens. The CoCrCuFeTi HEA was ball milled and revealed irregular fragment particles with Body Centred Cubic (BCC) phase. The processed samples exhibited excellent refinement in grains with uniform HEA reinforcement distribution. The grains were observed to be in nano level post-annealing promoting exceptional microhardness. The pin-on-disc wear test was conducted by varying load (10-40N), sliding velocity (0.5-3.5 m/s) and sliding distance (500-2000 m) and the respective worn surface was analysed. The processed sample with HEA after annealing offered 29.8%, 57.4% and 58.49% improved wear resistance at the minimum level of load, sliding velocity and sliding distance than the processed base samples. The worn morphology revealed delamination, abrasion, adhesion and oxide layer formation to be the predominant wear mechanisms.
