An Infrared Image Defect Detection Method for Steel Based on Regularized YOLO.

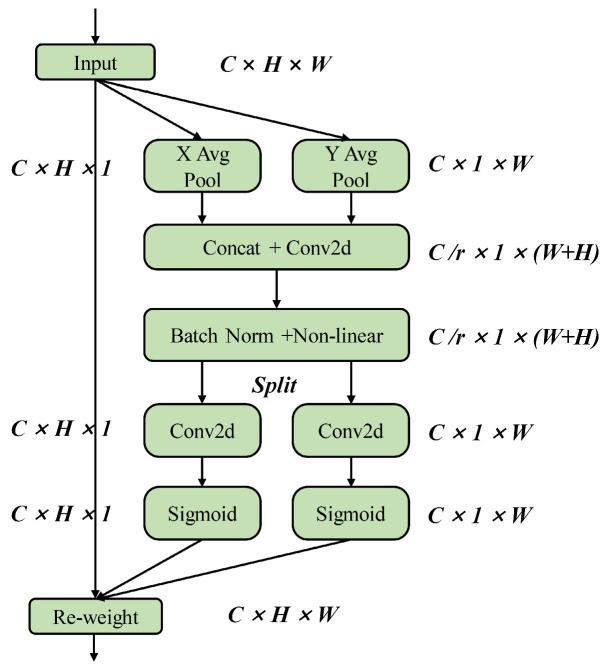

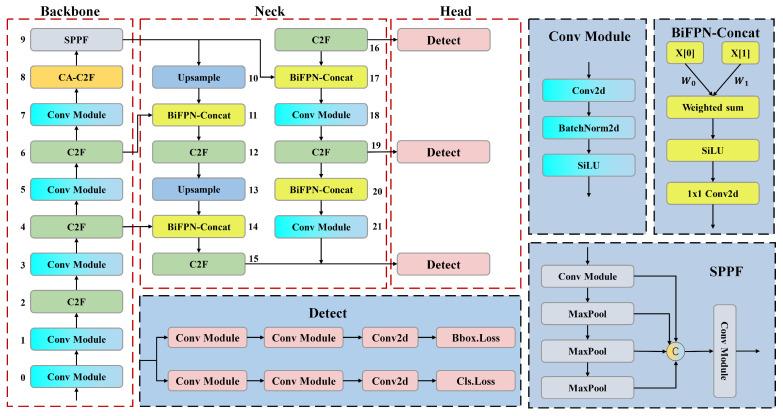

Steel surfaces often display intricate texture patterns that can resemble defects, posing a challenge in accurately identifying actual defects. Therefore, it is crucial to develop a highly robust defect detection model. This study proposes a defect detection method for steel infrared images based on a Regularized YOLO framework. Firstly, the Coordinate Attention (CA) is embedded within the C2F framework, utilizing a lightweight attention module to enhance the feature extraction capability of the backbone network. Secondly, the neck part design incorporates the Bi-directional Feature Pyramid Network (BiFPN) for weighted fusion of multi-scale feature maps. This creates a model called BiFPN-Concat, which enhances feature fusion capability. Finally, the loss function of the model is regularized to improve the generalization performance of the model. The experimental results indicate that the model has only 3.03 M parameters, yet achieves a mAP@0.5 of 80.77% on the NEU-DET dataset and 99.38% on the ECTI dataset. This represents an improvement of 2.3% and 1.6% over the baseline model, respectively. This method is well-suited for industrial detection applications involving non-destructive testing of steel using infrared imagery.
