Sun Yi, Wu Jingyi, Chen Xingjie, Lai Chunyan
Shanghai Key Laboratory of Materials Protection and Advanced Materials in Electric Power, Shanghai University of Electric Power, Shanghai 200090, China.
Nanomaterials (Basel). 2024 Apr 2;14(7):625. doi: 10.3390/nano14070625.

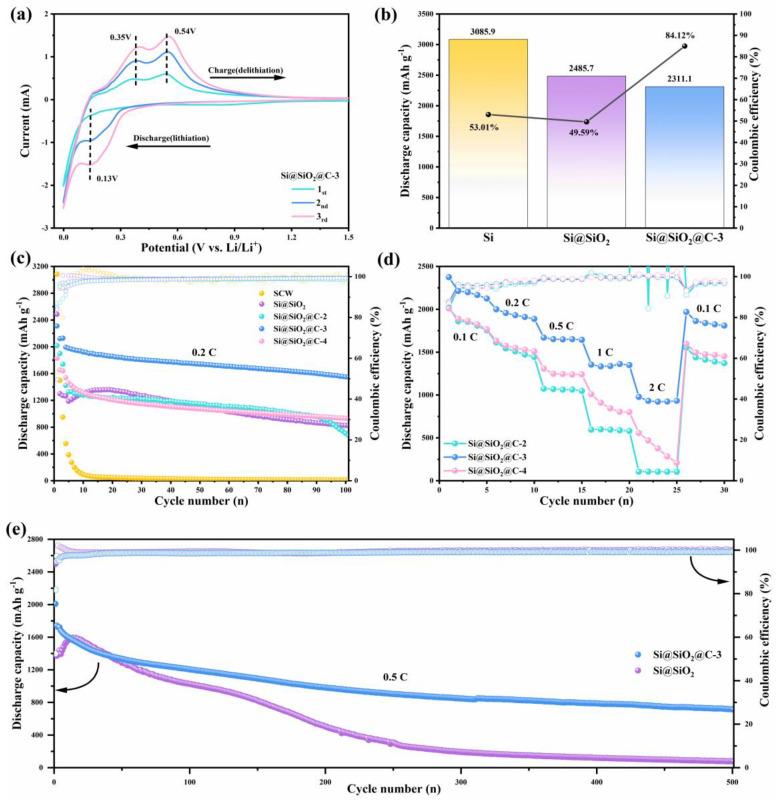

The rapid development of the photovoltaic industry has also brought some economic losses and environmental problems due to the waste generated during silicon ingot cutting. This study introduces an effective and facile method to reutilize silicon-cutting waste by constructing a multilayer Si@SiO@C composite for Li-ion batteries via two-step annealing. The double-layer structure of the resultant composite alleviates the severe volume changes of silicon effectively, and the surrounding slightly graphitic carbon, known for its high conductivity and mechanical strength, tightly envelops the silicon nanoflakes, facilitates ion and electron transport and maintains electrode structural integrity throughout repeated charge/discharge cycles. With an optimization of the carbon content, the initial coulombic efficiency (ICE) was improved from 53% to 84%. The refined Si@SiO@C anode exhibits outstanding cycling stability (711.4 mAh g after 500 cycles) and rate performance (973.5 mAh g at 2 C). This research presents a direct and cost-efficient strategy for transforming photovoltaic silicon-cutting waste into high-energy-density lithium-ion battery (LIB) anode materials.
光伏产业的快速发展也因硅锭切割过程中产生的废料带来了一些经济损失和环境问题。本研究介绍了一种有效且简便的方法,通过两步退火构建用于锂离子电池的多层Si@SiO@C复合材料,以重新利用硅切割废料。所得复合材料的双层结构有效缓解了硅的严重体积变化,周围略带石墨化的碳以其高导电性和机械强度而闻名,紧密包裹着硅纳米片,促进离子和电子传输,并在整个重复充放电循环中保持电极结构完整性。通过优化碳含量,初始库仑效率(ICE)从53%提高到了84%。精制的Si@SiO@C负极表现出出色的循环稳定性(500次循环后为711.4 mAh g)和倍率性能(在2 C下为973.5 mAh g)。本研究提出了一种直接且经济高效的策略,将光伏硅切割废料转化为高能量密度的锂离子电池(LIB)负极材料。
